| AW85GR(4LZ-2.8A) | |||

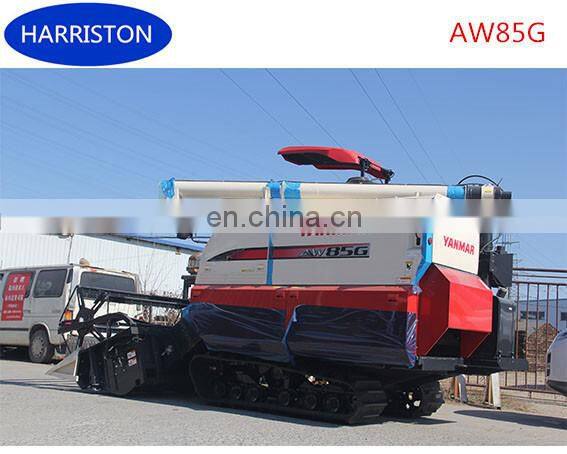

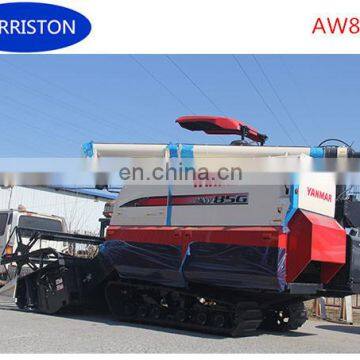

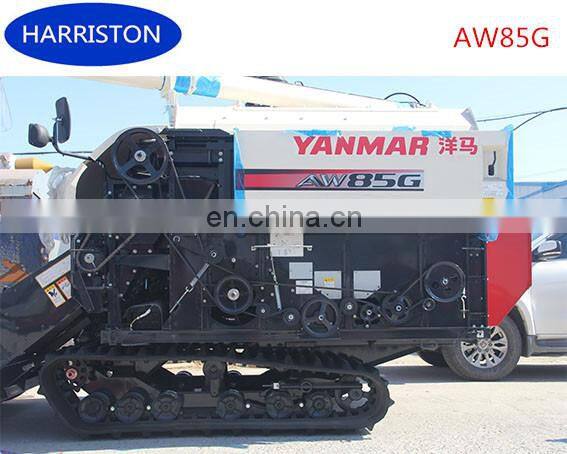

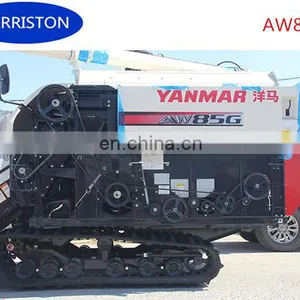

| Name | All fed rice and wheat combine harvesters | ||
| Model | AW85GR(4LZ-2.8A) | ||
| Receiving method | High dump | ||
| Size(mm) | length*width | 2.8 | |
| height | 2800 | ||
| Weight(kg) | 3255 | ||
| Engine | model | 4TNV98T-ZCNRCC | |
| power/speed(kw{ps}/r/mim) | 62.5(85)/2500 | ||
| fuel | diesel oil | ||
| Fuel tank capacity | 90 | ||
| Walking device | Crawler | Width*ground length(mm) | 500*2660(425*1660) |
| Center distance(mm) | 1235 | ||
| Variable speed * Number of stalls | |||
| Travel speed (m/s)(engine rated speed) | Low speed: 0-0.95 | ||
| Standard: 0-1.55 | |||
| High speed 0-1.91 | |||
| Minimum ground clearance(mm) | 277 | ||
| Cutting table | Spinning front end spacing / cutter width(mm) | 2060/1975 | |
| Wrapping wheel rotation diameter * width(mm) | 900 * 1920 | ||
| Threshing device | Type | Longitudinal axial flow + front roller | |
| Roller | Diameter * Length(mm) | 640*1850 | |
| Speed(r/min) | 570(19m/s) | ||
| Cleaning method | Vibration, blast, 2 times | ||
|
Threshing post - treatment device |
Large grain tank or granary capacity(L) | 1030 | |
| Grain height / length(mm) | 1830-4215 / 0-2680 | ||
| Unloading time | Less than 2 minutes and 25 seconds | ||
| Optional accessories | Grinder, under the knife, rape device | ||
| Alarm device | Water temperature, oil pressure, charge, 2 times alarm | ||
| Grain box alarm | |||
| Operating efficiency (theoretical) (mu / hour) | -8.4 | ||
Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:
1, all independent and non independent refrigeration unit sales, installation, training and customer service service for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;
2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
3, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
4, Cummings full range of engine accessories ‘sales and service, with the East, north, Kang Kang Kang, Xikang and Meikang models;
5, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;
6, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;
7, Russia MTZ, Romania UTB tractor’s full range of accessories sales;
8, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;
9,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
For more please contact me via Skype:0086-13961932335 Whatsapp:0086-13961932335
