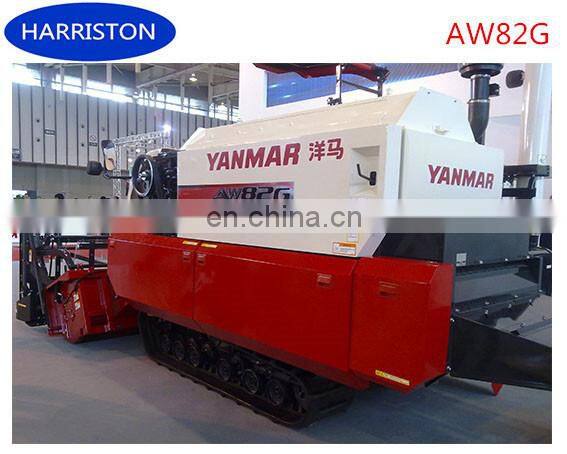

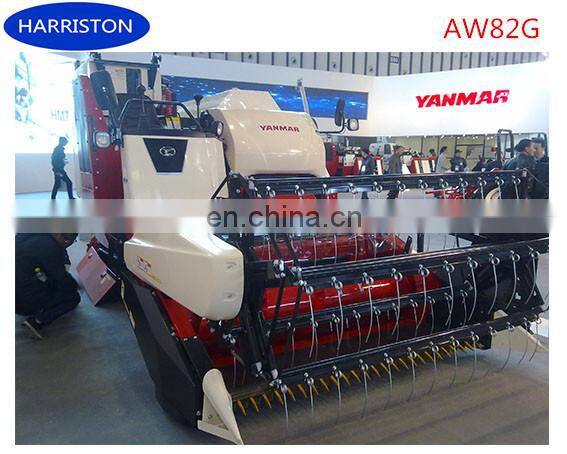

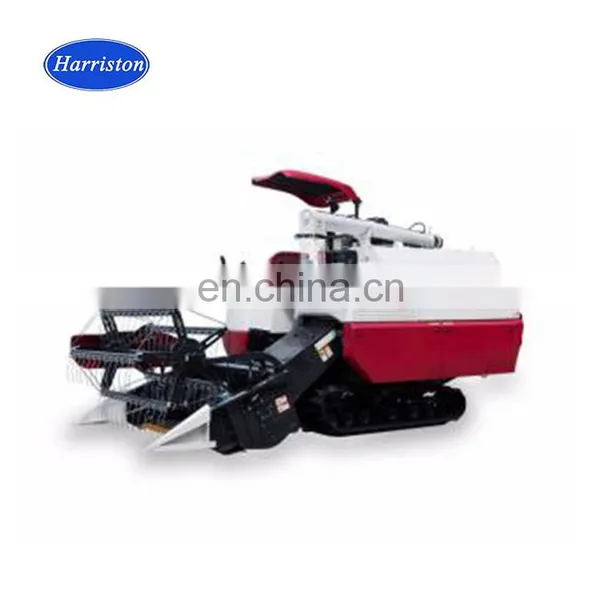

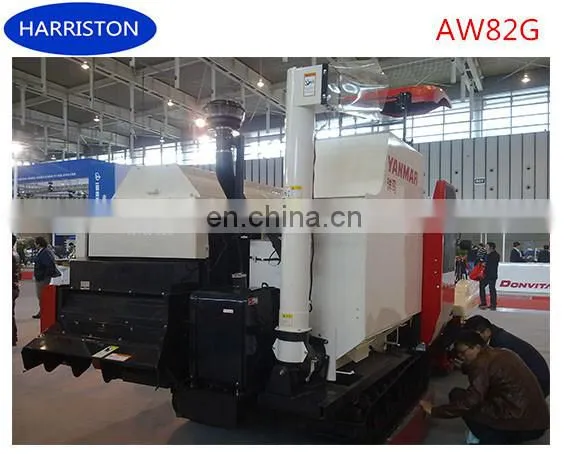

| SPECIFICATION OF YANMAR AW82G HARVESTER | |||||
| MODEL | AW82G | ||||
| Dimension | Overall length(mm) | 5040 | |||
| Overall width(mm) | 2285 | ||||
| Overall height(mm) | 2765 | ||||
| Weight (kg) | 2935 | ||||
| Engine | Model | 4TNV98T | |||
| Pattern | Vertical 4 cylinder 4 stroke water-cooled direct injection turbo diesle | ||||
| rated output/speed(ps[kw]/rpm) | 82[60.3]/2400 | ||||
| Burnt oil | 0#diesel | ||||
| Fuel tank capacity(L) | 60 | ||||
| Storage battery(V.Ah) | 12.52 | ||||
| Travel unit | track width*contact length(mm) | 425×1660 | |||
| transmission mode | Hytrostatic stepless change[HST] | ||||
| Speed grade | Stepless vice-speed 3files | ||||
| Running speed | Advance (m/s) | Low speed:0~0.95 cruising speed:0~1.55 high speed:0~1.91 | |||
| turning way | Brake change | ||||
Harvest unit | Fu wo method | Fu wo machine | |||
| Fu wo machine | rotation diameter* width(mm) | 900×1920 | |||
| transmission mode | Constant speed | ||||
up and down adjustment | hytraulic | ||||
| Harvesting width(mm) | 2060 | ||||
| cutter width(mm) | 1905 | ||||
| Harvest height(mm) | More than 40[tip cutter] | ||||
Threshing unit | Threshing system | Axial flow type threshing gear | |||
| Threshing cylinder | Diameter*width(mm) | 640×1850 | |||
| Concavity net area(4)(m2) | 1.621 | ||||
cereal discharge
unit | cereal collection tank | capacity(L) | 1030 | ||
cereal ejection port number(piece) | 2 | ||||
| Ejection method | In bag | ||||
| Suitable crops | Rice wheat rape | ||||
| Operational efficiency (a unit of area/ hour) | 8.4 | ||||
Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:
1, all independent and non independent refrigeration unit sales, installation, training and customer service service for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;
2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
3, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
4, Cummings full range of engine accessories ‘sales and service, with the East, north, Kang Kang Kang, Xikang and Meikang models;
5, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;
6, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;
7, Russia MTZ, Romania UTB tractor’s full range of accessories sales;
8, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;
9,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
For more please contact me via Skype:0086-13961932335 Whatsapp:0086-13961932335
