Professional manufacturer Festoon cable system conductor bar crane trolley
| Type | C32*30*1.5 | C40*40*2.0 | C63*63*4.0 | C30*28*1.5 |
| Cat-No. | 32001 | 4001 | 63001 | 30001 |
| Material | Glavanized steel | |||
| Weight (kg/m) | 1.19 | 2.0 | 5.98 | 1.03 |
| A | 32 | 40 | 63 | 30 |
| B | 30 | 40 | 63 | 28 |
| C | 12 | 13 | 18 | 10 |
| D | 1.5 | 2.0 | 4.0 | 1.5 |
2.Towing trolley & End trolley
| Type | C32SC-75/C32SC-70 | C32EC-75/C32EC-70 |
| Wheels |
Ball bearings, hardened, galvanized Temperature resistance : -30 degree to +125 degree Travelling speed:ca.160m/min |
|
| Material |
Carrier body: Galvanized steel Support saddle: Galvanized steel or ABS Bumper :Neoprene Hardware : Galvanized steel Temperature : -30 degree to +100 degree |
|
| Maz Cable Load | Max 25kg per carrier | Max 25 kg per carrier |
| Weight(kg) | 0.31/0.59 | 0.39/0.32 |
| Cat-No. | 41001/411003 | 411201/411205 |

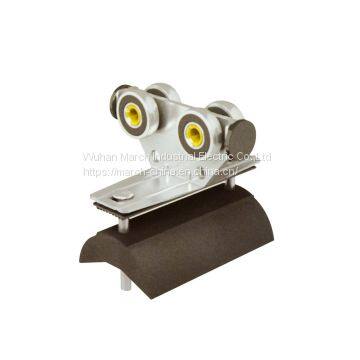

3.Middle trolley
| Type | C32MC-75 | C32MC-70 |
| Wheels |
Ball bearings, hardened, galvanized Temperature resistance : -30 degree to +125 degree Travelling speed:ca.160m/min |
|
| Material |
Carrier body: Galvanized steel Support saddle: Galvanized steel or ABS Dowel:Brass Hardware : Galvanized steel Temperature : -30 degree to +100 degree |
|
| Max cable load | Max 30kg per carrier | MAX 22kg per carrier |
| Weight(kg) | 0.415 kg | 0.295 kg |
| Cat-No. | 421001 | 421005 |
4.Hanger
| Type | Weight(kg) | Materical | Part No. |
| C32DJ-1 | 0.218 | Glvanized steel | 321001 |
| C32DJ-2 | 0.223 | 321002 | |
| C32DJ-5 | 0.196 | 321003 |
5.Joint clamp
| Type | Weight(kg) | Materical | Parts No |
| C32JT-1 | 0.284 | Galvanized steel | 321004 |
| C32JT-2 | 0.265 | 321005 | |
| C32JT-3 | 0.46 | 321105 |
Payment : T/T, L/C, paypal
Packing :Wooden case or carton
Delivery time: 7-15 days after confirm the order
Application project ---Feedback from Customer
They are Widely used in :
Automobile Manufacturing, Coking, Metallurgy, Hoisting Machinery, Automated production lines , Automatic, Storage system, Port, Air port, Shipbuilding, Power Generation, Petrochemical industry, papermaking, Rapid rail transit system , play ground and many other areas.
