March High Temperature Steel Copperhead Conductor Bars System for Overhead Crane

March High Temperature Steel Copperhead Conductor Bars System for Overhead Crane photo-1
March High Temperature Steel Copperhead Conductor Bars System for Overhead Crane photo-2
March High Temperature Steel Copperhead Conductor Bars System for Overhead Crane photo-3
March High Temperature Steel Copperhead Conductor Bars System for Overhead Crane photo-4
March High Temperature Steel Copperhead Conductor Bars System for Overhead Crane photo-5
US$ 28 - 38 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
March
Place of Origin:
China
Model Number:
MHS
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan,shanghai,shenzhen,guangzhou
Delivery Detail:
10 days
Brand Name March
Place of Origin China
Model Number MHS

March high temperature steel copperhead conductor bars system for overhead crane

Product Details
March high temperature aluminum conductor bars system for overhead crane

1.Rated Current: 1200/1350/1600/2000/2300/2600/300A
2.Quick and Easy Assembly
3.High Strength Copper Head
4.Reliable Operation in High Temperature,Dust and Corrosive Atmosphere

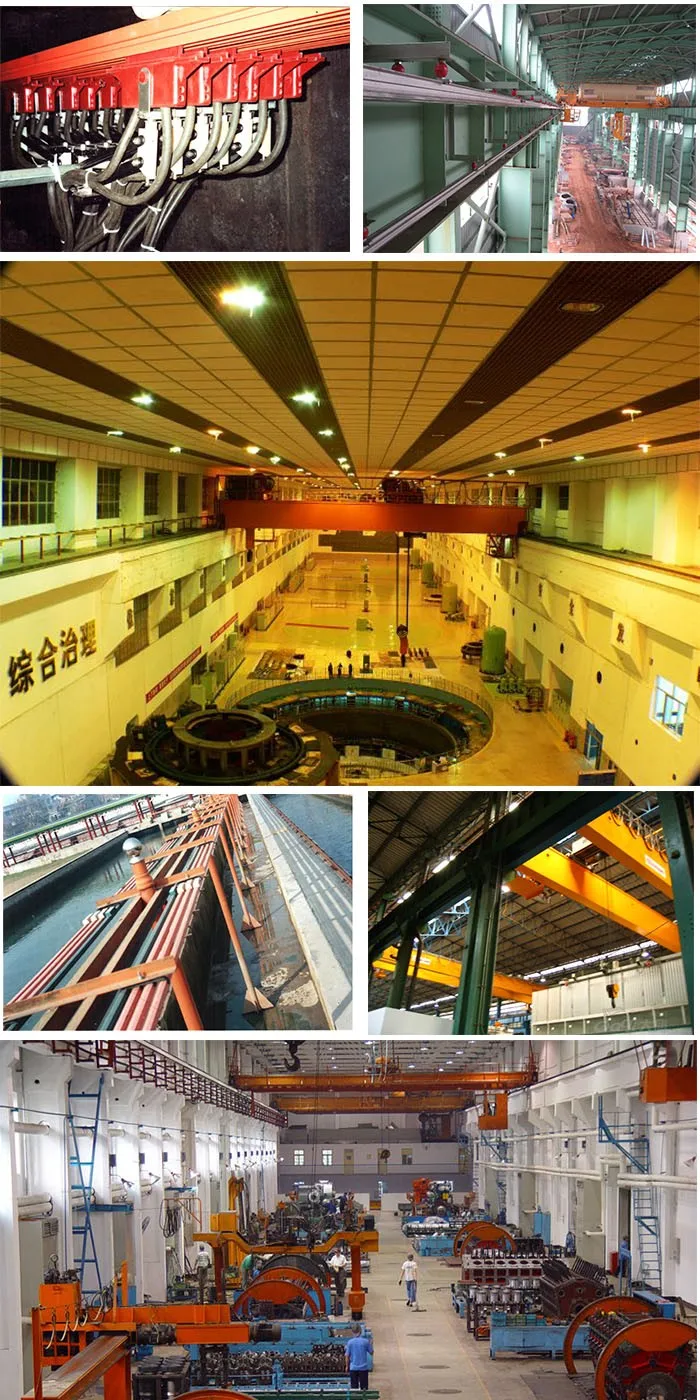

Applications:
1.Industrial Plants,Power Plants
2.Steel Mills
3.Warehouses

Product Introduction
Product Parameters
Type
Copper cross section (mm2)
Steel cross section (mm2)
Equivalent Copper (mm2)
Height (mm)
Copperhead Width (mm)
steel Width (mm)
Weight kg/m
Max Continuous
MHS-14/200A-FE
14
152
38
31
6.5
20
1.25
200
MHS-25/320A-FE
25
152
49
33
8
20
1.35
320
MHS-30/400A-FE
30
152
52
34
10
20
1.56
400
MHS-50/500A-FE
50
266
88
43.1
14.6
35
3.2
710004
MHS-400/630A-FE
100
266
138
46
15.3
35
3.66
710005
MHS-150/700A-FE
150
266
188
48.3
17.3
35
4.12
710006
MHS-200/800A-FE
200
266
238
50.8
17.3
35
4.5
710007
MHS-300/1000A-FE
300
266
338
56.3
17.3
35
5.46
710005
