Product Description

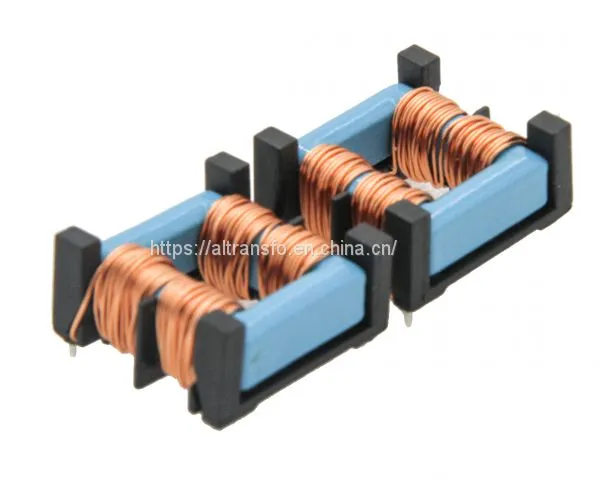

Flat wire common mode inductor electrical characteristics:
Magnetic core specifications: 1415 super; thin skeleton.
Using square closed magnetic core, the coaxial wire is automatically wound.
Rating voltage: AC / DC 250V.
Insulation withstand voltage: AC1.5kV 60sec.
Operating temperature range: -25°C to + 125°C
Storage temperature range:-25ºC to +100ºC
Power range: 60-150W
Electrical characteristics:(at 25ºC) | |||||
Model | Inductance(mH) | Wire diameter | DC Resistance(mΩ) | Corresponding circle wire diameter | Working current(A) |
1415-28.0mH | 28.0 min | 0.10*1.0-58Ts REF | 320 Max | 0.352 | 1.0-1.5A |
1415-18.0mH | 18.0 min | 0.13*1.0- 48Ts REF | 240 Max | 0.401 | 1.5-2.0A |
1415-14.0mH | 14.0min | 0.15*1.0- 44Ts REF | 200Max | 0.430 | 1.8-2.2A |
1415-12.0mH | 12.0 min | 0.15*1.5- 40Ts REF | 160 Max | 0.529 | 2.0-2.8A |
1415-10.0mH | 10.0min | 0.2*1.0-35Ts REF | 140 Max | 0.493 | 2.0-2.5A |
1415-8.0mH | 8.0min | 0.2*1.5-32Ts REF | 70 Max | 0.609 | 2.5-3A |
Inductance test frequency: 1 KHZ 0.25V
AL TRANSFO could design and produce according to customer requirements !
Packaging & Shipping
Our Services
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer with over 27 years of manufacturering experience.
Q2: What kind of products do you produce?
A: We have abundant strength which integrates design, production, selling of transformer, inductor, filter, etc.
Q3: Can you accept to use our logo?
A: Yes, We accept OEM and ODM production.
Q4: Can you provide free samples?
A: Yes, we can provide free samples, Exact Qty can be negotiable.
