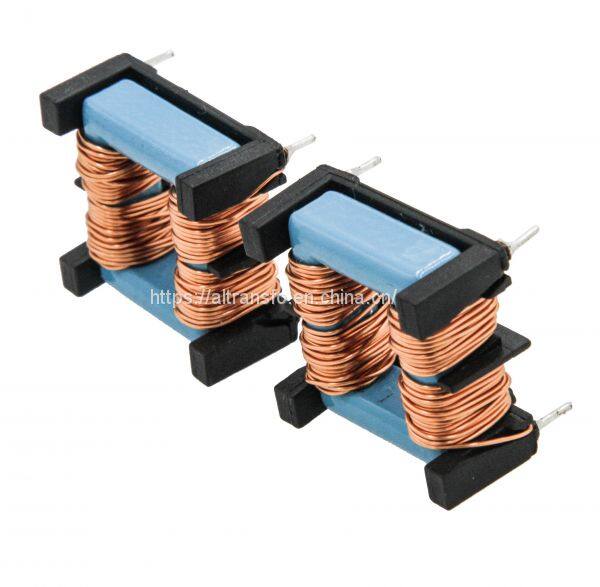

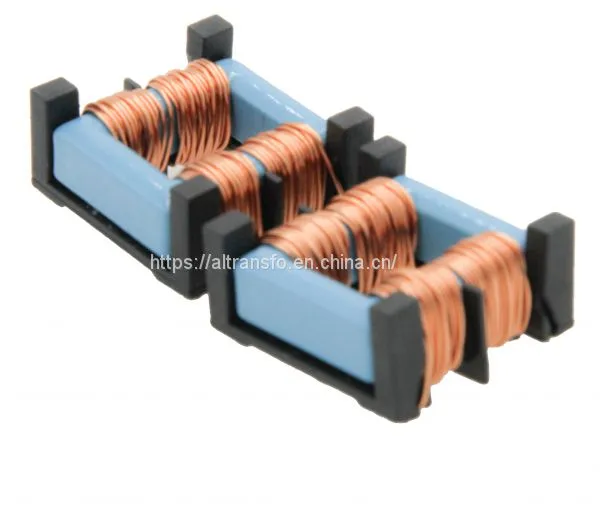

Help CenterCommon Mode Choke Flat Copper 14mH 18mH 28mH Flat Wire Inductor
Related Products
-
UL Approved Vertical Magnetic Common Mode ChokeUS$ 0.10 - 1.98MOQ: 100 Pieces -
Horizontal Flat Electronic Choke With UL ApprovedUS$ 0.10 - 1.98MOQ: 100 Pieces
-
Quality Guarantee UU9.8 Common Mode Inductor for LightingUS$ 0.10 - 1.98MOQ: 100 Pieces
-
UU Common Mode Choke Power Inductors AC FilterUS$ 0.10 - 1.98MOQ: 100 Pieces
-
Factory Customized High Quality Inductor Coil Filter InductorUS$ 0.10 - 1.98MOQ: 100 Pieces
Product Description
Flat wire common mode inductor electrical characteristics:
Magnetic core specifications: 1415 super; thin skeleton.
Using square closed magnetic core, the coaxial wire is automatically wound.
Rating voltage: AC / DC 250V.
Insulation withstand voltage: AC1.5kV 60sec.
Operating temperature range: -25°C to + 125°C
Storage temperature range:-25ºC to +100ºC
Power range: 60-150W
Electrical characteristics:(at 25ºC) |
|||||
Model |
Inductance(mH) |
Wire diameter |
DC Resistance(mΩ) |
Corresponding circle wire diameter |
Working current(A) |
1415-28.0mH |
28.0 min |
0.10*1.0-58Ts REF |
320 Max |
0.352 |
1.0-1.5A |
1415-18.0mH |
18.0 min |
0.13*1.0- 48Ts REF |
240 Max |
0.401 |
1.5-2.0A |
1415-14.0mH |
14.0min |
0.15*1.0- 44Ts REF |
200Max |
0.430 |
1.8-2.2A |
1415-12.0mH |
12.0 min |
0.15*1.5- 40Ts REF |
160 Max |
0.529 |
2.0-2.8A |
1415-10.0mH |
10.0min |
0.2*1.0-35Ts REF |
140 Max |
0.493 |
2.0-2.5A |
1415-8.0mH |
8.0min |
0.2*1.5-32Ts REF |
70 Max |
0.609 |
2.5-3A |
Inductance test frequency: 1 KHZ 0.25V
AL TRANSFO could design and produce according to customer requirements !
