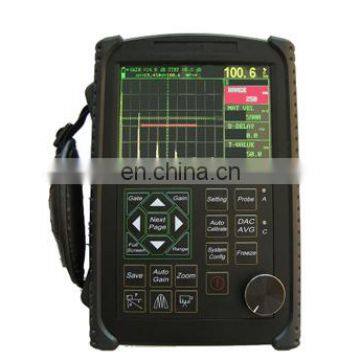

2016 Hot HST650 Flaw Detector/Ultrasonic Equipment for Testing Welds

2016 Hot HST650 Flaw Detector/Ultrasonic Equipment for Testing Welds thumbnail-1
2016 Hot HST650 Flaw Detector/Ultrasonic Equipment for Testing Welds thumbnail-2
2016 Hot HST650 Flaw Detector/Ultrasonic Equipment for Testing Welds photo-1
2016 Hot HST650 Flaw Detector/Ultrasonic Equipment for Testing Welds photo-2
US$ 1,800 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST
Place of Origin:
Shandong, China
Model Number:
HST650
Contact Supplier Request Quote Chat Now
Jinan Hensgrand Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HST
Place of Origin Shandong, China
Model Number HST650

HST650  Ultrasonic Flaw Testing Equipment



♦Automated calibration,Automated gain



♦DAC,AVG,TCG,B scan,AWS



♦High-speed capture and very low noise



♦high contrast viewing of the waveform from bright



♦Powerful pc software and reports can be export to excel



Features

  • Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,Φ);
  • Automated switch three staff gauge ((Depth d,level p,distance s);
  • Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
  • Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
  • 6dB DAC functions;
  • Standards of test for DAC is saved.
  • 500 independence setup, any criterion can be input freely, we can work in the scene without test block;
  • Big memory of 1000 A graph
  • Automated gain and gain scan;
  • Peak Hold and Peak Memory;
  • B scan;
  • AWS D1.1
  • Automated make video of test process and play; use upan,the length of video is unlimited.
  • Powerful pc software and reports can be export to excel;
  • Li battery, continue working time up to 10 hours;
  • The embeded software can be online updated;

Other assistant function

  • Display freeze;
  • Automated echo degree;
  • Angles and K-value;
  • Lock and unlock function of system parameters;
  • Electronic clock calendar ;
  • Two gates setting and alarm indication;
  • Gate and DAC alarm;

Specifications



Title

Parameter

Title

Parameter

Measuring Range(mm)

0 ~ 10000

Measurement Mode

Single,Dual,Thru

Vertical Linearity Error

≤3%

Reject

0~80%

Horizontal Linearity Error

≤0.1%

Pulse Displacement(μs)

-20 ~ +3400

Sensitivity Leavings

≥62dB

Zero(μs)

0.0 ~ 99.99

Dynamic range

≥34dB

Port Type

BNC(Q9)

Resolving Power

≥36dB

Operating Temperature (°C)

-20~50

Frequency Range(MHz)

0.5 ~ 20

HxWxD(mm)

240x156x50

Gain(dB)

0 ~ 120

Weight(kg)

1.0(with battery)

Material Velocity(m/s)

1000 ~ 15000

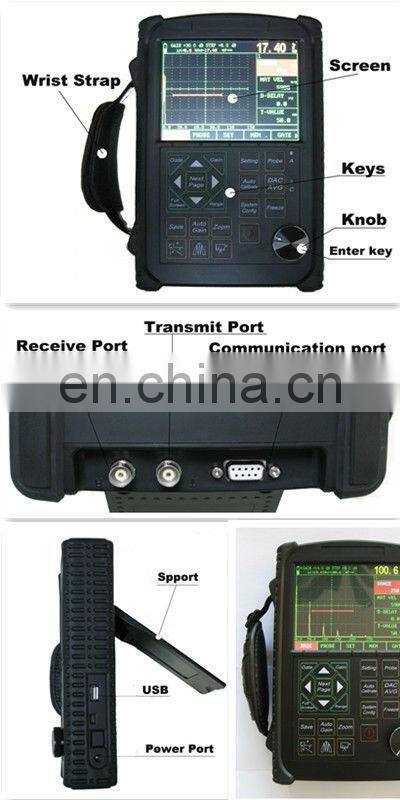

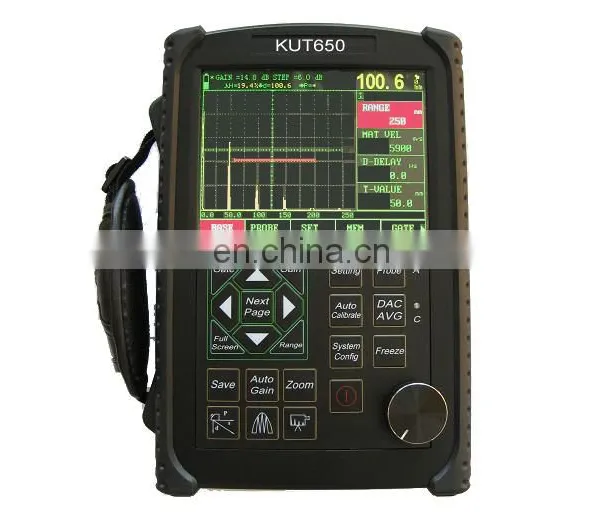

HST650 Ultrasonic Flaw Detector/metal flaw detector

CE

2016 Hot HST650 Flaw Detector/Ultrasonic Equipment for testing welds
