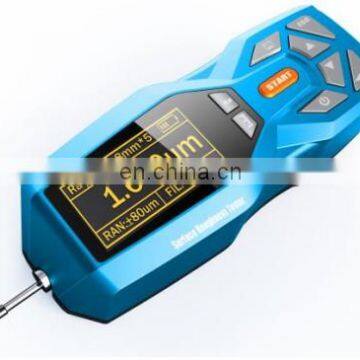

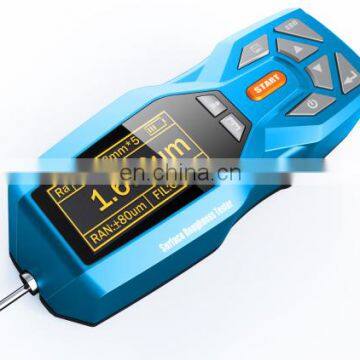

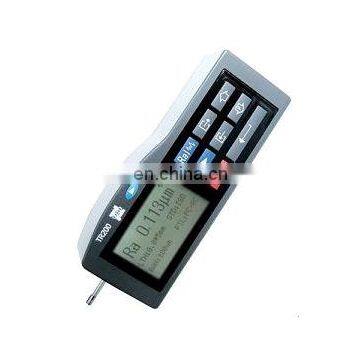

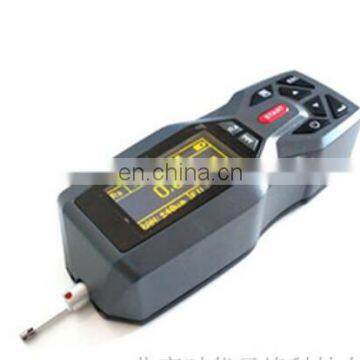

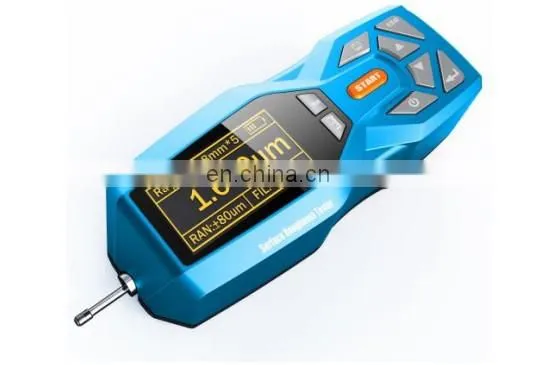

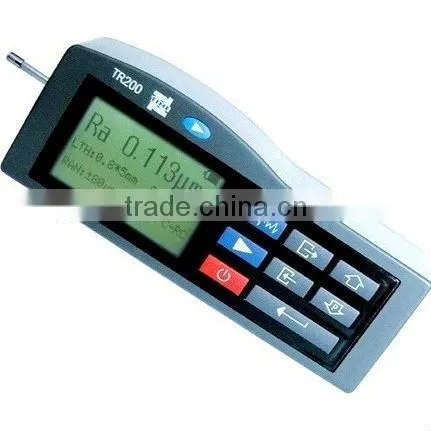

TR200 Surface Roughness Tester
Features
- Hand-held & advanced model
- Applicable in production site, laboratory and workshop in factory.
- Easy operation menu and large LCD display with backlight.
- Li rechargeable battery.
- Pickup position indicator.
- Conform to ISO standard, compatible with DIN, ANSI and JIS standard.
- Advanced software for TR200 and TR220 is available.
- Lots of delicate optional accessories are supplied making user’s measurement more efficient and much easier.
Specifications
|
TR200 |
TR210 |
TR220 |
Roughness parameters |
Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, |
Ra, Rz, Ry, Rq |
Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2 |
Assessed profiles |
Roughness profile (R) |
||
Primary profile (P) |
|
Primary profile (P) |
|
Unit |
mm, inch |
||
Display resolution |
0.01 μ m |
||
Data output |
RS232 |
||
Measuring Range |
Ra: 0.025~12.5μ m |
||
Cutoff length (L) |
0.25mm / 0.8mm / 2.5mm/Auto |
||
Evaluation length |
1~5L (selectable) |
5L (selectable) |
1~5L (selectable) |
Tracing length |
(1~5)L + 2L (selectable) |
5L + 2 L |
( 1~5)L + 2 L (selectable) |
Digital filter |
RC, PC-RC, Gauss, D-P |
||
Max. driving length |
17.5mm/0.71inch |
||
Min. driving length |
1.3mm/0.051inch |
1.8mm/0.071 |
1.3mm/0.051inch |
Pick-up |
Standard pickup TS100, inductive, Diamond stylus radius 5μm, angle of stylus 90° |
||
Accuracy |
≤±10% |
||
Repeatability |
<6% |
||
Power |
Li-ion battery rechargeable |
||
Dimensions |
141mm×56mm ×48mm |
||
Weight |
480g |
440g |
|
