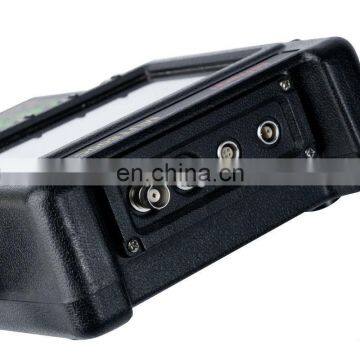

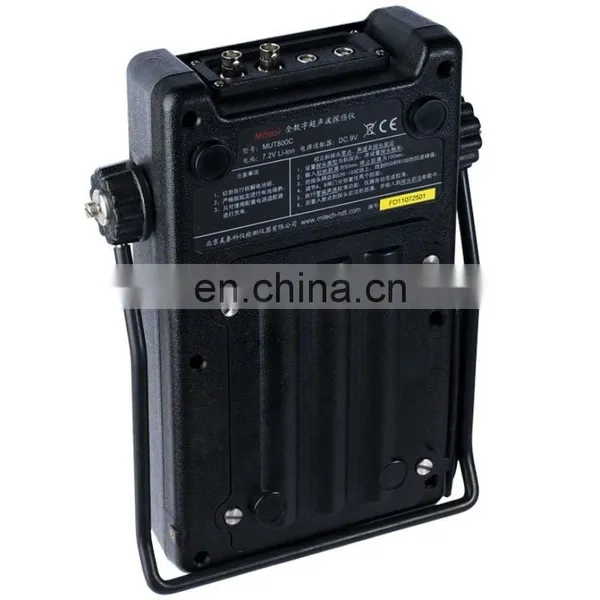

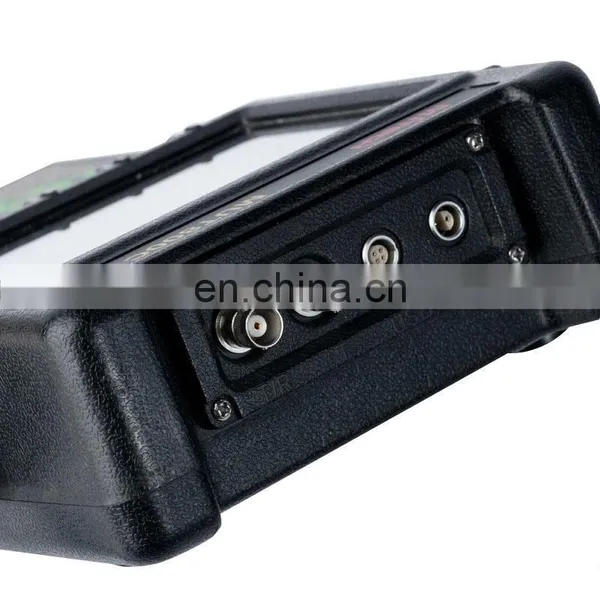

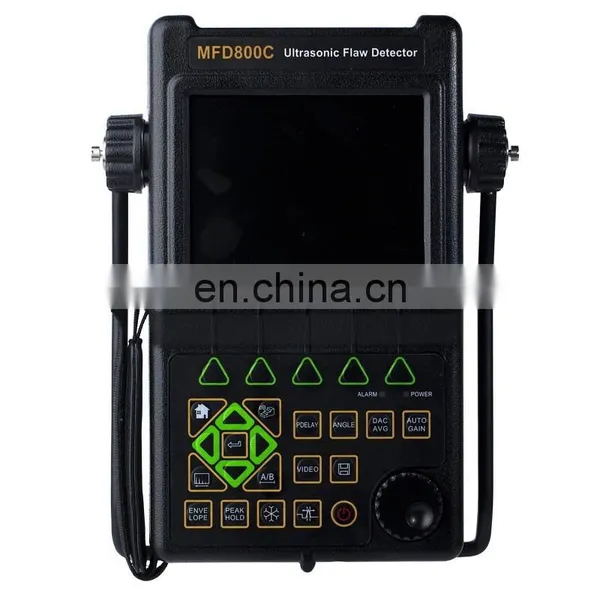

HST800 low noise Digital Portable Automatic Ultrasonic Flaw Detector
Key Feature :
1. The two hole test method: automatic calibration value K, frontier, zero, material velocity;
2. 100 independent detection channels, free storage, playback 300 A sweep waveform and data (can be expanded according to the needs of users);
3. DAC, AVG curves and can be sectioned, sampling point is not restricted, and can make correction and compensation;
4. Automatic recording inspection process, and can be dynamic playback;
5. Oblique angle probe (K) automatic calculation;
6. Two detection methods: peak, edge;
7. Three kinds of probe mode: single, double, penetration;
8. High sampling rate, low noise;
9. Echo frequency analysis.
10. Five-range repetition frequency settings
Auxiliary function :
1. Automatic gain, echo envelope, peak memory function to improve the detection efficiency;
2. Automatic display of the defect echo location (Depth-d, level-p, distance-s, amplitude-H);
3. Free switching of three scales (Depth-d, level-p, distance-s,);
4. Angle and the K value of two input methods;
5. Gate alarm;
6. In both Chinese and English operation interface.
Characteristics of the instrument :
1. Communication with the computer, the realization of computer data management;
2. Can export Excel format, A4 paper inspection report;
3. Can be upgraded instrumentation system using the PC end of the communication software;
4. High performance environmental safety of lithium battery can work continuously 10 hours;
5. IP65 standard aluminum magnesium alloy shell, durable, waterproof and dustproof, anti-interference ability is excellent;
6. Large screen super bright display, adjustable brightness, suitable for light, weak light environment;
7. Fast knob adjustment, convenient operation.
Technical parameter :
Title |
Technical Data |
The scanning range (mm): |
0~10000 |
Horizontal linear error |
≤ 0.1% |
Vertical linearity error: |
≤ 3%; |
Flaw detection sensitivity: |
≥ 62dB (deep 200mm φ 2 flat-bottomed |
Dynamic range: |
≥ 32dB |
Resolution: |
≥ 40dB |
Frequency range: |
0.5 ~ 20 (MHz) |
Gain control (dB): |
0~130 |
Material velocity:(m/s) |
100 ~ 20000 |
Echo suppression: |
0 ~ 80% |
Working temperature: (°C) |
-27 ~ 70 |
Dimensions: (mm) |
225*170*50 |
Weight (Kg): |
1.8 |

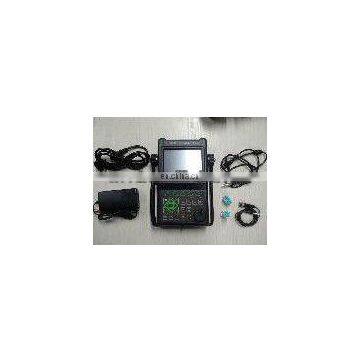

Standard Configuration :
List of standard configurations :
Designation |
Quantity |
Main unit |
1 |
1.5A/9V power adapter |
1 |
probe connecting cable |
2 |
Carrying case |
1 |
Instruction manual |
1 |
Straight probe |
10mm 4MHz (One) |
Angle probe |
8×9 60°4MHz (One) |
Communication software for PC |
1 set |
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
