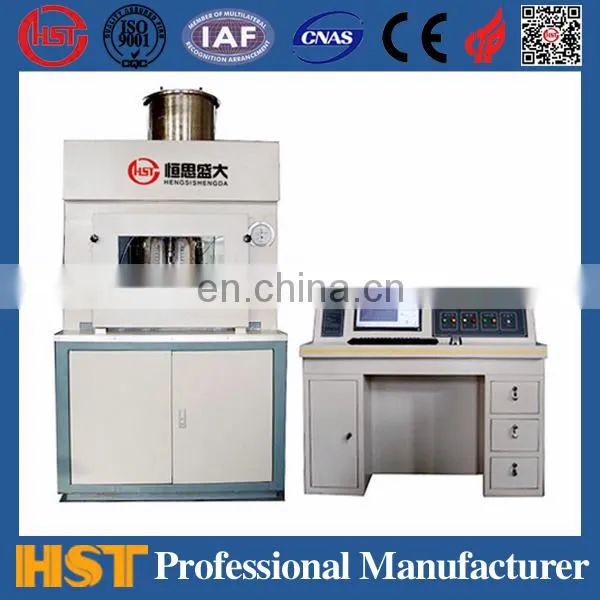

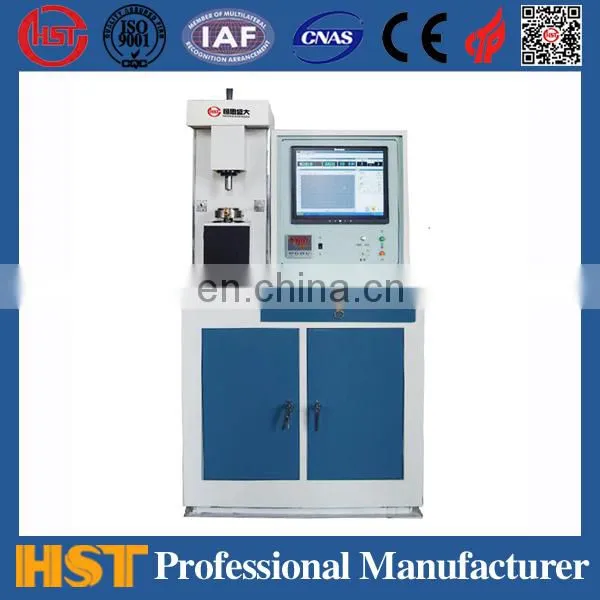

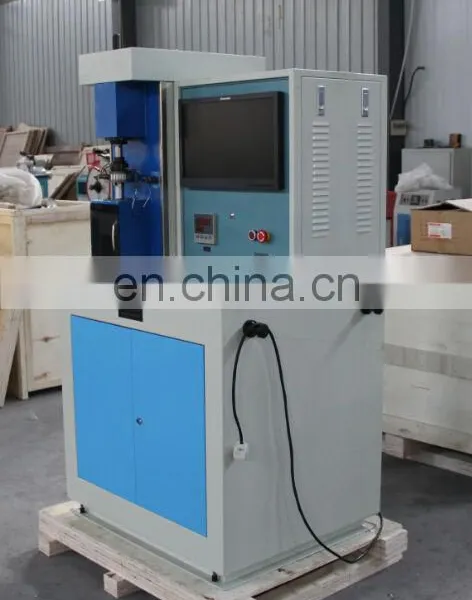

MRH-3 friction testing machine for lab report test
Application:
This machine is mainly applied for simulating evaluation for kinds of lubricant, grease’s extreme compression capacity and anti-confusion capacity. It can also be used for performance study of anti-friction capacity of aviation kerosene and capacities of all sorts of paint coating, metal and non-metal materials.
Standards:
This machine conforms to ASTM D 2782 Standard Test Method for Measurement of Extreme-Pressure Properties of Lubricating Fluids (Timken Method) and ASTM G77 Standard Test Method for Ranking Resistance of Materials to Sliding Wear Using Block-on Ring Wear Test
Technical specifications:
Specification |
MRH-3 |
|
Max. test force |
3000 N |
|
Friction accuracy |
±2% |
|
Spindle speed range |
100-2000r/min(5000r/min)r/min |
|
Speed Control Accuracy |
±10r/min |
|
Test time control range |
10~9999s(min) |
|
Staff gauge scale |
1.5n/100mm |
|
Temperature range of test oil |
Room temperature~100°C |
|
Test force speed |
8.92~13.33 |
|
Standard testing ring’s dimension(mm) |
Φ49.22x13.06 |
|
Standard testing block’s dimension(mm) |
12.32x19.05 |
|
|
Overall dimension (L*W*H) |
Mainframe |
1300mm×700mm×1340mm |
Inflicting force installation |
460x460x900mm |
|
Net weight of load frame |
800kg |
|
Test force control mode |
Stepping motor closed-loop control applied test force |
|
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
Dear cutomer , if you are intrested in our testing machine. Please contact us without any hesitate. We will always provide our best services and prices to you.
