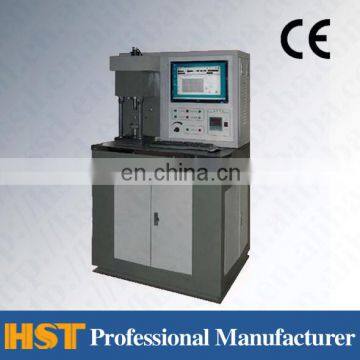

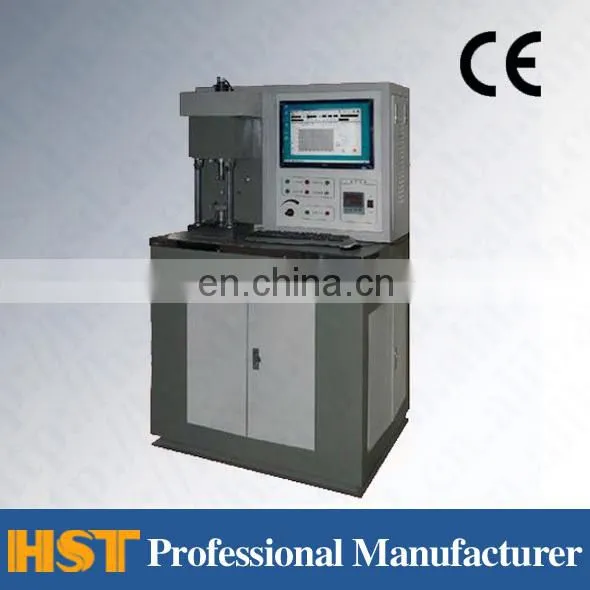

MRS-10A computer control four ball friction testing machine
1. Function
MRS-10A computer control four ball friction testing machine, in the form of slide friction, is used for the loading capacity evaluation of lubricants in the high pressure point contact condition. It can test the maximum nonseizure load PB, sintered load PD and composite wear value ZMZ of lubricants. It can record frictional force and temperature curves. It also can measure the dimension of the wear scar and display the wear scar on the PC screen.
2. Technical parameters
Model | MRA-10A |
Range of test force | 60N-10KN |
Accuracy of testing force display | ±1% |
Accuracy of testing force display for a long time | ±1%F.S |
Range of testing force | 0~300N |
Accuracy of testing force | ±3% |
Range of spindle speed | 200~2000r/min |
Accuracy of spindle speed | ±5 r/min |
Temperature control range | Room temperature ~150°C |
Accuracy of temperature control | ±2°C |
Range of test time | 1s~999h |
Diameter of steel ball for test | φ12.7mm |
Dimension | 1200*870*1700mm |
Weight | 800kg |
3.Warranty
Our company supply MRS-10A computer control four ball friction testing machine. The main products contain more than 10 series, 80 kinds of testing equipments. If you need testing machine or other parts of testing machine, please feel free to contact me and tell me your requirements.
