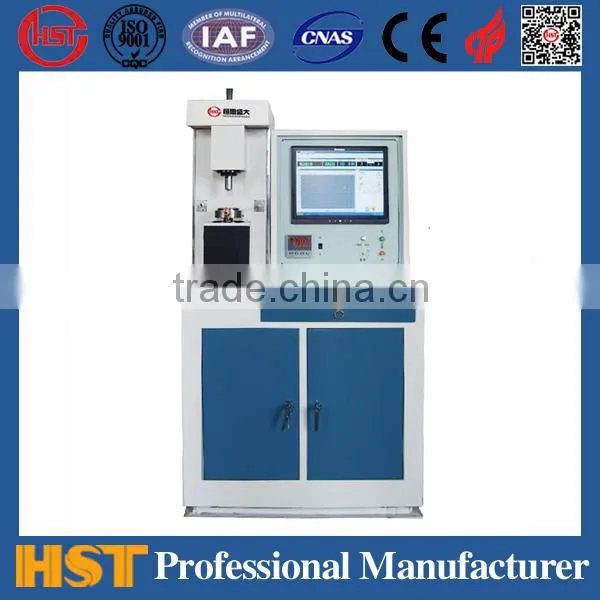

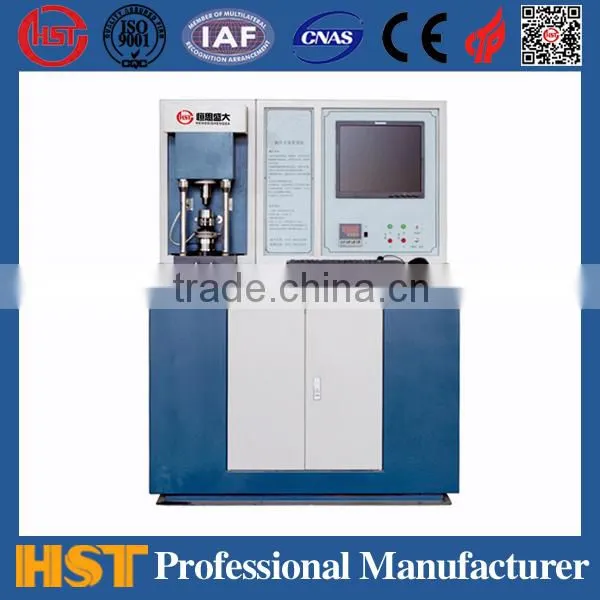

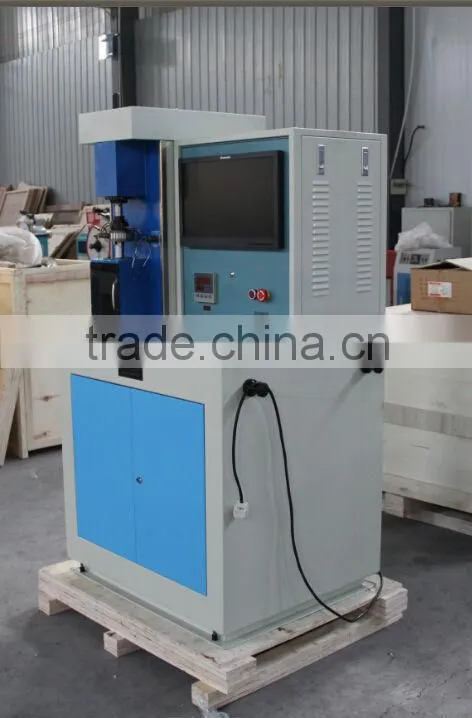

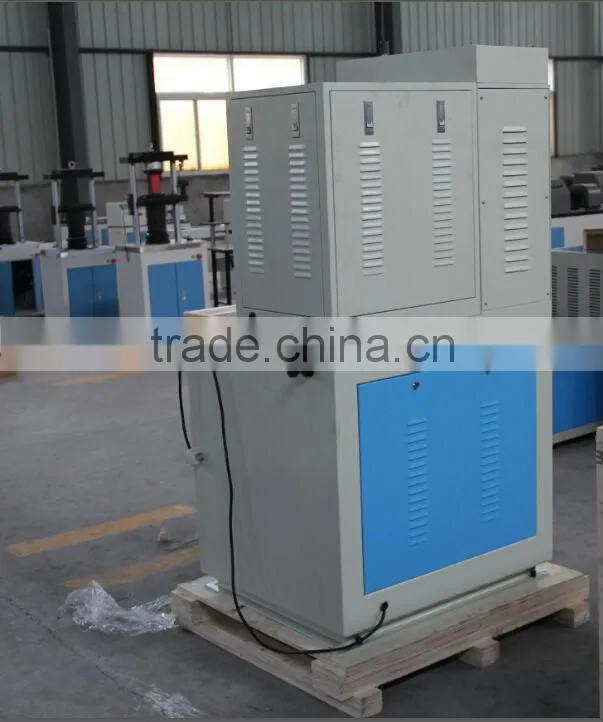

MMW-1A Computer Control Universal Friction and Wear Testing Machine
Friction and Wear Testing Machine
Application:
The machine can simulate rolling, sliding and rolling & sliding combined movement under the certain contact
pressure to complete point, line and plane simulating tests. It can be used to evaluate the friction and wear
performance of lubricant, metal, plastics, coating, rubber, ceramics etc. It can not only satisfy the needs of
traditional petrochemical industry to research,develop and inspect the various kinds o
f intermediate & high grade hydraulic oil, combustion engine oil and gear oil, but also
can simulate evaluation to new material development and new technology research
under dry condition.
Features:
The machine adopts process control principle, and combines industrial control
computer with the configuration software technology and internet technology;
Apply incorporate structure design, integrate embedded industry computer,
configuration software, acquisition module and executor as a whole to control the test process, all test
operations can be completed at the main interface of the computer; It features flexible configuration control
mode, multiple friction couplings, wide speed adjusting range, simulating high temperature circumstances,
and high automation.
Specifications:
| Model | MMW-1A |
| Load range(N) | 10-1000(stepless) |
| Relative erroe of load indicating value(%) | ±1 |
| Friction torque measuring range(N.m) | 2.5 |
| Relative error of friction torque indicating(%) | ±2 |
| Rotate speed range of spindle(r/min) | 1-2000r/min,linear velocity up to over 4 m/s |
| When use decelerating device:0.05-20 | |
| Test medium | oil,water,slurry,abrasive etc |
| Temperature control range(°c) | Room temperature 200 |
| Max. distance between spindle of the machine and lower friction coupling pate(mm) | >75 |
| Time control range | 10s-9999min |
| Computer & data processing range | Apply industrial control computer and configuration software to control the machine and test process, display different parameters real time, record in friction-time curve and temperature-time curve automatically. Control: load, time, temperature, test duration. Curves: Temperature-Time, Friction-torque and Time etc. Data can be printed by Excel. |
| Power | 220V, 50Hz |
| Dimension(mm) | 900x760x1600 |
| Weight(kg) | 800 |
Friction and Wear Testing Machine
1. What about your delivery time?
A: We have skilled workers and professional work division for assembly and checkout. Usually, our delivery
time is 7~14days.
2. What about the transportation?
A: We have stable forwarding agent for Air transportation and Sea transportation. And also express delivery
of TNT, DHL.
3. What about your packaging?
A: Digital material universal testing machine packed with export standard wooden box.
Friction and Wear Testing Machine
After-sales service commitment
Warranty
The testing machine is guaranteed for a year by Jinan Kason Testing Co., LTD and has whole-life service
(including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely
welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance services
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and
support, there will be enjoyable and long-term friendly cooperation.
