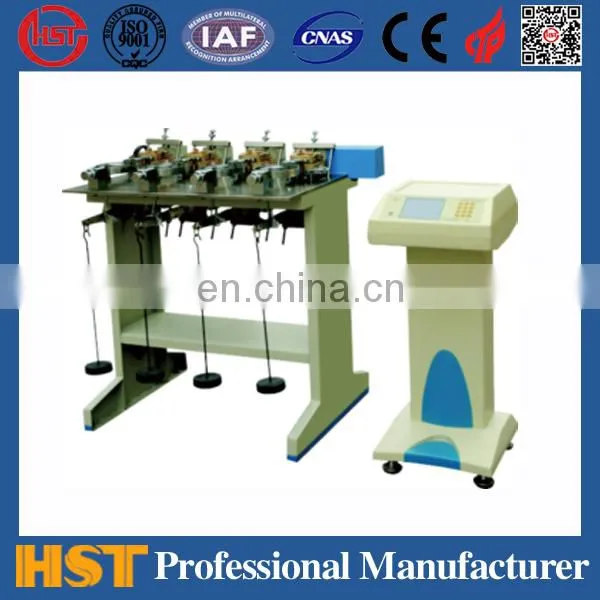

Soil Shear Strength Testing Machine Automatic direct shear
Application:
This apparatus is used to test resisting shear strength of soil specimen.
It usually adopts four specimens under the different vertical pressure
exerted on the specimens to obtain shear stress when the specimen is
destroyed.
Specification:
1. Area of soil sample:30cm2
2. Lever ratio:1:12
3. Vertical Loading: 50,100,200,300,400(Kpa)
4. Max. horizontal loading: 1.2KN
5. Shear rate: 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01mm/min
6. 4 specimens in the same test
7. Working voltage: AC220V
8. Measurement: 1160x900x1160mm(main frame),
500x500x1020mm(controller), weight: 240kg
Features:
Stainless steel working table,
stepping motor as pushing mechanism,
high precision, low noise, MCU control, v
ariable speed displayed by the controller,
easy to operate, ABS vertical type controller,
LCD display.
Soil Shear Strength Testing Machine / Soil Testing Equipment
