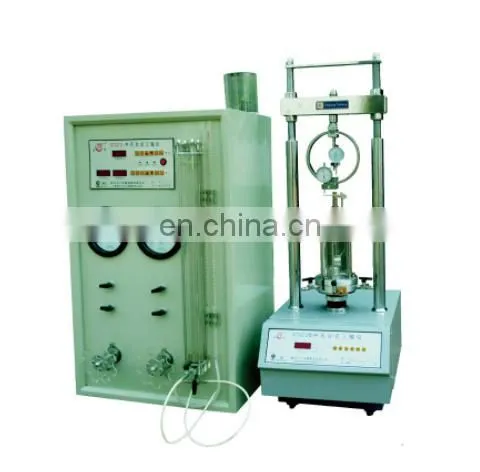

10kn Soil Light-duty Triaxial Test Apparatus
10kn Soil Light-duty Triaxial Test Apparatus
Application:
Bench Lightduty Triaxial aTest Apparatus is designed for laboratory and educational
use as well as institute for civil engineering test. It is a type of strain controlled apparatus to determine the specimen with maximum confining pressure of 1Mpa and sample diameter of Φ39.1x80mm. It can perform the strength and deformation characteristics testing of soil specimen under the static axial load and unconsolidated-undrained test (UU), consolidated-undrained test (CU) and consolidated-drained (CD) test.
Specimen: |
Φ39.1mm X 80mm |
Capacity: |
10KN maximum 10KN |
Strain rate: |
0.016-1.6mm/min. mechanical speed with 6 gears |
Platen travel: |
50mm maximum |
Confining pressure:(σ3) |
0-1MPa |
Anti-pressure:(σb) |
0-0.6MPa |
Pore pressure:(u) |
0-1MPa |
Volume deformation: |
0-25ml,minimum division:0.1ml |
Axial displacement: |
0-30mm(micrometer) |
Power supply: |
220V±10% 50Hz |
Dimension: |
Main unit:350 x 300 x 1100mm(L x W x H) |
Weight: |
170Kg |

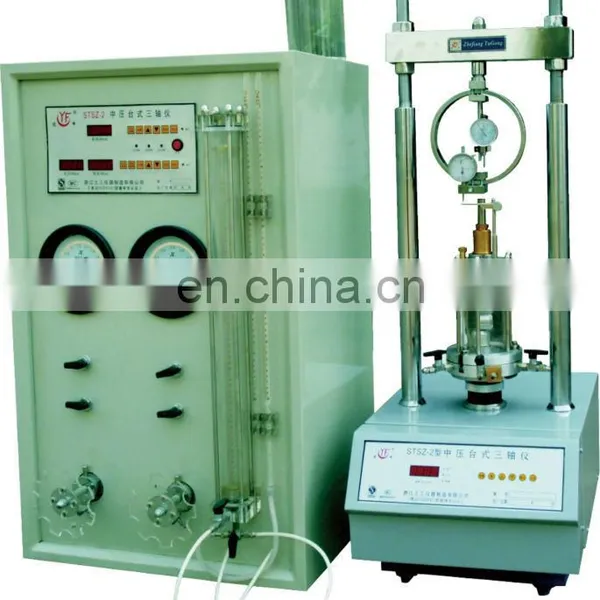

10kn Soil Light-duty Triaxial Test Apparatus
