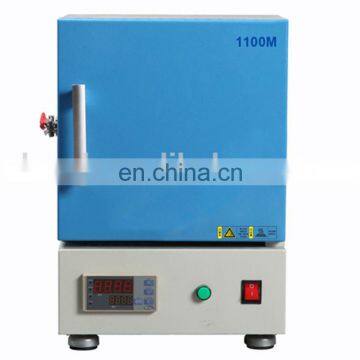

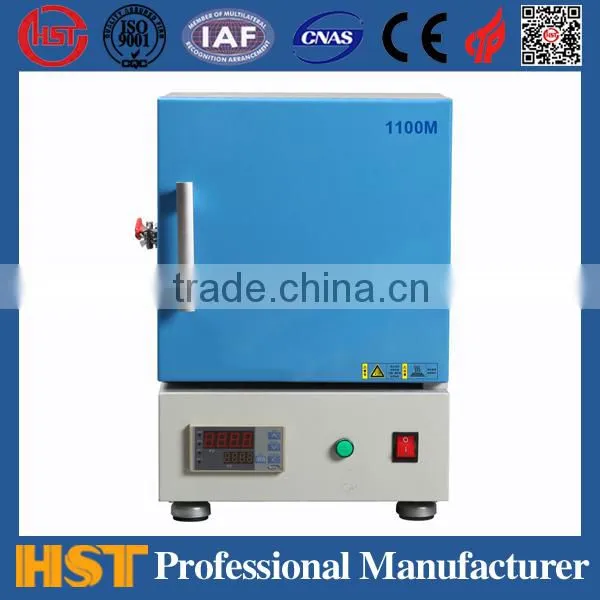

1100C High Temperature Electric Heating Furnace
With the features of small volume, low energy consumption and light weight, the mini furnace is convenient for every person hold one set in the laboratory. It use electric resistance wire as heating element, adopted carbon steel shell structure and intelligent temperature control system.
Main function and features
1. Furnace chamber adopted high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties, high tensile strength and no miscellaneous ball; So this furnace much more energy saving than the furnace use common fiber materials.
2. Heating elements use high quality alloy wire 0Cr27Al7Mo2.
3. Reserved data transfer interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function.
4. Over-temperature will alarm and automatic cut off the power; and with leakage protection function, operation very safe.
Main applications
Universities, research institutes, industrial and mining enterprises to do the powder sintering , sintering of ceramics, high temperature experiments, material handling, quality inspection purposes.
Specification
Model | HS-1100M |
Furnace chamber (D x W x H) | 100*100*100mm (capacity: 1 L) |
Furnace shell structure | Double shell |
Furnace door structure | Side open |
Furnace chamber | vac-sorb forming high quality alumina polycrystalline fiber |
Heating elements | 0Cr27Al7Mo2 alloy wire |
Working temperature | Continuous working temperature ≤1000℃; Max. Temperature: 1050℃ |
Heating Rate | Max. :30℃/min; Recommend: 10℃/min |
Cooling rate | Above 700℃ ≤10℃/min |
Temperature control model | The temperature control system adopted artificial intelligence technology, PID regulation, self-tuning capabilities, 30 segment temperature control program |
Temperature control accuracy | ±1℃ |
Thermocouple | N model thermocouple |
Power supply | AC220V /50HZ/60HZ |
Rated power | 1KW |
Size | Furnace size: 300*320*420mm (DxWxH) Package size: 500*500*620mm (DxWxH) |
Weight | Net weight: 25Kg Gross weight: 55kg |
Optional accessories | All kinds of corundum, quartz crucible, computer control software, paperless recorder, etc. |
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: L/C T/T, West union,etc.
Shipping and Delivery: by air , in 15 days after receiving the payment
