Home > Instruments & Meters > Test Instrument > Test Machine > GNZ-1000 Optical Fiber Cable Torsion Testing Equipment
US$ 2,000 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST
Place of Origin:
Shandong, China
Model Number:
GNZ-1000 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Beijing or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Optical Fiber Cable Water Penetration Tester With Low PriceUS$ 8,600 - 8,600MOQ: 1 Set -
Electronic Computer Control Double Column Optical Fiber Cable Crush Cut Tensile Tester Testing Machine PriceUS$ 6,000 - 6,000MOQ: 1 Set
-
Optical Fiber Cable Winding Bending Tester/Kink Test EquipmentUS$ 8,600 - 8,600MOQ: 1 Set
-
Optical Fiber Cable Repeated BendingTester/Cable Torsion Testing Machine/Cable Flex Test EquipmentUS$ 8,350 - 8,600MOQ: 1 Set
-
OpticalFiberCableFlexingTester/ Winding Bending Testing Machine PriceUS$ 8,600 - 8,600MOQ: 1 Set
Brand Name
HST
Place of Origin
Shandong, China
Model Number
GNZ-1000 Series
Power
Electronic
Product Description
Application

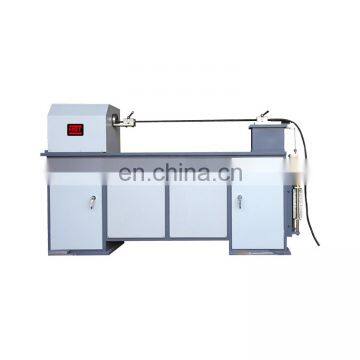

GNZ-1000 Series Optical Fiber Cable Torsion Testing Machine is intended to establish the ability of a fiber optic cable to withstand mechanical twisting.
Technical Parameters
1. Torsion angle: ±90°, ±180°, ±360°;
2. Torsion length: 1000mm;
3. Setting range of testing times: 1~9999;
4. Setting range of frequency: 5-30 times/min;
5. The torsion times will be automatically recorded. When reaching to the preset times, the test is automatically terminated;
6. Mass of hammer: the mass of pre-stressed hammer is 27.5kg, in which, poise bracket (5kg), 4 5kg poises and 1 2.5 poise.
7. Dimension:
Host dimension: 2010×520mm
Dimension of control panel: 540×410mm
8. Power supply: 3-phase 4-wire, 50Hz, 1KW. In which, power of motor is 0.55KW;
9. Ambient temperature: 10℃~40℃
10. Ambient humidity: less than 80% (Non-condensing).
Detailed Images
