Home > Products > Metallographic analyze Equipment > 4XB Metallurgical Microscope Price /High Quality Microscope/ Technical Metallographic Microscope
4XB Metallurgical Microscope Price /High Quality Microscope/ Technical Metallographic Microscope
- Qingdao China
- T/T Credit Card
You May Like
-
Microscope Price /Technical Metallographic Microscope
-
MP-2B Metallographic Equipment Electro Polishing Machine
-
MoPao2000 Automatic Metallurgical Grinding Polishing Machine
-
P-2G Metallographic Grinding Polishing Equipment
-
4XC CCD Camera Electron Metallurgical Microscope
-
MP-2B Metallographic Grinding Polishing Machine/Laboratory Equipment/Lapidary Polishing Machine
Product Details
| Brand Name | HST OR OEM | Place of Origin | Shandong, China | |
| Model Number | 4XB |
Product Description
4XB Metallurgical Microscope Price /High Quality Microscope/ Technical Metallographic Microscope
1.Application:
2 The main technical indicators of apparatus
2.1. Eyepiece
Category | magnification | view diameter (mm) |
Flat-field eyepiece | 10X | 18 |
12.5X | 15 |
2.2. Objective
Category | magnification | numerical aperture (NA) | system | working distance (mm) |
Achromatic objective lens | 10X | 0.25 | Dry | 7.31 |
Semi-flat-field achromatic objective lens | 40X | 0.65 | Dry | 0.66 |
Achromatic lens | 100X | 1.25 | Oil | 0.37 |
2.3. The total optical magnification: 100X-1250X
2.4. Mechanical tube length: 160 mm
2.5. Rough focusing fretting institutions: Focus Range: 7 mm
Lattice-valued scale: 0.002 mm
2.6. Rough dynamic focusing range: 7 mm
2.7. Machinery table: 75 * 50 mm
2.8. Lighting bulb: 6v 12w bromine tungsten lamp
2.9. Containing object (diameter): 10,20,42
2.10. Instrument Weight: 5 kg
2.11. Packing box size: 360 * 246 * 360 millimeters
3 The complete sets of equipment
3.1. The main microscope: one
3.2. Eyepiece 10X, 12.5X: per two
3.3. objective lens 10X, 40X (flat-field), 100 (oil): per one
3.4. binocular tub: one
3.5. 10 X eyepiece micrometer : one
3.6. micrometer-foot (0.01) : one
3.7. contents pressure spring: one
3.8. slide φ10, φ20, φ42 : per one
3.9. filter (yellow, green, gray and frosted glass):per one
3.10. fir oil : one bottle
3.11. light bulb (bromine tungsten lamp) (standby): two
3.12. fuse: one

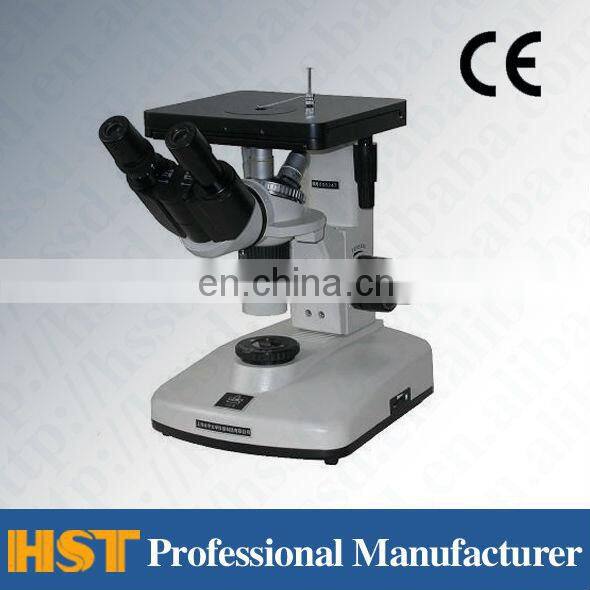

4XB Binocular Inverted Portable Metallurgical Microscope
4XB Binocular Inverted Portable Metallurgical Microscope
CE Certificat
One year warranty for the whole machine without the consumable parts.
A full range of services making customer satisfaction reflect our professional:
Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers’ special needs.
After-sale, we could supply door to door installation and training services according to customer requirements . Engineers are available for overseas services.
During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways. The machine parts is free of charge during the warranty period.

Welcome to contact Sunny for more informations: Whatsapp/Line/Phone: +8615866777590 Skype:jessica-hssd Email: sunny at
