4XB High Quality Microscope/ Technical Metallographic Microscope

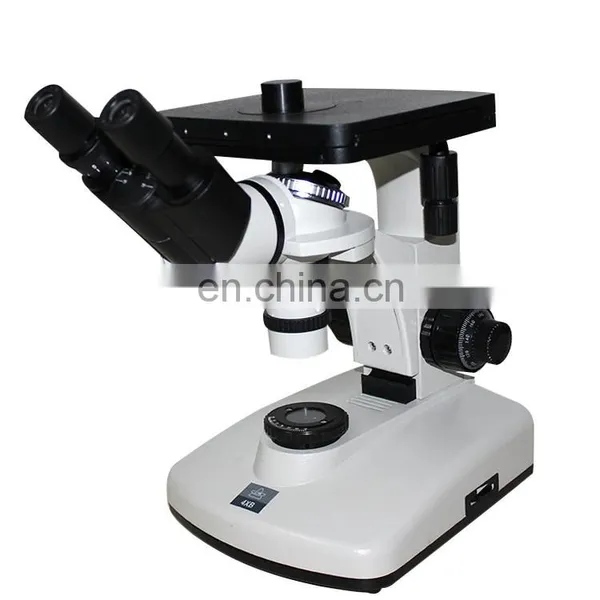

4XB Binocular Inverted Metallurgical Microscope/ Microscope Price /Technical Metallographic Microscope
1. Application and characteristics
4XB binocular-type inverted metallurgical microscope is used for the identification and analysis of various metals and alloys of the organizational structure, the general microstructure of the research work for the material after heat treatment. Microscope imaging is clear, of broad vision; the overall design is in line with the man-machine functions, fit to being operated for a long time. Can be widely used in factories or laboratories for the identification of casting quality. Raw material inspection or the treated material microstructure research and analysis work.
This is an inverted optical microscope, because the surface of the specimen was observed coincide with the table surface, so it has nothing to do with the sample height, the use of convenience, the apparatus of compact structure, elegant appearance, apparatus base supporting the larger, curved arm robust, low center of gravity so that the equipment
placed smooth and reliable, because of eyepiece with the support surface is tilted 45 degrees, so that the observation of comfort.
2. The main technical indicators of apparatus,
2.11. Eyepiece
Category Magnification View diameter (mm)
Flat-field eyepiece 10X 18
12.5X 15
2.2. Objective
Category Magnification Numerical aperture (NA) System Working distance (mm)
Achromatic objective lens 10X 0.25 Dry 7.31
Semi-flat-field achromatic objective lens 40X 0.65 Dry 0.66
Achromatic lens 100X 1.25 Oil 0.37
2.3. The total optical magnification: 100X-1250X
2.4. Mechanical tube length: 160 mm
2.5. Rough focusing fretting institutions: Focus Range: 7 mm
Lattice-valued scale: 0.002 mm
2.6. Rough dynamic focusing range: 7 mm
2.7. Machinery table: 75 * 50 mm
2.8. Lighting bulb: 6v 12w bromine tungsten lamp
2.9. Containing object (diameter): 10,20,42
2.10. Instrument Weight: 5 kg
2.11. Packing box size: 360 * 246 * 360 millimeters
3. The complete sets of equipment
3.1. The main microscope: one
3.2. Eyepiece 10X, 12.5X: per two
3.3. objective lens 10X, 40X (flat-field), 100 (oil): per one
3.4. binocular tub: one
3.5. 10 X eyepiece micrometer : one
3.6. micrometer-foot (0.01) : one
3.7. contents pressure spring: one
3.8. slide φ10, φ20, φ42 : per one
3.9. filter (yellow, green, gray and frosted glass):per one
3.10. fir oil : one bottle
3.11. light bulb (bromine tungsten lamp) (standby): two
3.12. fuse: one
2 The main technical indicators of apparatus
2.1. Eyepiece
Category |
magnification |
view diameter (mm) |
Flat-field eyepiece |
10X |
18 |
12.5X |
15 |
2.2. Objective
Category |
magnification |
numerical aperture (NA) |
system |
working distance (mm) |
Achromatic objective lens |
10X |
0.25 |
Dry |
7.31 |
Semi-flat-field achromatic objective lens |
40X |
0.65 |
Dry |
0.66 |
Achromatic lens |
100X |
1.25 |
Oil |
0.37 |

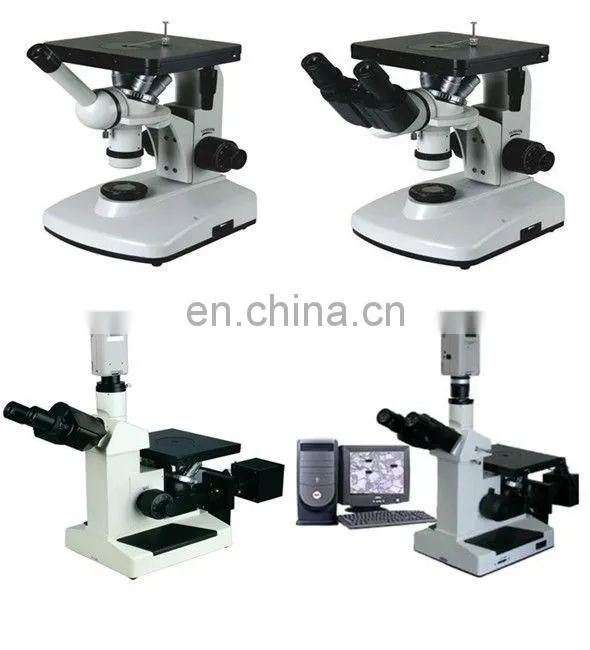

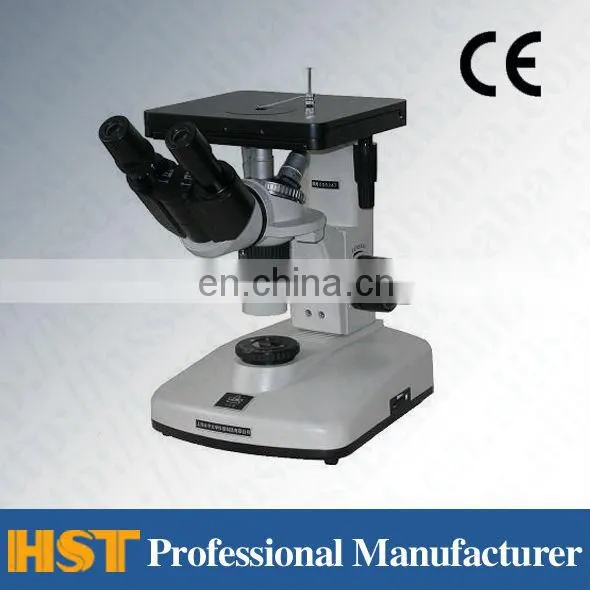

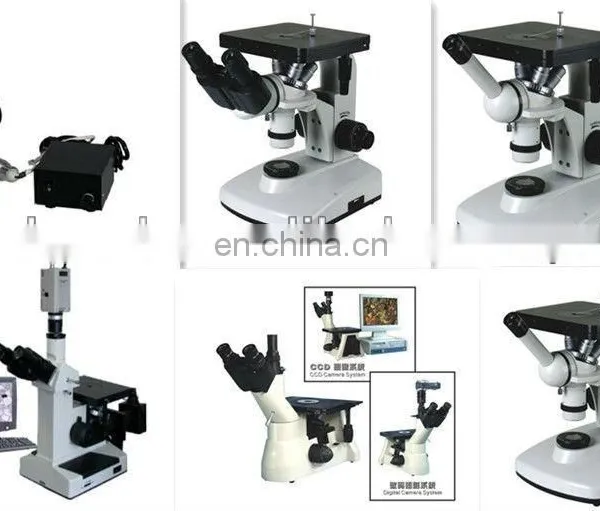

4XB Binocular Inverted Portable Metallurgical Microscope
4XB Binocular Inverted Portable Metallurgical Microscope
CE Certificat
NOTE:
We are manufacturer not trade company
High quality and low price !
Profesional technology and high quality !
The comprehensive technical guidance and after-sales service !
