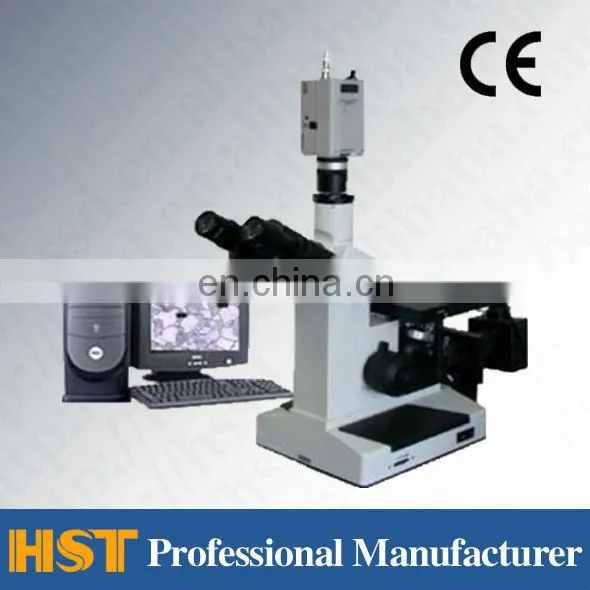

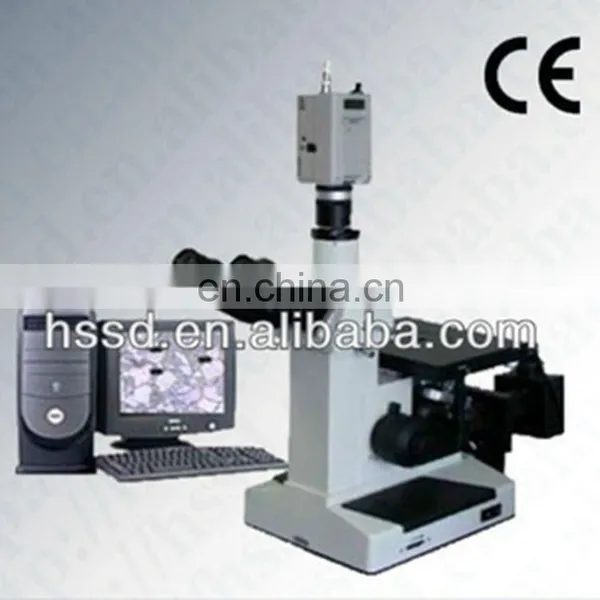

4XCE Computer Control Metallographic Trinocular Microscope with Camera and Image Analysis Software
1. Function and application
It is the important device which can be used to study the metallographic of metal, and it is also the key instrument to verify
the product quality in industrial application. This microscope can be equipped with photographic device which can take
metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
2. Main technical parameters
Three eyepiece tube |
Tilting angle: 30° Adjustable range: 55-75mm |
Eyepiece |
Wide view eyepiece 10X (16mm) |
Objective lens |
Flat fielding achromatic objective lens 10X, 25X, 40X, 100X (oil) |
Loading table |
150 x 200mm Moving range: vertical 15mm, horizontal 15mm |
Eyepiece (optional) |
12.5X, 16X, 20X, 10X flat fielding graduation eyepiece (grid value 0.1mm) |
Objective lens (optional) |
60X, 80X |
Photographic device (optional) |
1. Image adapting lens, high resolution color CCD camera static and dynamic
capturing card, image analysis software, EPSON color jet printer 2. Digital camera, specific adapting lens |
3. Configuration
1) Metallographic microscope: inverted trinocular microscope 4XC;
2) Adaptor: special adaptor
3) Image system: camera shooting CCD
4) Image analysis system: SRMAS software
4XCE Computer Control Metallographic Trinocular Microscope with Camera and Image Analysis Software
4XCE Computer Control Metallographic Trinocular Microscope with Camera and Image Analysis Software
