WDW-G 1200C HST Brand High Temperature Universal Creep Testing Equipment
Application:
Applicable to the tensile and creep relaxation strength test of the round specimen, rectangular specimen and tubular product and other product under GB/T4338 " Metal materials high temperature tensile
test method, HB5195"Metal high temperature tensiletest method", GB/T2039"Tensile creep
rupture and test method", HB5150"Metal high temperature tensile durable test method".
The high temperature test furnace adopting cylinder open structure or monolithic construction, normally is three step control.

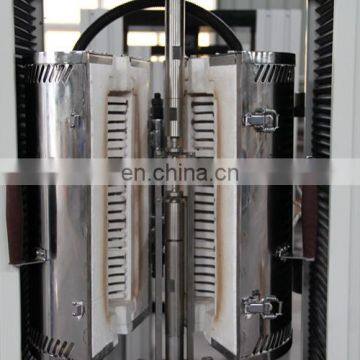

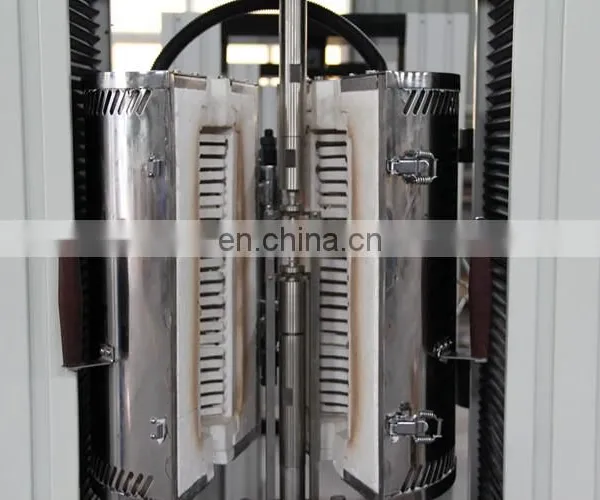

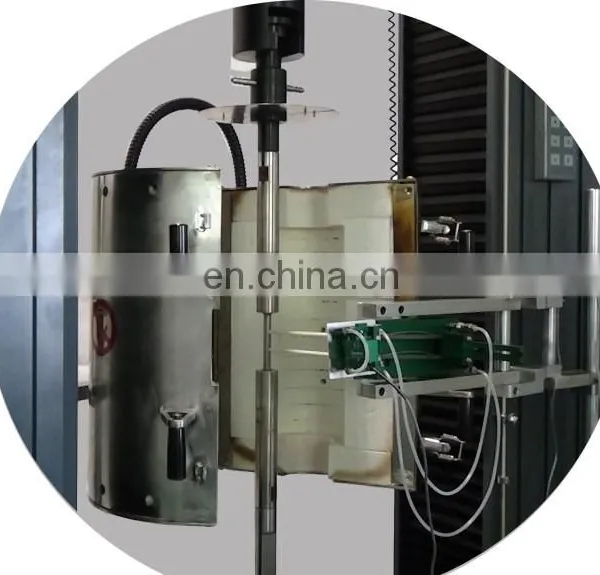

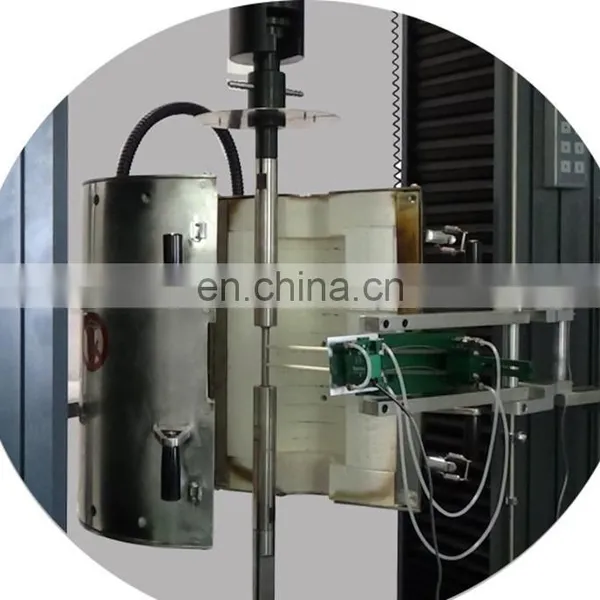

1. High temperature electric furnace:
Structure:
The high temperature test furnace adopting cylinder open structure or monolithic construction, normally is three step control. Mainly composed by test electric stove, temperature controller, high temperature rod, high temperature chuck, ect. Can do high temperature tensile test of metal and non metal materials. If normal temperature test, just move high temperature furnace away.
Features:
1.Cylinder structure is adopted for high temperature furnace, heating resistance wire, resistance wire distribution is reasonable, to ensure that the furnace temperature gradient and volatility resistance wire adopts three control mode, respectively Furnace wire 1.5 mm in diameter. (if you need to work long hours, lasting and creep test, can use the 5 mm diameter thick silk as heating body furnace, low voltage, high current power supply, greatly extend the life of the furnace silk, can work continuously for 5000 hours.)
2.Temperature measuring device is K type thermocouple, stable and reliable to work long hours, measurement accuracy satisfies the requirement of national standard and the line mark.
3. Electric furnace with special heat insulation measures, the external surface of the furnace temperature rise is small, energy saving and safe.
2.Temperature control measurement system
It is composed by temperature measurement component, central computing unit (PLC), temperature detection instrumentation (PID adjust, with AT function) and HIM, etc
Real time monitoring temperature data vibration, display curve, and record of curve and invoking function; Human set the abnormal data; Add short message sending module, send a police report to the standard mobile phone
3. Connection with testing machine
High temperature furnace test unit through the rotating arm which is installed on the mobile trolley column, folding arm can be adjusted according to request any height and horizontal position, and can lock after positioning.
The normal temperature test, furnace body can be removed lightly.
4. Sample clamping

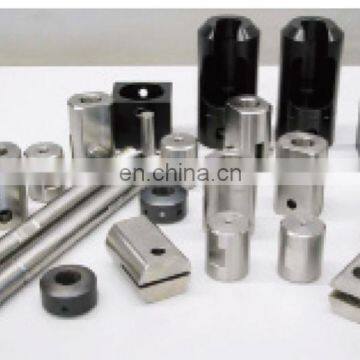

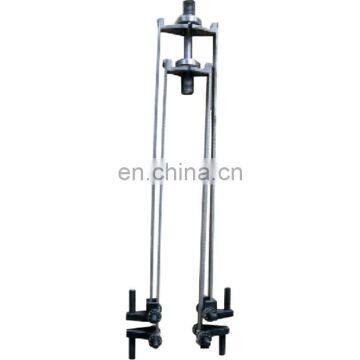

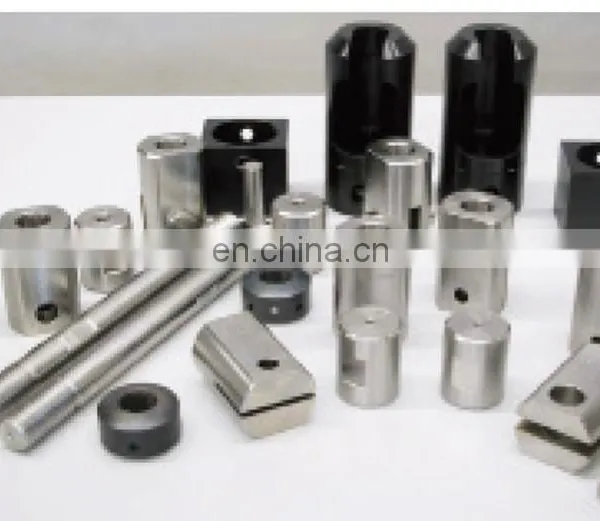

Sample followed by high temperature jig, watercooling connecting rod on both ends. Only has the cooling function connecting part with the sensor
Testing machine wedge specimen jig can directly connecting with the rod .Also can be directly connected to connection accessories and the moving beam of testing machine
5. Main technical parameter about the high temperature part:
|
Model |
GWT1200 |
||
|
Installation way |
vertical type |
||
|
Working temperature |
100~1200°C |
||
|
Long-term working temperature |
1000°C |
||
|
Heating element material |
FeCrAl resistance wire |
||
|
Furnace wire diameter |
φ1.5mm |
||
|
Thermometric element |
K type temperature measuring thermocouple(including special compensation conductor) |
||
|
Soaking zone length |
100mm |
||
|
Heating sections quantity |
3 |
||
|
Temperature measuring point number |
3 |
||
|
Temperature measuring sensitivity |
0.1°C |
||
|
Temperature measuring accuracy |
0.2% |
||
|
hearth inner diameter |
Diameter×length:φ 90×300(240,380)mm |
||
|
Temperature accuracy |
Test temperature (°C) |
temperature departure |
temperature gradient |
|
GB/T4338 |
|||
|
≤300~600 |
±3 |
||
|
≥600~900 |
±4 |
||
|
>900 |
±5 |
||
|
Heath inner diameter |
Diameter x length: 80 mm |
||
|
Dimension |
diameter x length:φ300×450mm |
||
|
Tensile jig, bar sample |
M12×φ5 |
||
|
Temperature measurement and control system |
HMI human computer interface |
||
|
Working voltage |
380v temeprature |
||
|
heating power |
Temperature limit power 5kw |
||
