Hot !!! WDW-GD 1~600KN Rubber&plastics High and Low Temperature Tensile Testing Machine
Contact me:Sunny mobile:+86-15588832895 Skype:sunny.luo70
Application:
Application to the tensile and creep relaxation strength test if the round
specimen, rectangular specimen, and tubular product and other products
under GB/T4338 (metal material of high temperature tensile test method),
HB5195 (The metal high temperature tensile test method) , GB/T2039( the
tensile creep rupture and test method), HB5150
(metal high temperature tensile durable test method)
Structure:
-180~-1100 high low temperature universal/tensile testing machine adopting cylinder open structure or monolithic construction, normally is three step control. Mainly composed by test electric stove, temperature controller, high temperature rod, high temperature chuck, ect. Can do high temperature tensile test of metal and non metal materials. If normal temperature test, just move high temperature furnace away.
Features:
1. Cylinder structure is adopted for high temperature furnace, heating
resistance wire, resistance wire distribution is reasonable, to ensure that the furnace temperature gradient and volatility resistance wire adopts three control mode, respectively Furnace wire 1.5 mm in diameter. (if you need to work long hours, lasting and creep test, can use the 5 mm diameter thick silk as heating body furnace, low voltage, high current power supply, greatly extend the life of the furnace silk, can work continuously for 5000 hours.)
2. Temperature measuring device is K type thermocouple, stable and
reliable to work long hours, measurement accuracy satisfies the requirement of national standard and the line mark
3. Electric furnace with special heat insulation measures, the external surface of the furnace temperature rise is small, energy saving and safe.
Temperature control measurement system
-180~-1100 high low temperature universal/tensile testing machine is composed by temperature measurement component, central computing
unit (PLC), temperature detection instrumentation (PID adjust, with AT function) and HIM, etc
Real time monitoring temperature data vibration, display curve, and record of curve and invoking funcion; Human set the abnormal data; Add short message sending module, send a police report to the standard mobile phone
Connection with testing machine
High temperature furnace test unit through the rotating arm which is installed on the mobile trolley column, folding arm can be adjusted according to
request any height and horizontal position, and can lock after positioning.
The normal temperature test, furnace body can be removed lightly.
Sample clamping
Sample followed by high temperature jig, water-cooling connecting rod onboth ends. Only has the cooling function connecting part with the sensor
Testing machine wedge specimen jig can directly connecting with the rod .
Also can be directly connected to connection accessories and the moving beam of testing machine
Main technical parameter about the high temperature part:
|
Model |
WDW-1/2/5/10//30/50/100/200 /300/500/600 G |
||
Max test load |
1/2/5/10//30/50/100/200/300 /500/600KN |
||
Installation way |
vertical type |
||
Working temperature |
-180℃~1100℃ (Can customize) |
||
Long-term working temperature |
1000℃ |
||
Heating element material |
FeCrAl resistance wire |
||
Furnace wire diameter |
φ1.5mm |
||
Thermometric element |
K type temperature measuring thermocouple (including special compensation conductor) |
||
Soaking zone length |
100mm |
||
Heating sections quantity |
3 |
||
Temperature measuring point number |
3 |
||
Temperature measuring sensitivity |
0.1℃ |
||
Temperature measuring accuracy |
0.2% |
||
|
Temperature accuracy |
Test tem perature (℃)
|
temperature departure |
temperature gradient |
GB/T4338 | |||
≤300~600 |
±3 |
||
≥600~900 |
±4 |
||
>900 |
±5 |
||
Heath inner diameter |
Diameter x length: φ80 mm×360mm |
||
Dimension |
diameter x length:φ300×450mm |
||
Tensile jig, bar sample |
M12×φ5 |
||
|
Temperature measurement and control system |
HMI human computer interface |
||
Working voltage |
380v |
||
Heating power |
Temperature limit power 5kw |
||
Thermostat specifications |
High precision temperature control meter, multilevel PID adjust, interval 1°C, accuracy: 0.5°C |
||
Temperature fluctuation |
±1°C |
||
Uniform temperature zone length |
More than 150mm |
||
Size of oven body |
Hearth: depth * width* height 650*240* 400mm Overall size:1000*390*600mm |
||
Material |
Stainless steel inner shell, long durability, good anti-corrosion performance |
||
Hot !!! WDW-GD 1~600KN Rubber&plastics High and Low Temperature Tensile Testing Machine

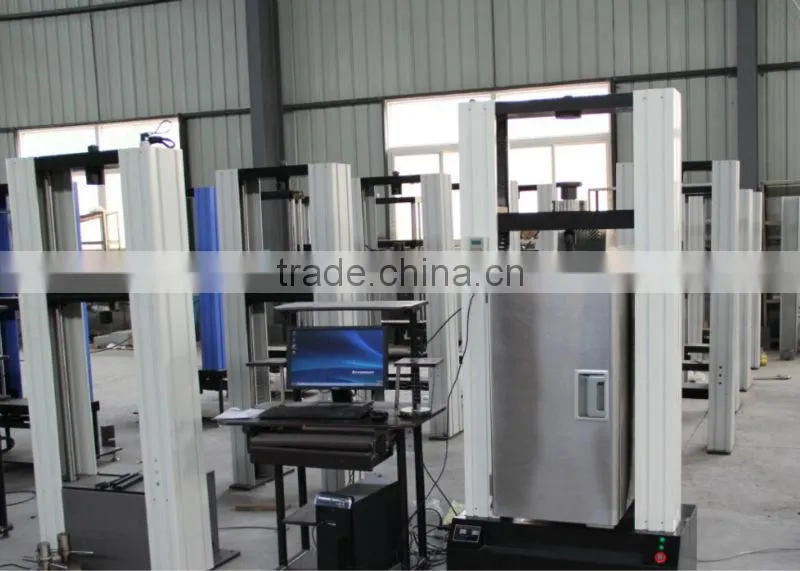

Detail Show:

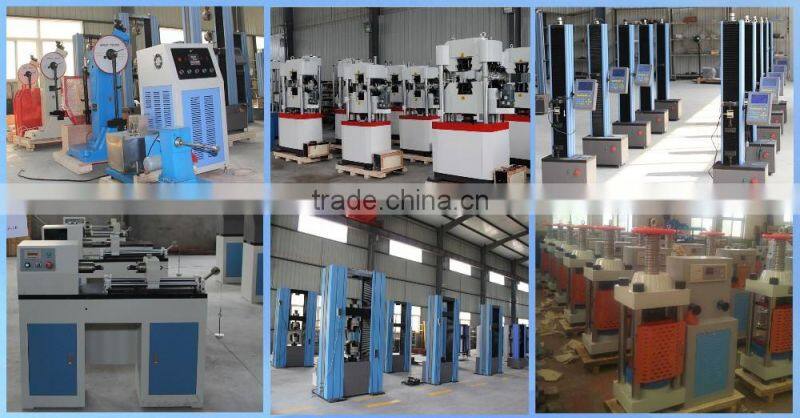

Factory Show
Our after-sale service:
1,One year guarantee of the whole machine
2, 24 hours techonical support by e-mail
3, calling or door-to-door service
