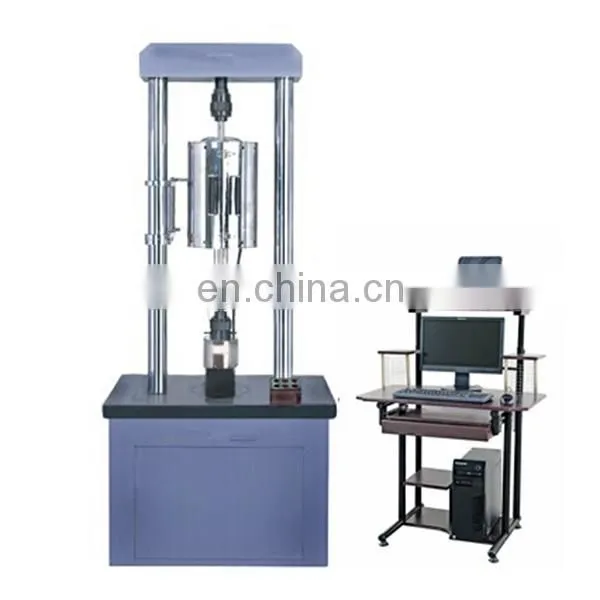

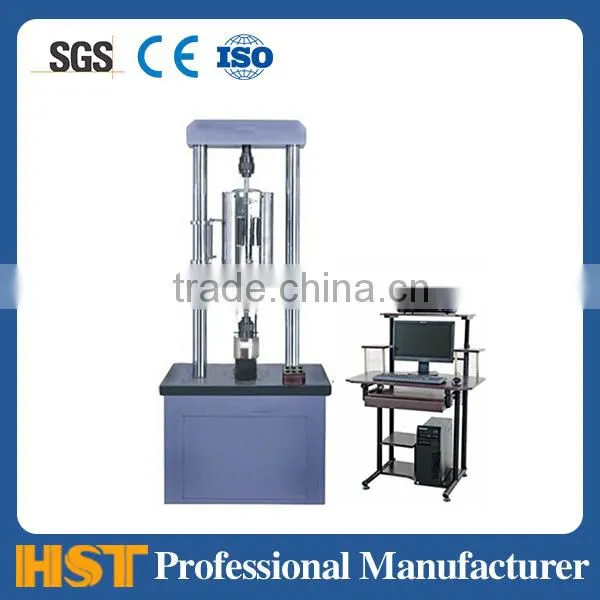

1100c HSTB1 Series Electronic High Temperature Electronic Creep Test Machine
1. Function and Purpose:
Creep test machine is applicable to do creep and durable strength test in the condition of high temperature for all kinds of metal and alloys materials, to test creep limit, durable strength limit etc. of material.
2. Application:
This creep test machine is applicable to the field of quality measurement, aerospace, iron and steel metallurgy, machinery manufacturing, electronic appliances, automobile production, civilian nuclear energy, civil aviation, universities, research institutes, commodity inspection, arbitration and other industries.
3. Test Standard:
1 JB/T9373-1999 tensile creep test machine technology specifications
2 JJG276 high temperature creep and durable test machine
3 GB/2611-92 test machine common technical specifications
4 GB/T16825.2-2001 tensile creep test machine loading force measurement
5 GB/T2039-1997 metal tensile creep and durable test method
6 HB5151-1996 metal high temperature tensile creep test method
7 HB5150-1996 metal high temperature tensile durable test method
4. Main Technical Specifications:
specifications |
Parameters |
||||||||||
Main Host | |||||||||||
Model |
HST104-B1 |
HST504-B1 |
HST1004-B1 |
HST2004-B1 |
|||||||
Max. Load force |
10kN |
50kN |
100kN |
200kN |
|||||||
Min Load force |
40N |
200N |
400N |
800N |
|||||||
Test force accuracy |
≤0.5% |
||||||||||
Load force resolution |
1/200000 FS |
||||||||||
Lower pull rod speed |
0.05~200mm/min |
||||||||||
Tensile space |
1000mm(not include the grip) |
||||||||||
upper and lower chuck eccentricity |
≤12% |
||||||||||
Timing error |
±0.2% |
||||||||||
deformation measuring system | |||||||||||
Deformation measuring load sensor |
Deformation measuring range |
Deformation measuring resolution |
Deformation measuring accuracy(Deformation measuring error) |
||||||||
Digital Deformation load sensor |
0~10mm |
0.001mm |
0~10mm:10μm
|
||||||||
Electric furnace and temperature measuring control | |||||||||||
Electric structure |
Drum sliding resistance furnace structure, three-stage electric wire heating, segmented control |
Off-type resistance furnace structure, three-stage electric wire heating, segmented control |
|||||||||
operating temperature range |
300℃~1100℃ |
300℃~1100℃ |
|||||||||
Effective Length constant length |
200mm |
150mm |
|||||||||
Furnace diameter size |
Φ90mm |
||||||||||
Electric Dimensions |
Φ380×500mm(Can be adjusted according to user needs) |
||||||||||
Furnace wire (electric heating element) |
HREφ5mm Heater pipe |
φ0.1mm furnace wire |
|||||||||
|
≤1100℃ constant working time,more than 30000h |
||||||||||
Furnace surface temperature (average) |
When 1100℃,≤90℃ when 700℃,≤50℃ |
||||||||||
Electric hoist way |
Electric lift mechanism for lifting and lowering electric stove, you can manually lift after power failure |
Manual rotation |
|||||||||
Heating power |
5kW Temperature control meter (Japan) |
||||||||||
Temperature control meter |
Shimaden |
||||||||||
Sanbu Temperature control meter(Japan) (optional) | |||||||||||
Thermocouple |
K type Even thermocouple |
||||||||||
S type Even thermocouple (optional) | |||||||||||
High-temperature furnace temperature accuracy(℃) |
Test temperature |
temperature fluctuation |
temperature gradient |
||||||||
300~600 |
±2 |
2 |
|||||||||
600~900 |
±3 |
3 |
|||||||||
900~1100 |
±4 |
4 |
|||||||||
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
