Computer Controlled Electronic Fatigue Testing Machine
Application
1. Application
Mainly used to do the dynamic and static mechanical fatigue test for materials and parts . The machine
could also complete the fatigue test of other structural parts with different fixture. The machine also can be
used for materials or structural parts, auto parts and other static mechanical performance test. It is a
popular machine for the university, research institutes, enterprises and other experimental equipment to
test.
2. Project Description
2.1 Main components

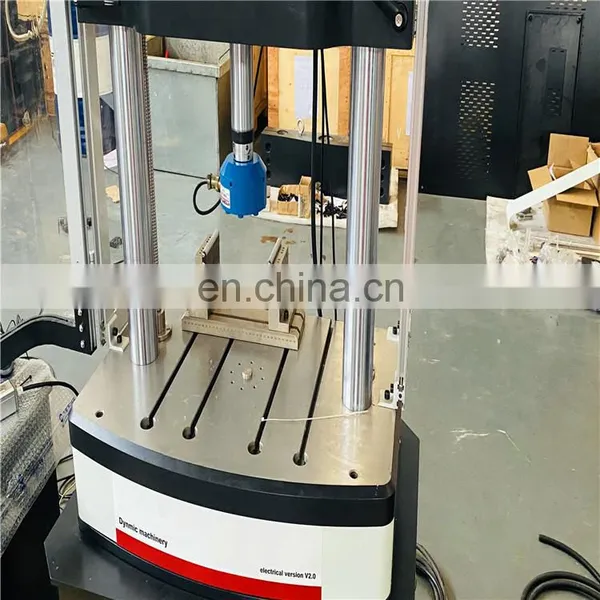

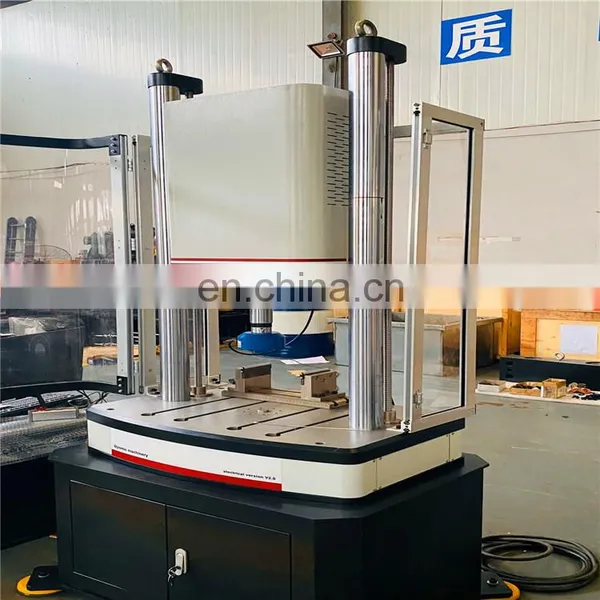

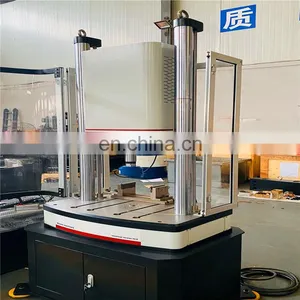

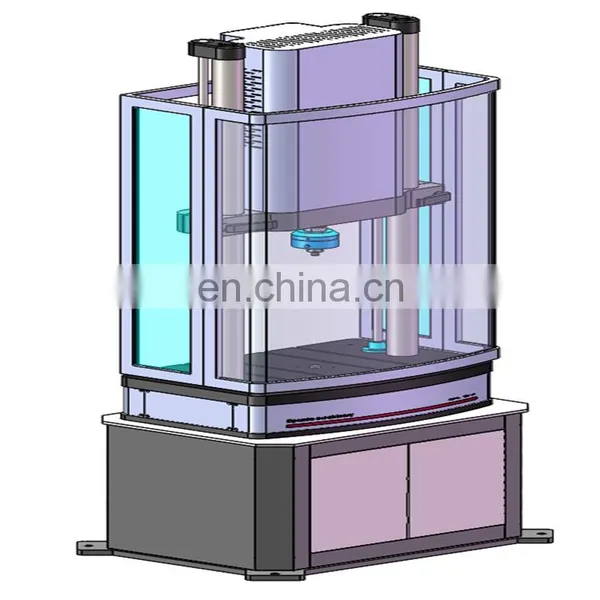

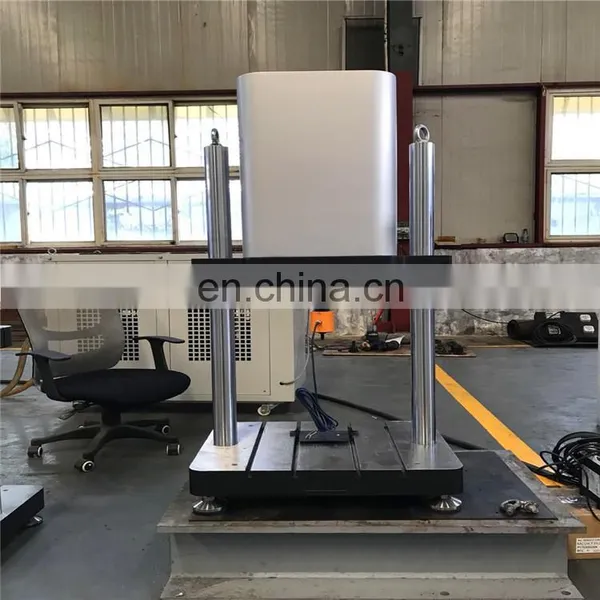

2.1.1 Portal type mobile loading platform, 1 set (large-diameter
column structure frame, easy to test the test piece)
2.1.2 Imported servo cylinder, Japan Panasonic drive device;
(single channel)
2.1.3 Data Acquisition Control System: Static and Dynamic
Servo Controllers and Software Systems
2.1.4 US imports dynamic special force sensor
3.1 Main configuration of the controller consists of
3.1.1 Upgradeable DTC380 controller host station
3.1.2 Signal conditioning unit with two sensors (force, displacement, expandable)
3.1.3 Signal generator unit
3.1.4 HS-GPIB communication card for communication with PC
3.1.5 Computer workstations (mainstream brand computers, configured according to 380 controller
requirements)
4. Main parameters
4.1 Maximum test force: ±5kN;
4.2 Test force accuracy: Within the range of 2%-100% FS, each point is less than ± 1.0%;
Page 5/7HST Group Co.,LTD.
4.3 Test force dynamic indication volatility:0.5%FS;
4.4 Actuator maximum displacement: 550mm; indication accuracy ± 0.5% FS;
4.5 Test waveform: sine wave, square wave, triangle wave, ramp wave, etc.
4.6 Test frequency range: 0.01-5Hz;
