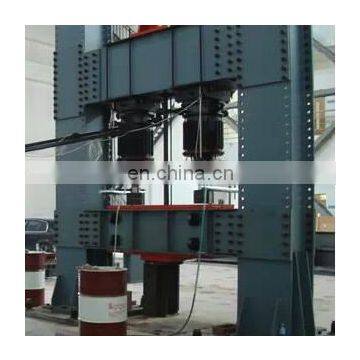

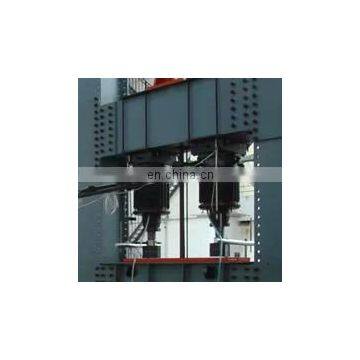

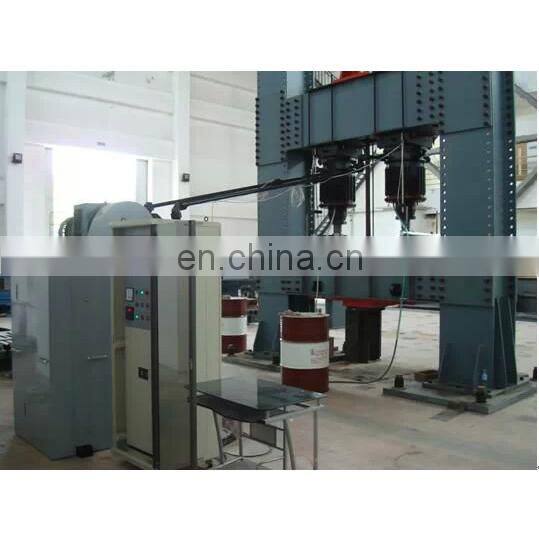

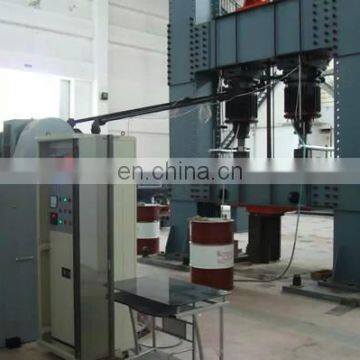

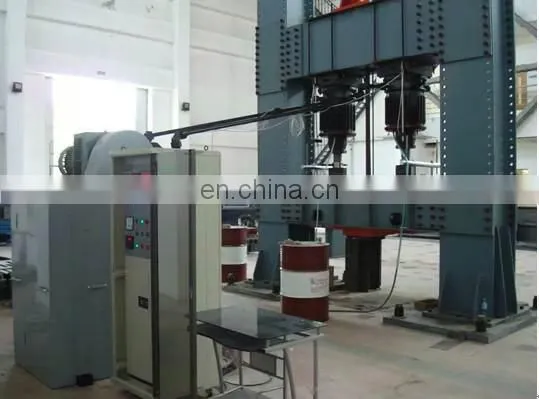

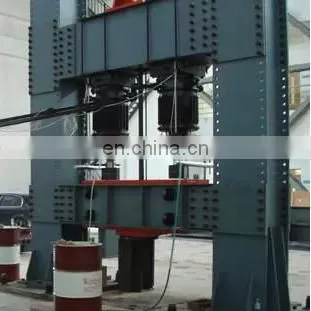

Help CenterSteel Strand Anchor Connector Fatigue Testing Machine
Related Products
-
High Temperature Gas Corrosion Testing MachineUS$ 10,000 - 10,000MOQ: 1 Set -
Tension and Torsion Fatigue Testing MachineUS$ 10,000 - 10,000MOQ: 1 Set
-
Microcomputer Controlled Electro-hydraulic Servo Dynamic and Static Universal Fatigue Testing MachineUS$ 10,000 - 10,000MOQ: 1 Set
-
2020New Model ASTM CE ISO High Frequency Fatigue Testing MachineUS$ 10,000 - 10,000MOQ: 1 Set
-
DPL1000 Electronic Static Testing and Dynamic Testing Machine Fatigue Testing MachineUS$ 20,000 - 22,000MOQ: 1 Set
dynamic fatigue testing machine
|
Technical parameter |
|
|
Maximum working pressure of the system |
19 / 38MPa |
|
Maximum static test force of the system |
250/500/1000/2000/2500/3000/4000 / 5000kN × 2 |
|
Maximum dynamic test force of the system |
250/500/1000/2000/2500/3000/4000 / 5000kN × 2 |
|
System load indication accuracy |
≤ ± 1% |
|
1000kN actuator main technical parameters |
|
|
Maximum static test force |
1000kN |
|
Accuracy: |
20% FS from each point ± 1% |
|
Maximum dynamic test force |
1000kN |
|
The dynamic indication fluctuation |
≤ ± 2 |
|
Maximum working vibration amplitude |
15mm (Theoretical value of a single actuator) |
|
The maximum stroke of the piston |
120mm |
|
Maximum screw extension |
450mm |
|
Operating frequency range |
2-8Hz, infinitely adjustable |
|
Counter maximum capacity |
1 time / rev, 99999999 |
|
Loading frame size |
designed according to test capacity |
|
Pulsator displacement |
0-1600mL / time |
|
Pulsator main motor power |
11/22 / 45kW |
|
Number of fatigue test channels |
5,the pipeline is equipped with a switch device, which can perform single-point or multi-point synchronous fatigue test |
|
Anchorage connector fatigue performance test ability |
meet 2-35 hole simultaneous test |
