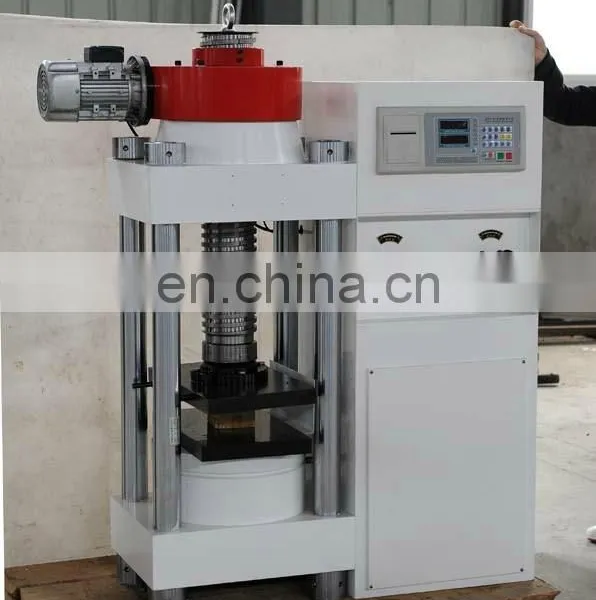

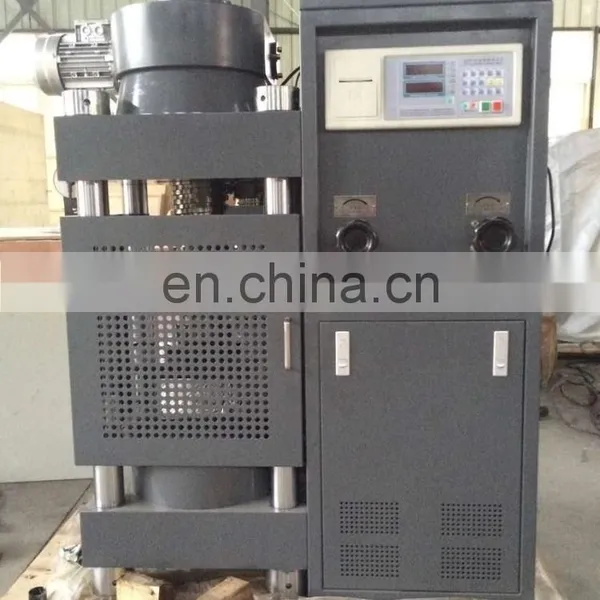

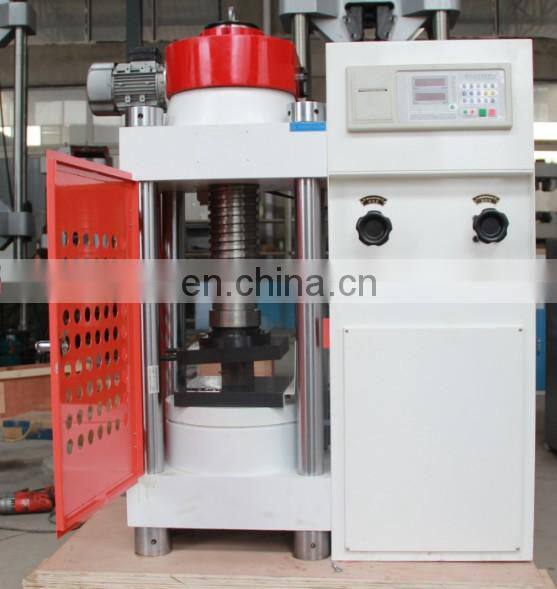

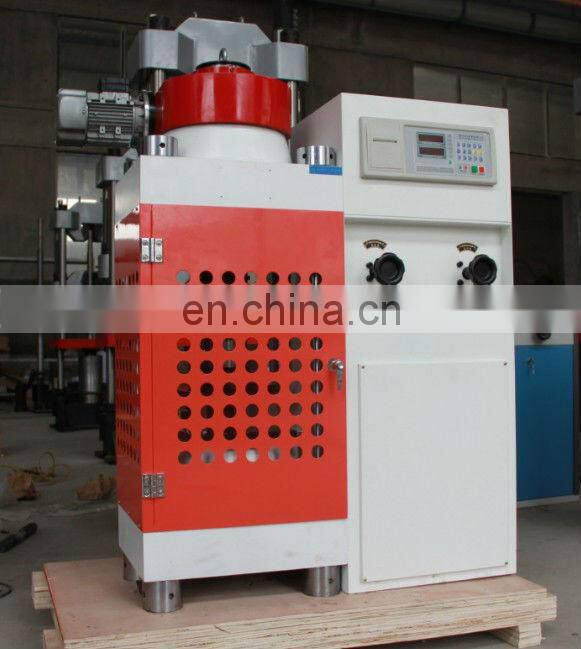

YES-2000 Digital Display Cement Block Machine Compression Test machineice
YES-1000/2000/3000 YES-1000/2000/3000D
1. Application
Digital displayConcrete Compressive Compression Testing Machine Price price mainly used for
brick, cement, concrete, construction material and othermaterial compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Product description:
* Structure:mainly composed by main unit, oil source and measuring control system.
*Space adjusting way: Electric ball screw adjusting to realize the compression space adjusting

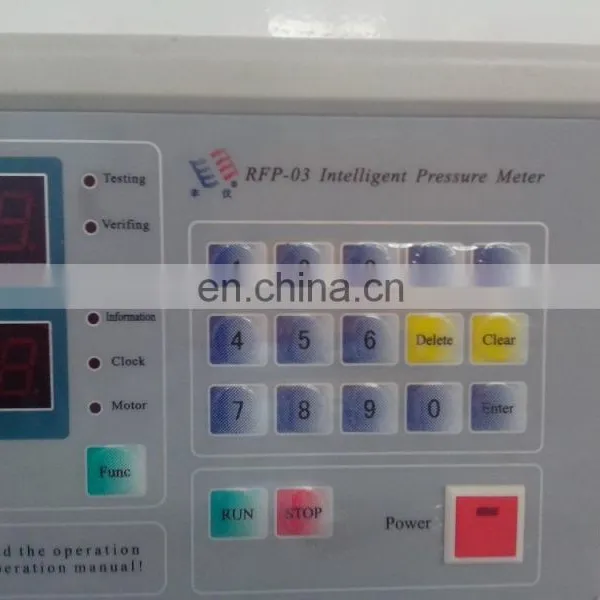

* Measuring control system:The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device:When the test foce exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
3. Main Specifications Compression testing machine price
Model |
YES-2000D |
YES-3000D |
|
Max test force |
2000kN |
3000kN |
|
Test space adjusting way |
Electric ball screw adjusting |
||
Control way |
Manual control loading process |
||
Accuracy class |
1 class |
||
Test force range |
4%~100%F·S |
||
Test value accuracy |
Better than ±1% |
||
Oil cylinder stroke |
50mm |
||
Max distance between upper and lower plate |
320mm |
340 mm |
|
Max distance between two columns |
280mm |
||
Upper and lower pressure plate |
250×250mm |
270*270mm |
|
Main unit dimension |
1000×500×1450mm |
||
Power supply |
2.0Kw/AC380V |
||
Weight |
1000Kg |
1200kg |
|
YES-2000 YAW-2000D YES-300 YAW-300D
1) Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
2) Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3) Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
4) Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. Products are widely recognized and trusted by users.
