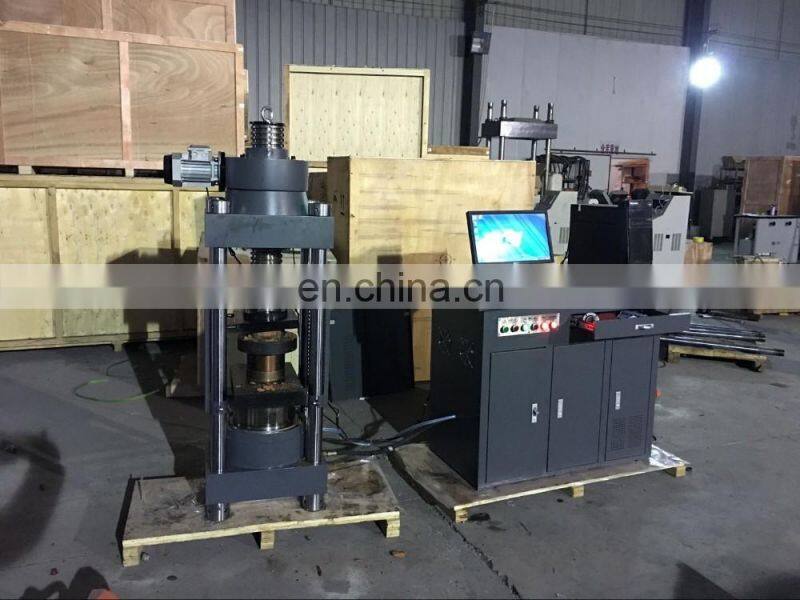

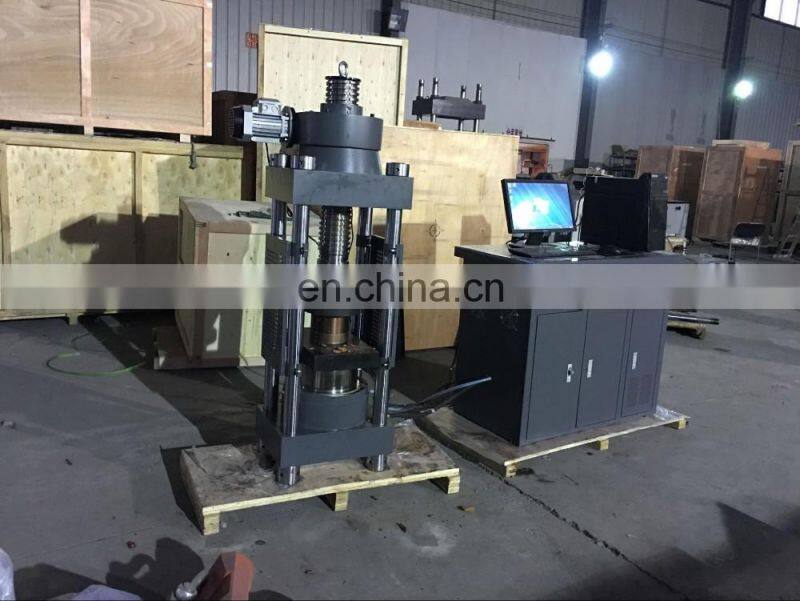

YAW-2000D cube compressive strength testing machine
Contact: sunny Whatsapp/Line/Phone: +8615866777590 Skype:jessica-hssd
1. Application
YAW-D concrete compressio tester mainly used for concrete rupture strength testing,
cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
2.1 Computer control up, down, test, stop and loading progress
2.2 Electric screw ball adjust test space
2.3 Unibody desktop oil source control cabinet
2.4 This machine consist of the host machine, oil source and control system.
2.5 Can realize the load rate, such as load or stress rate loading
2.6 Can auto printing
3. Technical parameters
Model |
YAW-2000D |
YAW-3000D |
|
Max. Load |
2000kN |
3000kN |
|
Control method |
Computer auto control loading process |
||
Test space adjustment mode |
Electric ball screw adjust |
||
Oil source control cabinet structure |
One-piece oil source control cabinet |
||
Test class |
1 class |
||
Testing range |
4%-100%FS |
||
Load display accuracy |
Better than ±1% |
||
Piston stroke |
50mm |
80mm |
|
Distance between upper and lower plate |
320mm |
340mm |
|
Max space between two columns |
270mm |
280mm |
|
Size of upper and lower platen |
250×250mm |
260×260mm |
|
Power supply |
2.1Kw/AC380V |
2.3Kw/AC380V |
|
We supply full range services:
Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers’ special needs.
After-sale, we could supply door to door installation and training services according to customer requirements .
During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways.
The machine parts is free of charge during the warranty period ,and machines lifetime maintenance.
Contact: sunny Whatsapp/Line/Phone: +8615589960023 Skype:jessica-hssd
