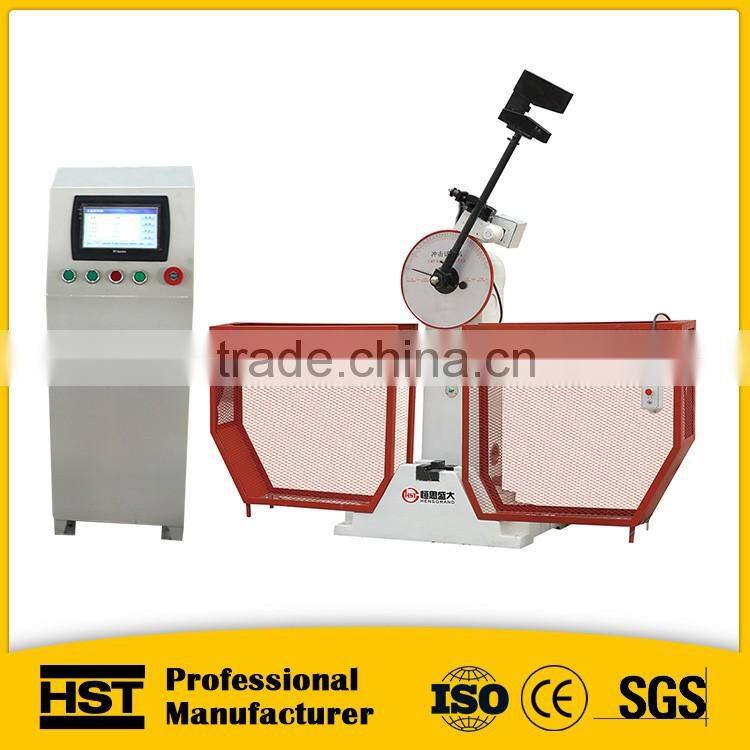

Charpy impact test equipment price/ charpy impact tester/ charpy izod impact test
Tel/whatsapp:+86-15589960023 Skype: jessica-hssd
1.Application
JBS series degial display Semi-Automatic Charpy Impact tester is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications:
Model |
JBS-300B |
JBS-500B |
JBS-800B |
||
impact energy |
150/300J |
250/500J |
500/800J |
||
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
800mm |
||
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
||
Pre-rising angle of the pendulum |
150° |
||||
Specimen bearer span |
40+0.2mm |
||||
Round angle of the jaw |
R1-1.5mm |
||||
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||||
Angle accuracy |
0.1° |
||||
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
||||
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
||||
Dimensions (mm) |
2124 x 600 x 1340 |
2200 ×650 ×1960 |
2450 x 1200 x 2455 |
||
Net Weight (kg) |
450 |
650 |
2300 |
||
4. Features:
4.1 Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box;
4.2 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
4.3 Pendulum will automatically rising and ready for next impact action after specimen breakout.
4.4 With two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test average value, meantime the dial scale show test result as well.
4.5 Built-in micro printer to print test result.
5. Configurations:
5.1 Main unit----------1 set
5.2 Pendulum
JBS-300B |
JBS-500B |
JBS-800B |
150J/300J--2 pcs |
250J/500J--2 pcs |
500J/800J--2 pcs |
5.3 Span specimen plate (L = 40mm)----1 pc
5.5 Specimen centering plate (L = 40mm)(U, V)----1 pc
5.6 Stripping attachment----1 pc
5.7 Internal hexagonal wrench (S=12mm)---1 pc
5.9 Anchor bolts (M16x300mm)---4 pcs
5.10 Impact testing security guards----1 pc
5.11 Touching screen control panel/ PC software

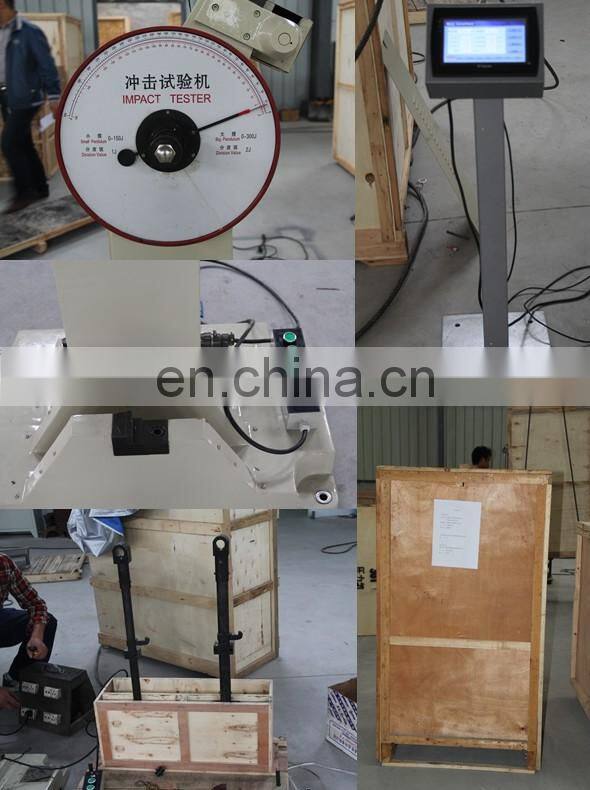

2017 years digital control 150J/300J impact testing machine for V-notch test
2017 years digital control 150J/300J impact testing machine for V-notch test

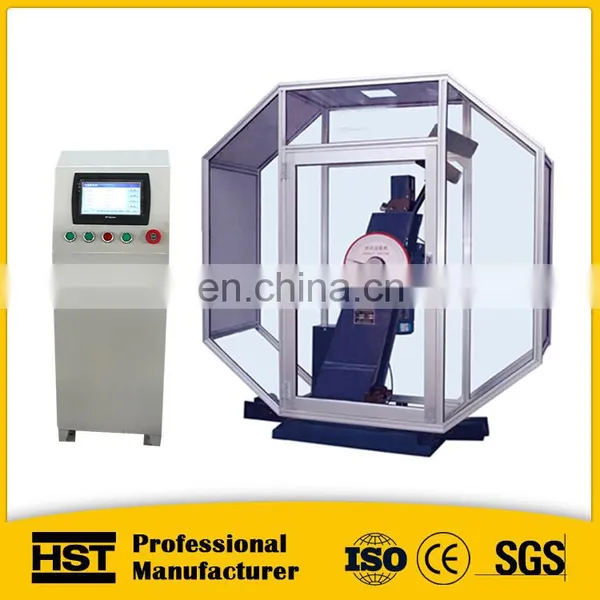

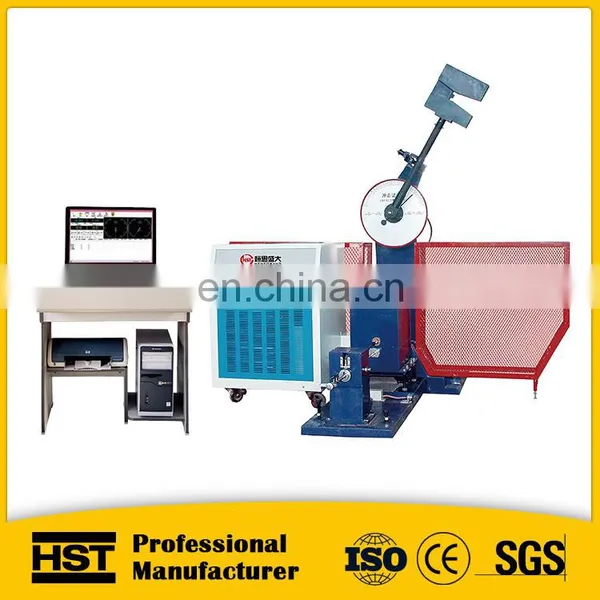

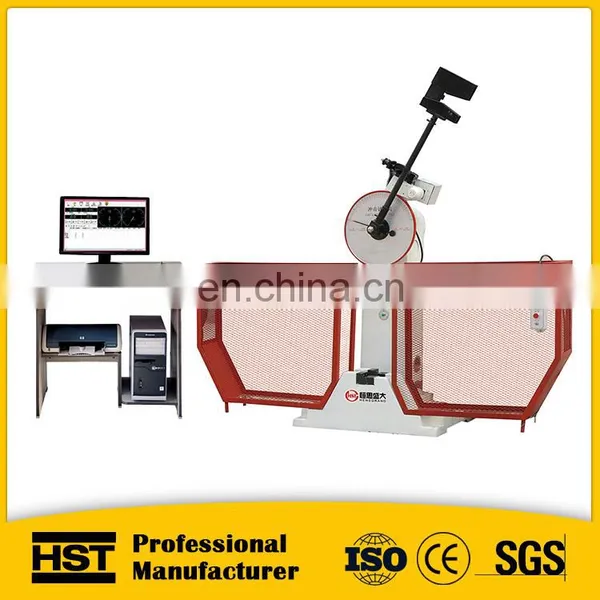

Charpy impact test equipment price/ charpy impact tester/ charpy izod impact test
One year warranty for the whole machine without the consumable parts.
A full range of services making customer satisfaction reflect our professional:
Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers’ special needs.
After-sale, we could supply door to door installation and training services according to customer requirements . Engineers are available for overseas services.
During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways. The machine parts is free of charge during the warranty period.
We are a profesional factory which produce kinds of Universal Testing Machine and Hydraulic Universal Testing Machine.
We sincerely welcome friends at home and abroad to cooperate with us.
We would like to offer you our best products and service.
