JBW-300B Computer display pendulum charpy impact testing machine
Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.

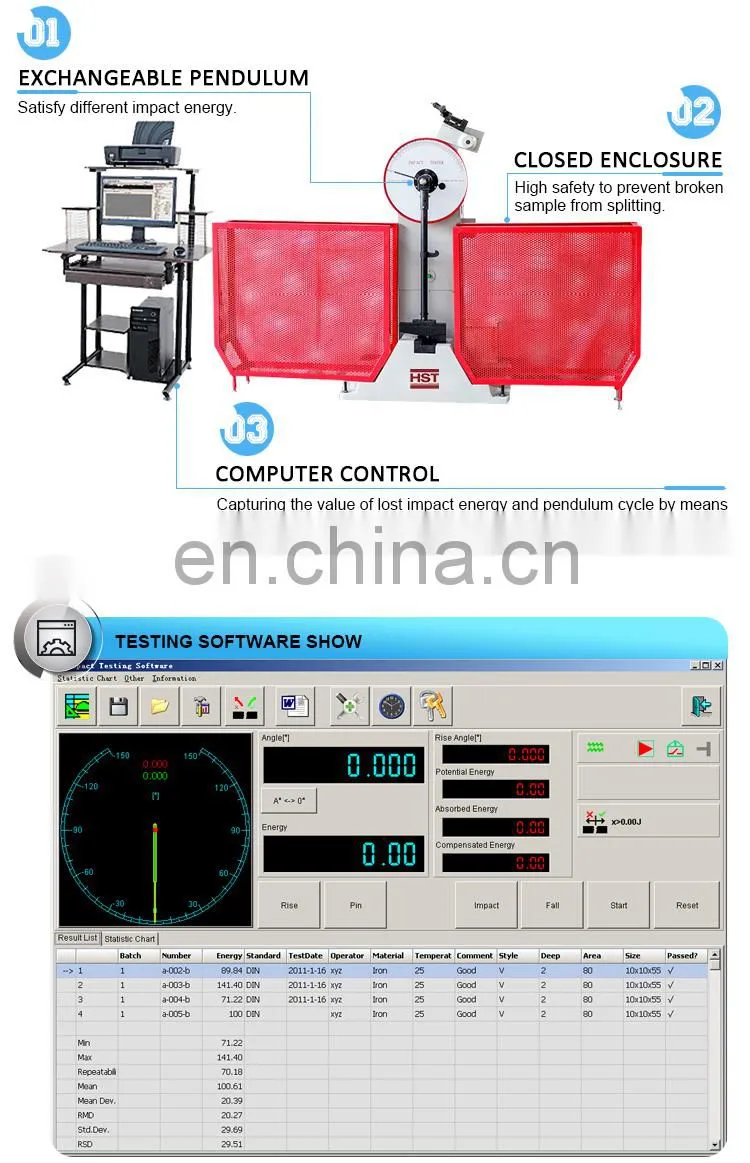

Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program,and the results can be monitored, stored and printed out. Control box or computer program control is alternative operating method.
Its a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas, but also used for the science research.
Main Technical Specifications:
Model |
JBW-300B |
JBW-500B |
JBW-700B |
Display |
computer Display semi automatic |
||
Min reading value |
1 J |
2J |
|
Impact energy |
150/300J |
250/500J |
500/750J |
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
850mm |
Impact speed |
5.2m/s |
5.4 m/s |
5.9 m/s |
Pre-rising angle of the pendulum |
150° |
||
Specimen bearer span |
40+0.2mm |
||
Round angle of bearing jaw |
R1.0-1.5mm |
||
Round angle of impact blade |
R2.0-2.5mm,(R8mm) |
||
Thickness of impact blade |
16mm |
||
Angle accuracy |
0.1° |
||
Standard specimen dimension |
10mm×10mm×55mm |
||
Sample box capacity |
10 pcs |
||
Power supply |
380V, 50Hz , 3 wire and 4phrases |
||
Dimensions (mm) |
2124 x 600 x 1340 |
2200 ×650 ×1960 |
2450*1200* 2455 |
Net Weight (kg) |
450 |
580 |
1300 |
4. Features:
4.1 The principle machine of the testing machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped
4.2 The impact cutter is installed and fixed by screws and is convenient and easy to be replaced;
4.3 Safety guard pin is arranged on the principle machine which is also provided with safety guard net

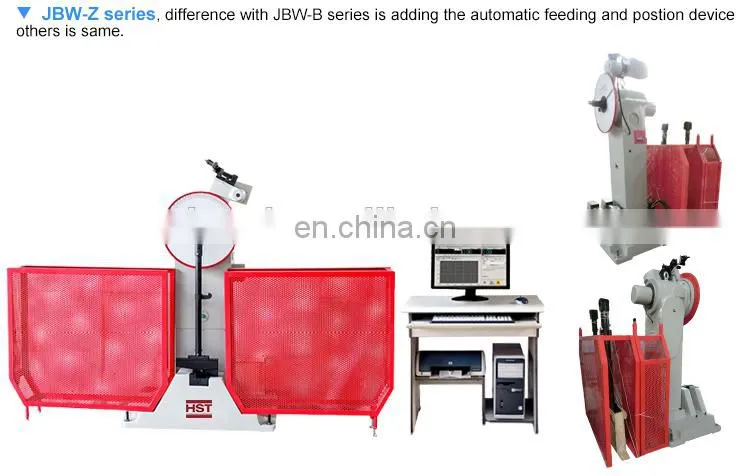

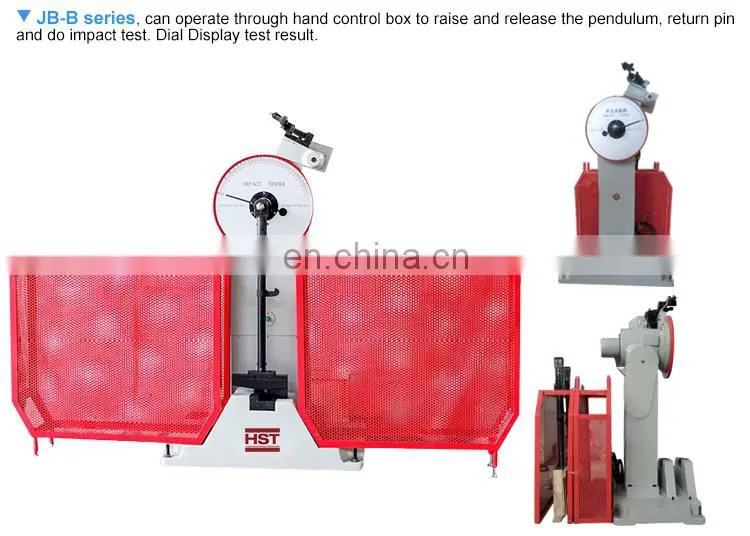

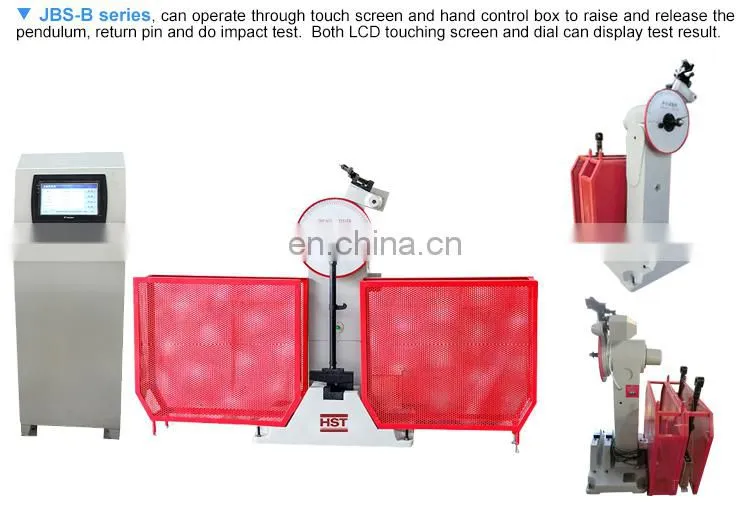

Impact Testing Machine Pics:
