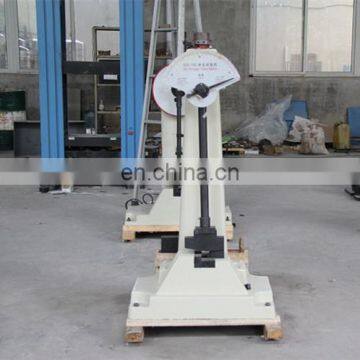

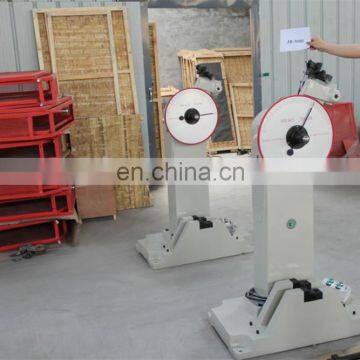

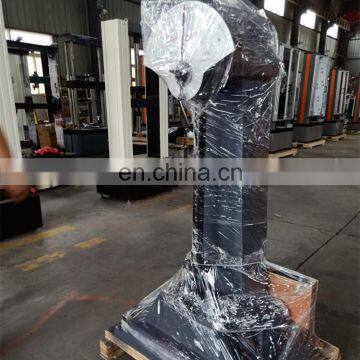

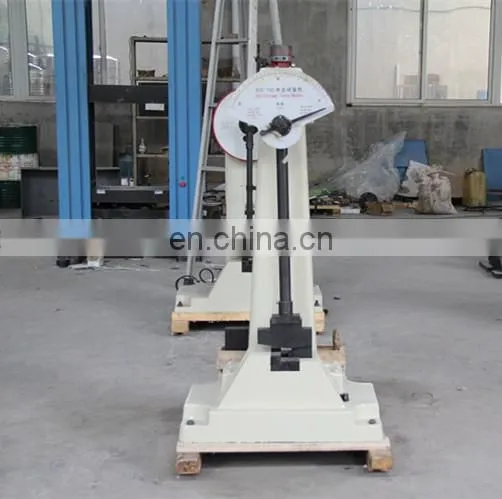

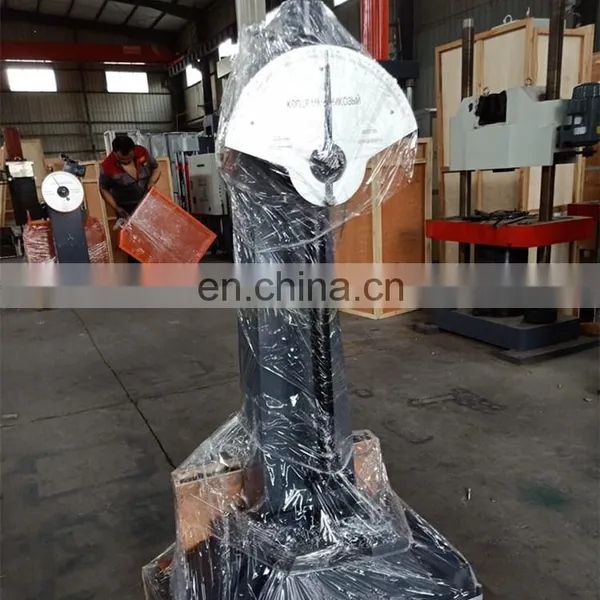

JB-300 Manual Pendulum Impact Tester
This is the supplier of testing machine, If you need to buy this , please tell me your requirements, we would like offer you satisfied product and service. Contact me, hope to cooperate with you!
1.Function
JB-300 manual pendulum impact tester is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load. It is designed according to national standards GB229-2007 “Metallic Material-Charpy Pendulum Impact Test Method” and standards of ISO148 and ASTM E23. It’s operated manually, simple and reliable.
2. Technical parameters
Model |
JB-300 |
Max. impact energy |
300J |
Range of dial scale and division value |
0-300J(2J), 0-150J(1J) |
Pendulum force(impact constant) |
M300=175.7356N.m; M150=87.8678 N.m |
Pendulum raised angle |
135° |
Distance between pendulum center to impact point |
800mm |
Impact velocity |
5m/s |
Span of specimen seat |
40mm, 70mm |
Round angle radius of striking edge |
R2.0—2.5mm |
Specimen size |
Standard: 10×10×55mm Nonstandard: 10×10×90mm |
Power supply |
3Phases 380V,50HZ,180W |
Dimensions |
1000×630×1520mm |
Weight |
320kg |
3. Application
JB-300 manual pendulum impact tester, as one of the best impact testing equipments, is widely used in many industries and areas including petrochemical industry, metallurgy, boiler and pressure vessels, steel plates, steel pipes, wind power generation, hardware, metal, casting, pumps, valves, solar energy, war industry, fasteners, diesel engines, electric power, iron towers, railways, shipbuilding, machinery manufacturing, automotive industry, aerospace industry, physical and chemical laboratory and scientific research.
