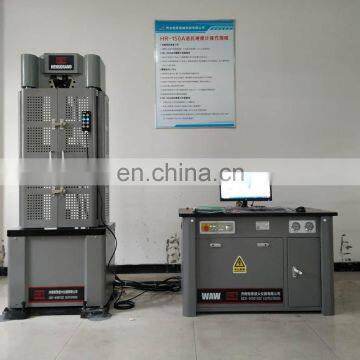

WEW-1000D 100ton 1000kn Computer Display Hydraulic Material Universal Tensile Test Equipment

1. Application

The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.

2. Standards

ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.

3. Host Features

3.1adopts that fuel tank is mounted under the host, tensile test space is located above the host, compression, bending, shearing test space is located under the host, means between beam and worktable.

3.2The structure is designed with solid four column and two screw, the whole machine has strong stability.

3.3The host is designed all-inclusively to ensure its super strong stiffness so that it can resist micro-deformation when it is loading.

3.4Middle beam adopts adjustable gap screw-nut mechanism, eliminating the gap and improving the measurement performance.

3.5 Fuel tank adopts gap sealed, improving the measurement accuracy and also extending service lifetime.

4. Overload protection

4.1 When the test force exceeds 2%-5% of the maximum test force of each file, overload protection, it will stop.

4.2 When the piston rises to the upper limit position, travel protection, pump motor will stop.

5. Main specifications
