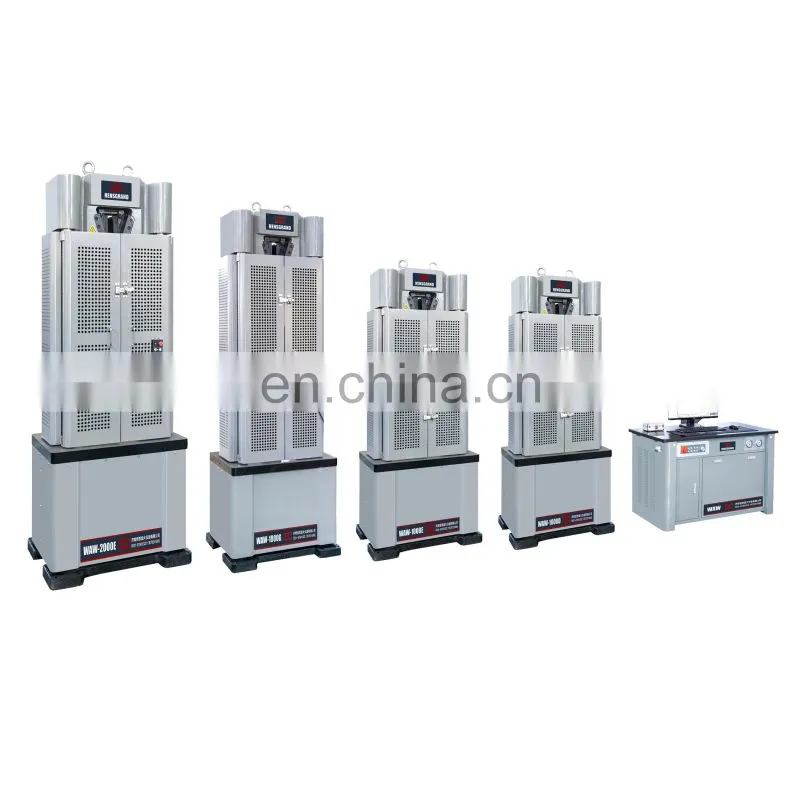

WAW-D UTM Material Electro Hydraulic Universal Testing Machine Tensile Tester
Contact: Alice Skype: hssdtest whatsapp /wechat/mobile:+8617853101076 /15098778967
1. Application
Hydraulic Universal Tensile Test Equipment is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Main specifications
Model |
WAW- 100D |
WAW- 300D |
WAW- 600D |
WAW- 1000D |
WAW- 2000D |
|||
Max load (kN) |
100 |
300 |
600 |
1000 |
2000 |
|||
Structure |
Six columns chain transmission oil cylinder underneath type |
|||||||
Control way |
computer control loading process |
|||||||
Test class |
1 class ( 0.5 class optional) |
|||||||
Test range(FS) |
2%-100% (0.4%-100% optional) |
|||||||
Test value error(%) |
≤±1% ( ≤±0.5% optional) |
|||||||
Force resolution |
0.01kN |
|||||||
Deformation effective test range (FS) |
2%~100% |
|||||||
Deformation value relative error(%) |
≤±0.5 |
|||||||
Displacement resolution (mm) |
0.01 |
|||||||
Displacement error(%) |
≤±0.5% |
|||||||
Max piston stroke(mm) |
200 |
250 |
||||||
Max piston moving speed (mm/min) |
0.5-50 Stepless speed adjusting |
|||||||
Beam adjust speed(mm/min) |
270 |
|||||||
Max tensile space (mm) |
650 (can customize) |
900 |
||||||
Max compression space (mm) |
500 |
450 |
500 |
800 |
||||
Effective space between columns (mm) |
420 |
470 |
520 |
760 |
||||
Clamp way |
Hydraulic clamp |
|||||||
Round sample clamp diameter (mm) |
Φ10-Φ32 |
Φ13-Φ40 |
Φ13-Φ50 |
φ15-70 |
||||
Flat sample clamp thickness(mm) |
0-15 |
0-15mm |
0-30mm |
0-60 |
||||
Flat sample clamp width (mm) |
75 |
85 |
||||||
Compression plate size (mm) |
φ160 |
Φ240 |
||||||

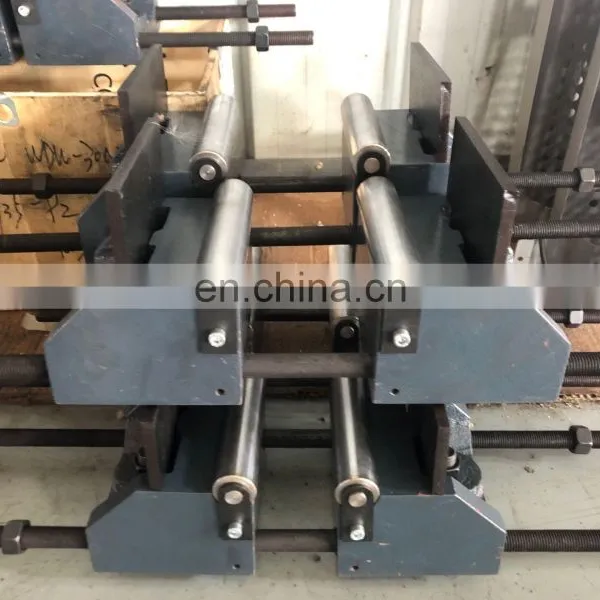

Bending grip |
Three points mode |
|||||||
Bending roller distance (mm) |
450 |
|||||||
Bending roller width (mm) |
120 |
160 |
||||||
Bending roller upper and lower diameter(mm) |
3×Φ30 |
3×Φ50 |
||||||
Compression grip (mm) |
Φ160 spherical surface Automatic alignment mode compression grip |
Φ240 |
||||||
Power supply |
380V/50Hz/three phrase four wire system |
|||||||
