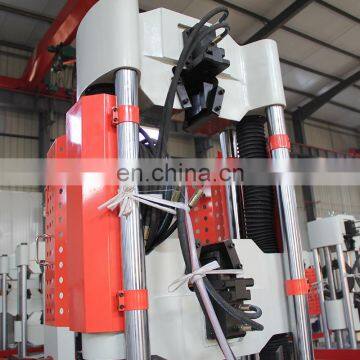

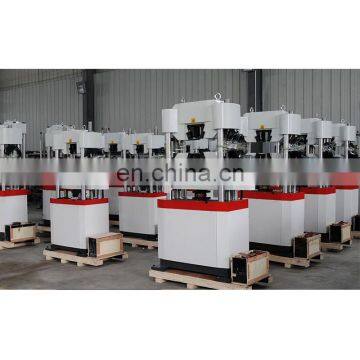

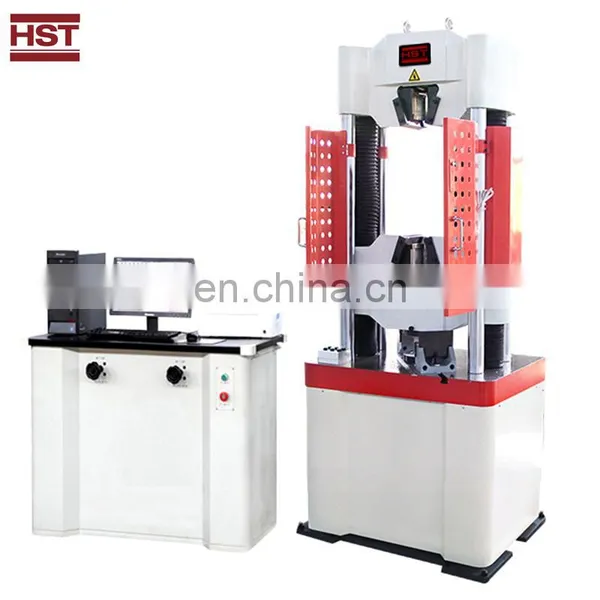

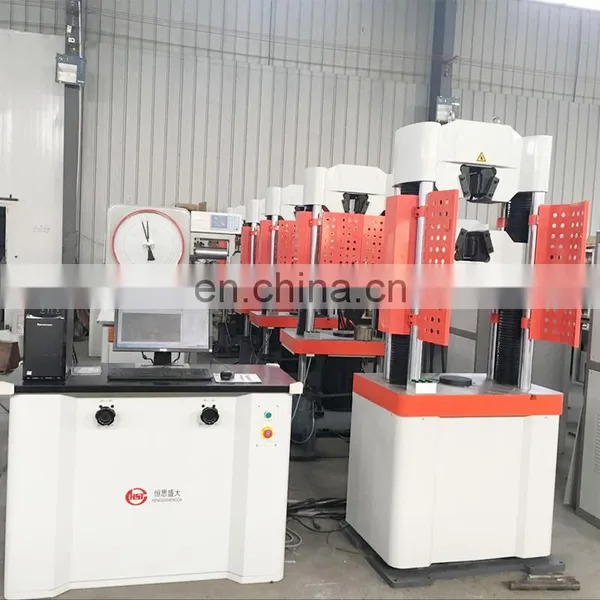

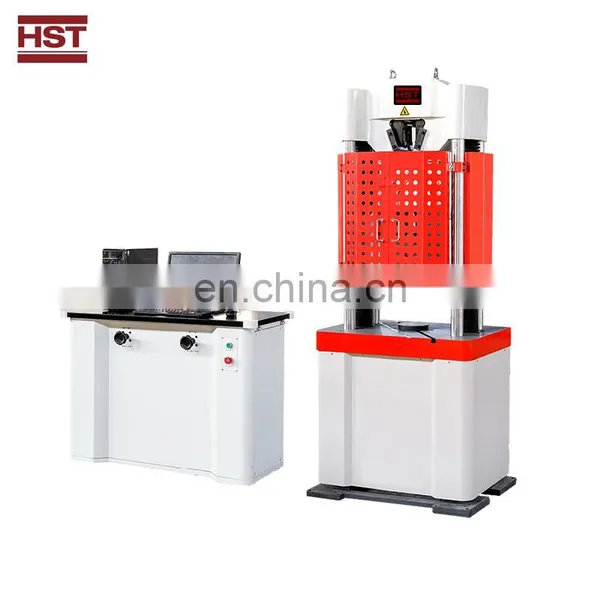

Computerized Hydraulic Universal Test Machine for Sale
US$ 7,000 - 12,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST
Place of Origin:
Shandong, China
Model Number:
WEW
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30/60/100/200T Steel Bar Hydraulic Servo Control Universal Tensile Bending Testing MachineUS$ 10,000 - 15,000MOQ: 1 Set -
Factory Price Hydraulic Mechanical Universal Tensile Testing MachineUS$ 5,000 - 6,000MOQ: 1 Set
-
Fasteners Tearing Hydraulic Testing Machine Manufacturers With 1000knUS$ 4,500 - 5,000MOQ: 1 Set
-
Cement Concrete Computerized Hydraulic Compression Universal Measuring MachineUS$ 4,500 - 5,000MOQ: 1 Set
-
Bolts Tearing Digital Hydraulic Mechanical Testing EquipmentUS$ 4,000 - 5,000MOQ: 1 Set
Brand Name
HST
Place of Origin
Shandong, China
Model Number
WEW
Power
Hydraulic
Computerized hydraulic universal test machine for sale
Product Description
Hydraulic Universal Testing Machine is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
| Model | WEW-300D | WEW-600D | WEW-1000D | WEW-2000D |
| Structure | 4 columns and 2 screws | |||
| Control way | loading process manual control,computer automatic data dealing | |||
| Max.load (kN) | 300kN | 600kN | 1000kN | 2000kN |
| Load accuracy | ≤±1% | |||
| Load range | 2%-100%FS | |||
| Load resolution | 1/300000 | |||
|
Deformation Measurement Range |
2%~100%FS | |||
| Deformation accuracy | ≤±1% | |||
|
Displacement resolution (mm) |
0.01 | |||
| Displacement error | ≤±0.5% | |||
| Max.piston stroke(mm) | 250 | |||
| Max piston moving speed | 0-90mm/min Manual adjustment | |||
| Crosshead lifting speed | 200mm/min | |||
| Max. tension test space |
750mm (can customize) |
650mm (can customize) |
650mm (can customize) |
850mm (can customize) |
| Max.Compression Test Space |
600mm (can customize) |
500mm (can customize) |
500mm (can customize) |
650mm (can customize) |
| Column clearance(mm) | 420 | 475 | 525 | |
| Clamping method | Hydraulic clamp | |||
|
Round specimen clamping range (mm) |
Φ10-Φ20,Φ20-Φ32, (Φ4-Φ10 Optional ) | Φ13-Φ26,Φ26-Φ40, (Φ6-Φ13 , Φ40-Φ50 Optional ) | Φ13-Φ26,Φ26-Φ40, (Φ6-Φ13 , Φ40-Φ50 Optional ) | Φ12-Φ30mm, Φ30-Φ50mm, Φ50-Φ70mm |
|
Flat specimen clamping range (mm) |
0-15 (15-30 Optional) | 0-15 (15-30 Optional) | 0-15 (15-30 Optional) | 0-35 mm |
|
Flat specimen clamping width(mm) |
80 | |||
| Compression plate size (mm) | φ160 | |||
| Bending roller distance(mm) | 450 | |||
| Width of bending rollers (mm) | 120 | |||
| Power supply | 3-phase,AC380V, 50Hz(can be customized) | |||
