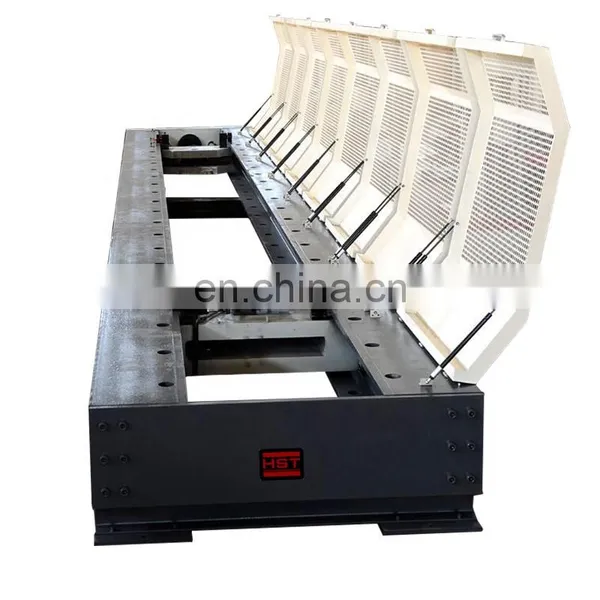

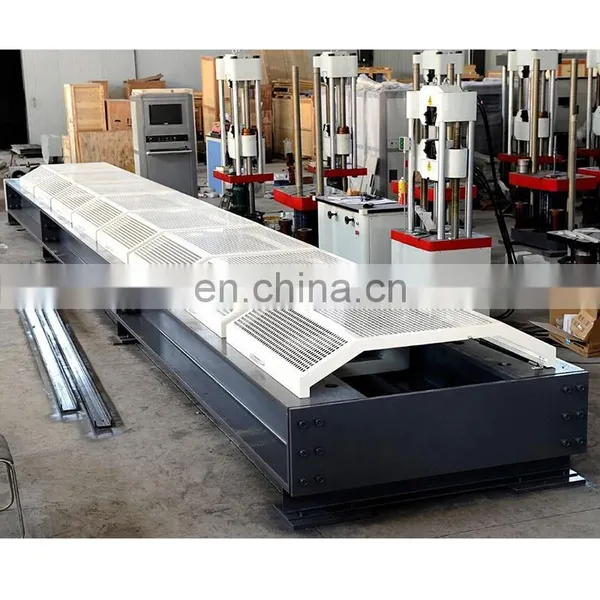

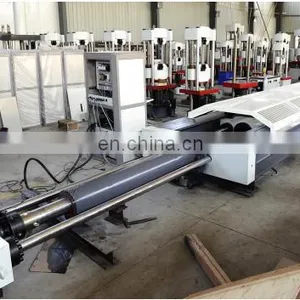

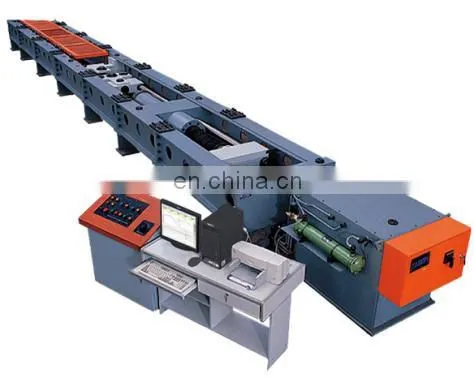

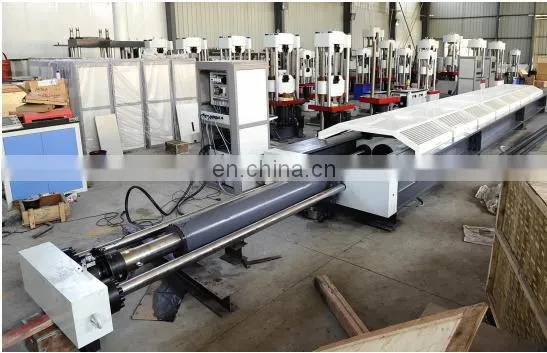

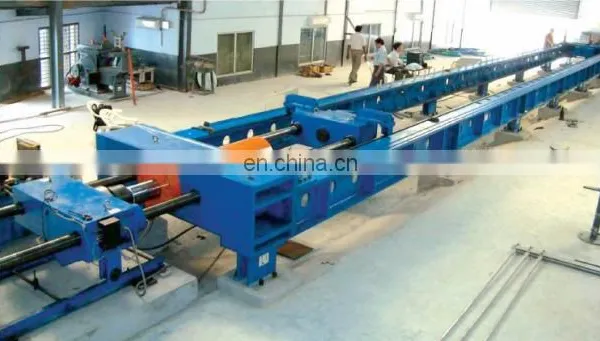

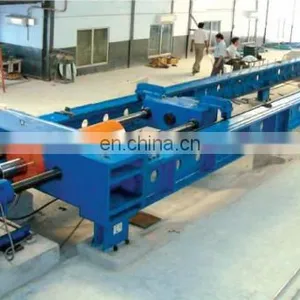

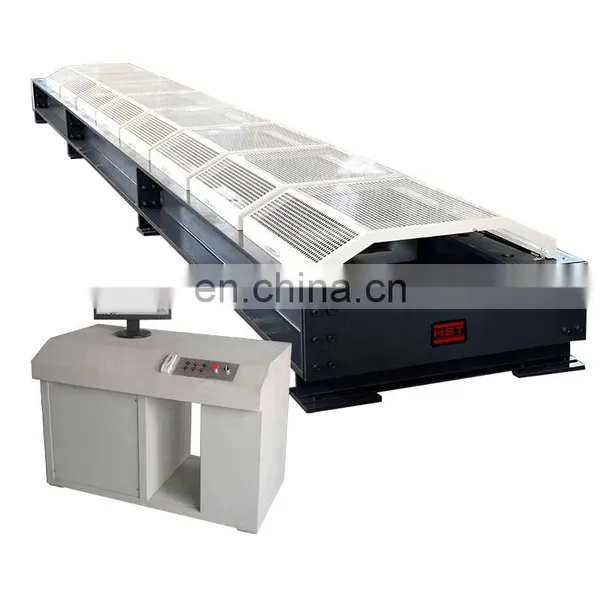

600KN hydraulic horizontal tensile strength testing machine for chain sling ropes and power fittings
Can test specimens like wire, cable, connecting rod, steel wire, steel cable, steel link, metal chain, chain assembly, spring, webbing, rope, anchor chain, hook, piping and metal fasteners are testable.
Computer Control Eletro-Hydraulic Horizontal Tensile Testing Machine suitable for testing long sample to meet requirement specified in the national standard tensile and compression tests, the process can be qualified performance verification tests of materials or products .
The machine host is frame structure, between and the front end and the rear end of the frame is tensile space, through oil cylinder moving back and forth adn pin position to adjust the test space.
Model |
WAL-600 |
WAL-1000 |
WAL-2000 |
WAL-3000 |
Max.Load(kN) |
600 |
1000 |
2000 |
3000 |
Load Range |
4%~100% of Full Scale |
|||
Load Accuracy |
±1% |
|||
Relative Error of Displacement |
±1% |
|||
Stress Speed(Mpa/s) |
1-45 |
|||
Tensile Space(mm) |
0-10000 |
|||
Piston Stroke(mm) |
500 or Customized |
|||
Method of Specimen Clamping |
Bolt way,Specially According to the Specimen that customer Provide |
|||
Control Mode |
Computer Controlled or Hand Valve Control |
|||
Effective Testing Space(mm) |
Width 750 or Customized |
|||
Fixed-way of Moving Beam |
Manual Bolt Fixed or Hydraulic Automatic Bolt |
|||
Power Supply |
220v±10%,50/60Hz |
|||
