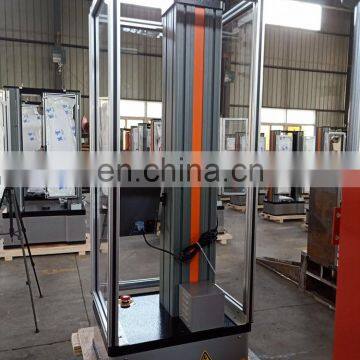

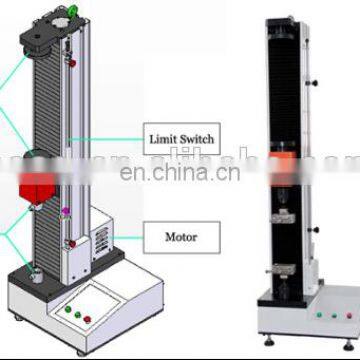

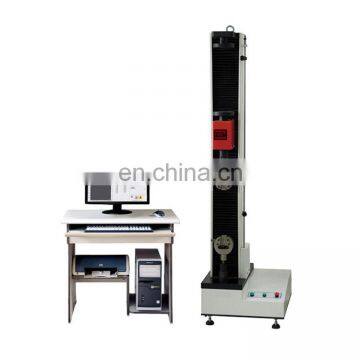

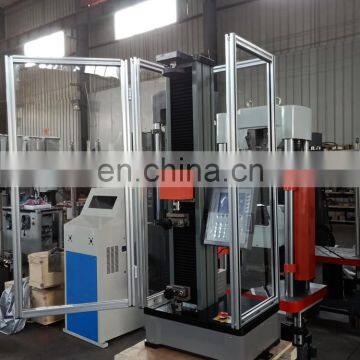

WDW-05 500n Plastic Film Tensile Tester with Computer and Printer
US$ 1,100 - 1,600
/ Set
1 Set(Min. Order)
- Qingdao China
- T/T Credit Card
You May Like
-
WDS -1 2 3 5kn CE Digital Electronic Universal Manual Tensile Test Machine
-
WDW Series 10kn to 600kn Computer Automatic Electronic Universal Tensile Material Testing Equipment Price
-
WDW Computerized Electronic Paper Universal Tensile Testing Machine
-
Cheap price 500N digital display Electronic Universal Test and measuring Machine
-
Hot Twin column Tensile Testers price
-
Metal Plastic Spring Textile Rubber Tensile Universal Testing Machine
Product Details
| Brand Name | HST | Place of Origin | Shandong, China | |
| Model Number | WDW | Power | Electronic |
Product Description
Product Description
1.Application:
Plasic film tensile Tester is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
Model | WDW-05 WDW-05E | WDW-1 WDW-1E | WDW-2 WDW-2E | WDW-3 WDW-3E | WDW-5 WDW-5E |
Max. load | 0.5KN | 1KN | 2KN | 3KN | 5KN |
Structure | Single column double spaces | ||||
Control method | computer control | ||||
Load accuracy | 1 class ( 0.5 class optional ) | ||||
Load range | 2%~100%F·S/ (0.4%-100% FS optional) | ||||
Displacement Resolution | 0.01mm | ||||
Test speed | 0.05-500mm/min(can be customized) | ||||
Tensile space | 600mm(can be customized) | ||||
Compression space | 600mm(can be customized) | ||||
Power supply | AC220V±10%,50Hz(can be customized) | ||||
Grips | Wedge type, plate type and other grips as consumer’s demand | ||||
Dimension | 425*400*1315mm | ||||
Weight | 90kg | ||||
