WDW-100kn Electronic Material Universal Tensile Strength Testing Machine Price

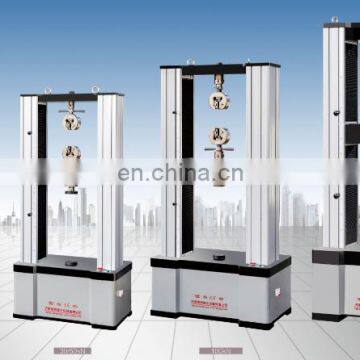

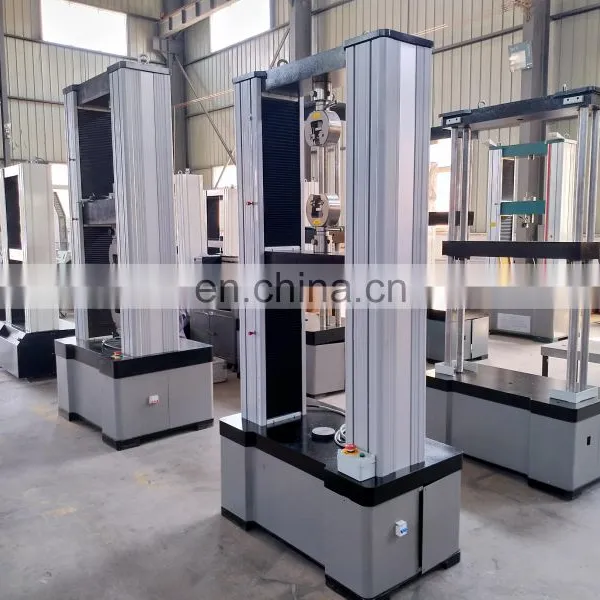

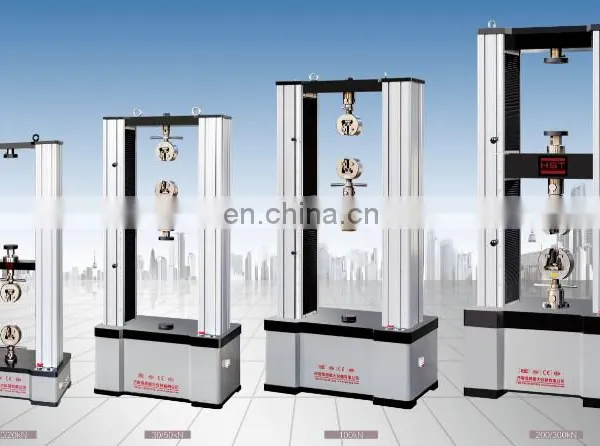

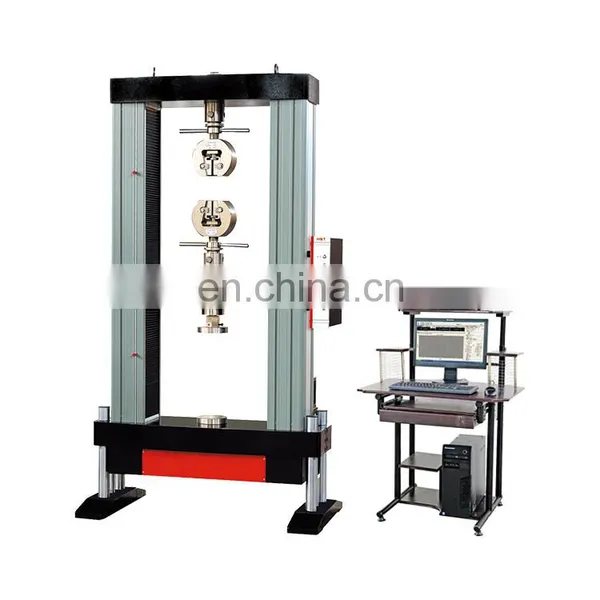

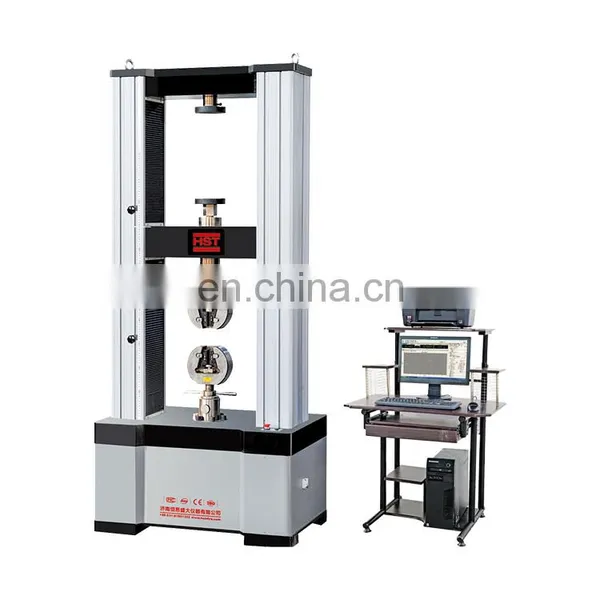

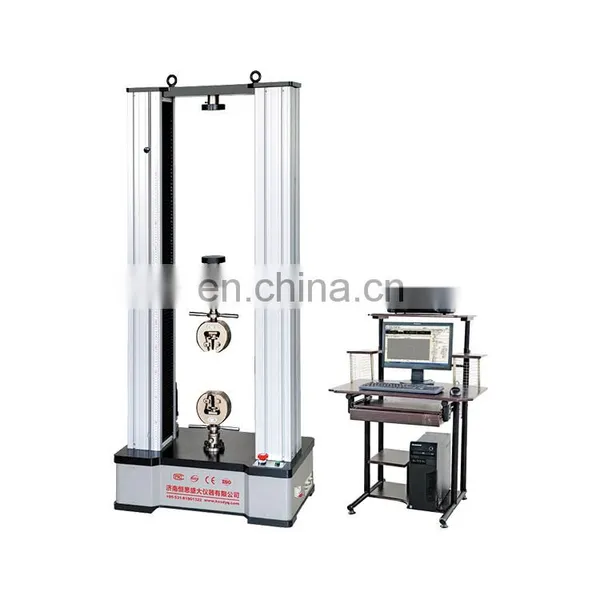

WDW-100kn Electronic Material Universal Tensile Strength Testing Machine Price photo-1
WDW-100kn Electronic Material Universal Tensile Strength Testing Machine Price photo-2
WDW-100kn Electronic Material Universal Tensile Strength Testing Machine Price photo-3
WDW-100kn Electronic Material Universal Tensile Strength Testing Machine Price photo-4
WDW-100kn Electronic Material Universal Tensile Strength Testing Machine Price photo-5
WDW-100kn Electronic Material Universal Tensile Strength Testing Machine Price photo-6
US$ 5,500 - 6,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST
Place of Origin:
Shandong, China
Model Number:
WDW-50/100
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HST
Place of Origin Shandong, China
Model Number WDW-50/100
Power Electronic

WDW-100kn electronic material universal tensile strength testing machine price

WDW-100kn electronic material universal tensile strength testing machine priceWDW-100kn electronic material universal tensile strength testing machine price

WDW-100kn electronic material universal tensile strength testing machine price









Product Description





1 Application:

WDW series computerized electronic universal testing machines are designed and manufacture according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.



 2 speicification



Model

WDW-50

WDW-50E

WDW-100

WDW-100E

Max. Load(KN)

50

50

100

100

Load accuracy

Class 1

Class 0.5

Class 1

Class 0.5

Load range

2%~100%F·S

0.2%~100%F·S

2%~100%F·S

0.2%~100%F·S

Structure

Four-column floor or desk model,

(upper is compression and lower is tensile)

Cover

All aluminum alloy

Control method

Computer control

Load resolution

1/300000

Rang of deformation

4%-100%FS

Resolution of deformation

0.04um

Accuracy of displacement

Within±0.5%of indicating load

Resolution of displacement

0.01mm

Test speed(mm/min)

0.05-500 stepless arbitrary setting

Tensile space(mm)

700(can be customized)

Compression space(mm)

700(can be customized)

Test width(mm)

500(can be customized)

550(can be customized)

Workbench thickness(mm)

58

68

Base height(mm)

435

460

Working environment

Room temperature 10℃~30℃,relative humidity≤80%

Power supply

AC220V±10%,50Hz/60Hz(can be customized)

Grips

Wedge type, plate type and other grips as consumer’s demand



Dimension(mm)

850*480*1865

1000*550*2076
