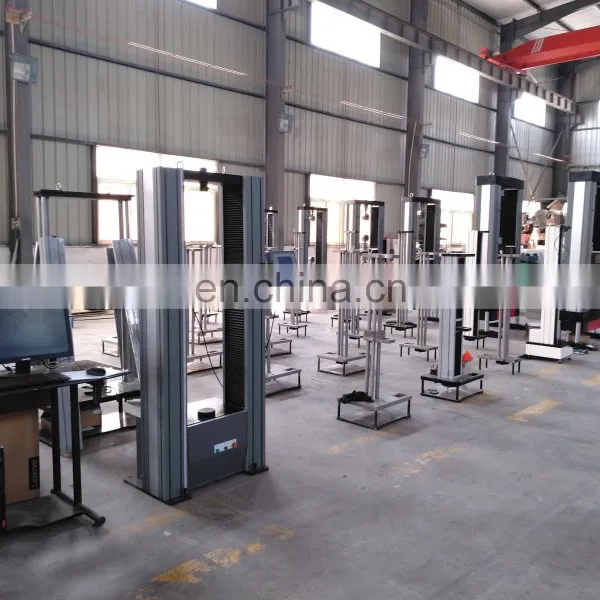

WDS-100 Digital Display electronic testing equipment tensile testing machines
1. Application
WDS series digital display electronic universal testing machines are designed and manufactured according to ASTM,
ISO, DIN, GB and other international standards. Applicable for wide range of material for tensile, compression,
bending, shearing and low cycle test. It is for metal, rubber, plastic, spring, textile, and components testing. Widely used
in corresponding industries, research and development, test institutes and training centers etc.
2. Specification
Model | WDS-100 |
Structure | Four-column floor or desk model, (upper is compression and lower is tensile) |
Max. Load(kN) | 100 |
Load accuracy | ISO 7500 Class 1 |
Load range | 2%~100%F·S |
Load resolution | 1/ 50000 |
Resolution of displacement | 0.01mm |
Test speed(mm/min) | 0.05-500 stepless arbitrary setting |
within ±1% / ±0.5% of set speed | |
E-Tensile space(mm) | 700 (can be customized) |
E-Compression space(mm) | 700 (can be customized) |
D-Test width(mm) | 550 (can be customized) |
F-Beam travel distance(mm) | 1150 |
H-Workbench thickness(mm) | 68 |
I-Base height(mm) | 460 |
Power supply | AC220V±10%,50Hz/60Hz(can be customized) |
