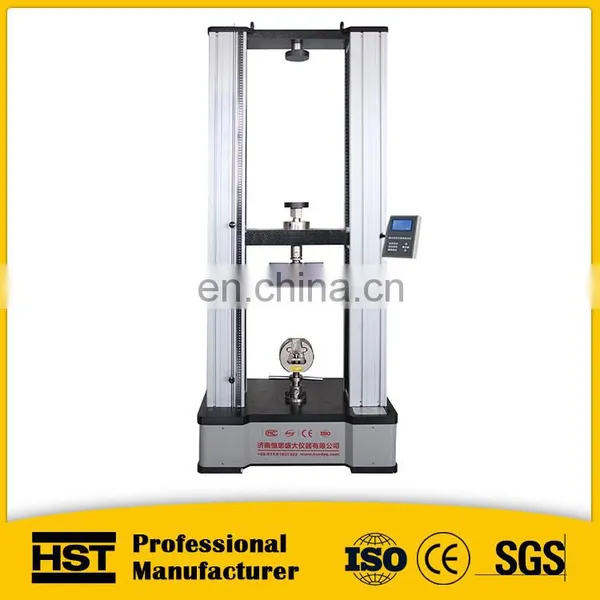

WDS 10KN digital tensile testing machine
1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
Model | WDS-10 |
Max. Load | 10KN |
Structure | Four-column Floor Model (Upper Is Tensile And Lower Is Compression) |
Control Method | Single Chip Control |
Load Accuracy | 1 Class |
Load Range | 2%~100%F·S |
Displacement Resolution | 0.04um |
Test Speed | 1~500mm/min |
Tensile Space | 700mm(Can be customized) |
Compression Space | 700mm(Can be customized) |
Test Width | 400mm(Can be customized) |
Power Supply | AC220V±10%, 50Hz (Can be customized) |
Grips | Wedge Type, Plate Type And Other Grips As Customers’ Demand |
Weight | 290 KG |
Dimension | 700*450*1775mm |
