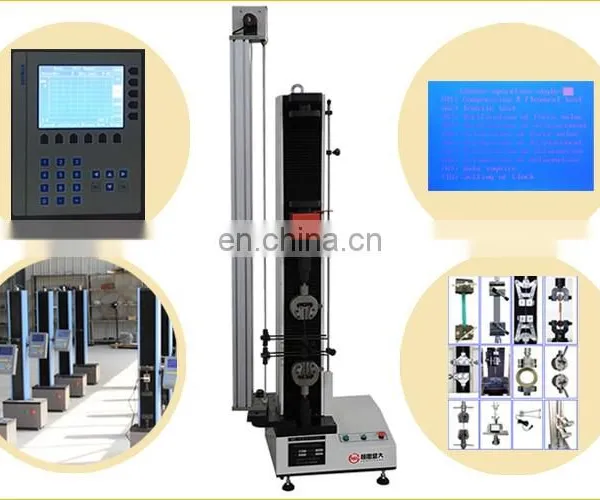

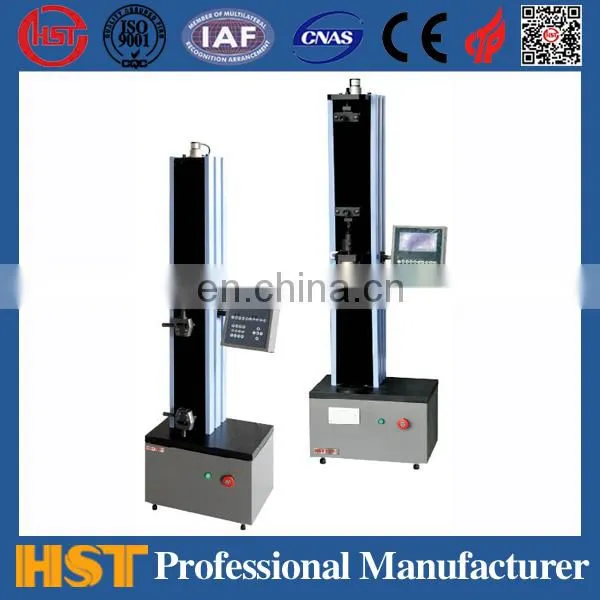

WDS-5 5kn single column digital display tensile testing machine
Application:
WDS series digital display electronic universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tensile, compression, bending, shearing and low cycle test. It is for metal, rubber, plastic, spring, textile, and components testing. Widely used in the corresponding industries, research and development, test institutes and training centers etc.
Main Specifications
Model |
WDS-02 |
WDS-05 |
WDS-1 |
WDS-2 |
WDS-3 |
WDS-5 |
|
Max. Load |
0.2kN 20kgf 44.8lbf |
0.5kN 50kgf 112lbf |
1kN 100kgf 224lbf |
2kN 200kgf 448lbf |
3kN 300kgf 672lbf |
5kN 500kgf 1120lbf |
Load accuracy |
≤±1% |
|||||
Load range |
2%-100% of full scale |
|||||
Disp. resolution |
0.01mm |
|||||
Test speed |
0.05-500mm/min|0.001968-19.685in/min |
|||||
Tensile space |
750mm|30in |
|||||
Dimension |
550×350×1580mm |
|||||
Power supply |
220V, 1ph, 0.5KW |
|||||
Weight (kg) |
150KG|330lb |
|||||
Function Features:
1. Automatic calibration: system can automatically realize the accuracy of the calibration value.
2. After the sample broken, automatic stop.
3. Automatic display: Real-time display testing force, displacement, testing speed, peak value,
testing status on one LCD.
4. Automatic return: beam automatic return to initial position when testing finished.
5. Breakage judgment: sample after fracture,beam automatic stop moving.
6. Limiting protection: Program control and Mechanical limiting protection.
7. Overload protection:When more than 3~5% of the rated load device automatically stop working
8. Automatic calculation: automatic calculation area after input sample diameter (round); Width,
thickness (flat), sample gauge ect.
Configurations:
