Home > Products > Hydraulic pump > D955-0121-C New Closed-loop Radial Piston Pump for Moog

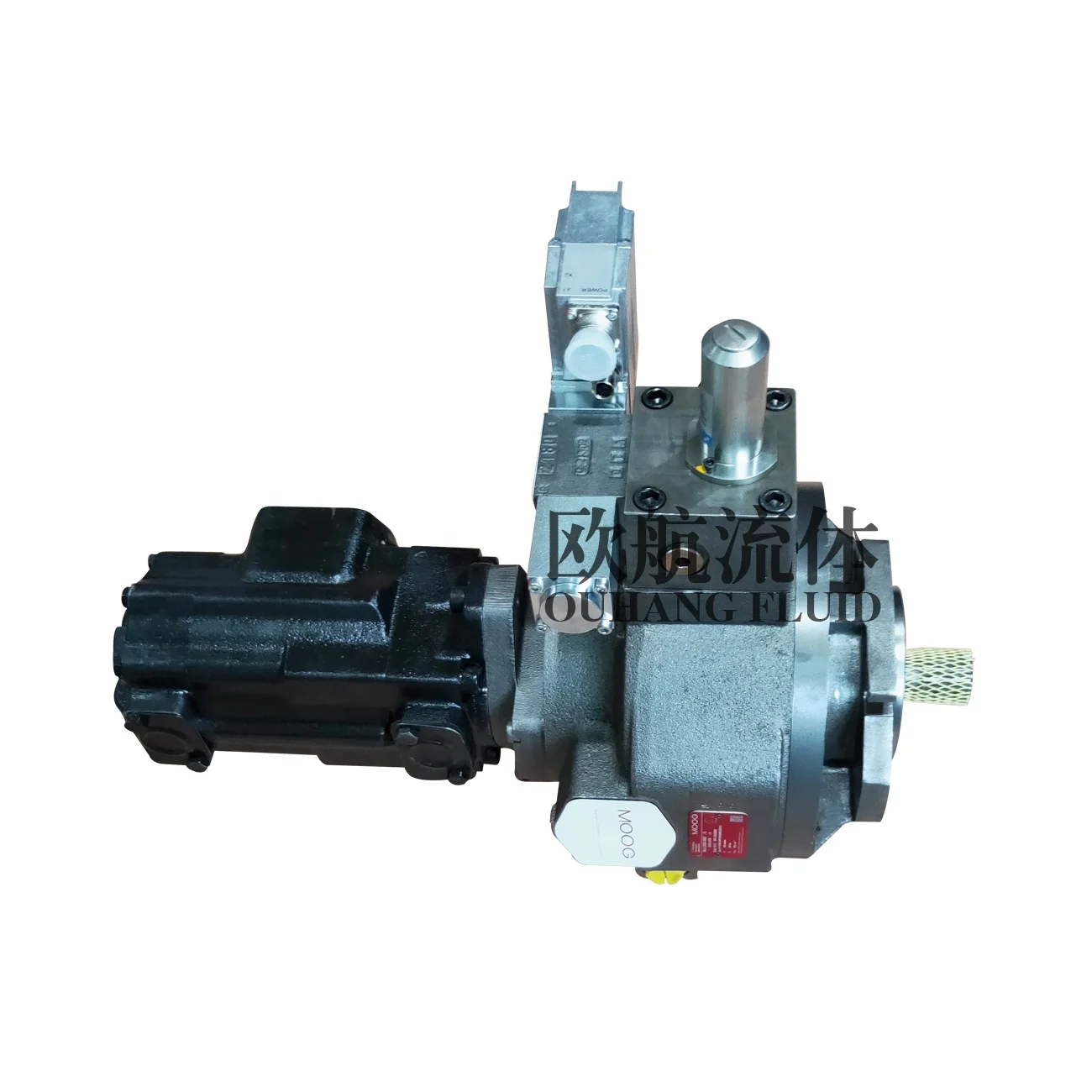

D955-0121-C New Closed-loop Radial Piston Pump for Moog
US$ 68,000 - 98,000
/ Set
1 Set(Min. Order)
- Any port
- T/T Credit Card
You May Like
Product Details
| Brand Name | M-O-O-G | Model Number | D955-0121-C | |
| Structure | Piston Pump | |||
Product Description
Product Description
The new radial piston pump RKP is equipped with a new closed-loop proportional valve with embedded electronics. This new closed-loop piston pump can adjust, adjust and troubleshoot flow and pressure. The new RKP of the radial piston pump can be digitally controlled through the CANopen interface, or it can be operated as a pure analog device under the control of analog command signals. This gives it maximum flexibility and is compatible with multiple PLC structures.
Characteristic
-Seven sizes from 19 to 140 cm / rev (1.2 to 8.5 in / Rev)
-Multiple control options
-Axial mounted multi pump configuration
-Suitable for various hydraulic fluids
-Standard pressure series 280bar (4.000p5) and high pressure series suitable for mineral oil
- 350bar(5,000psi)
-Fast response time
-Simple design
-Good suction characteristics
-Low pressure fluctuation
- low noise.
Technical Parameters
Displacement(cm/rev] | 19 | 32 | 45 | 63 | 80 | 100 | 140 | ||||||
weight[kg](Ib) | 28(62) | 38 (84) | 38(84) | 65(143) | 65(143) | 71 (156) | 109 (240) | ||||||
Moment of inertia[kg cm2] | 17.7 (6.05) | 61.0(20.8) | 61.0(20.8) | 186.3 (63.7) | 186.3(63.7) | 186.3(63.7) | 380.0(130.0) | ||||||
Pipe connection standard specifications“S" SAE 3000psi | 3/4" | 1" | 1* | 1 1/4" | 1 14" | 1 1/2 " (Suction tube) 1 1/4 "(pressure) SAE 6000psi | 2 12 " (Suction tube) 1 1/2 "(pressure) SAE 6000 psi | ||||||
Recommended outer diameter as discharge pipe (Lightweight specifications) [mm] (in) | 15(5/8") | 18 (3/4) | 18(3/4") | 22(7/8) | 22(7/8*) | 22(7/8*) | 22(7/8*) | ||||||
Flow rate at absolute inlet pressure of 1 bar (14psi) [min-1] | 2900 | 2900 | 2100 | 2300 | 1800 | 1800 | 1800 | ||||||
Ambient temperature range | -15C to + 60% (5 "to 140 * F) | ||||||||||||
Maximum case pressure | Absolute pressure 2 bar (29psi) (measured pressure 1 bar) | ||||||||||||
Exhaust pipe | The discharge pipe must be installed to ensure that the RKP body is always filled with pressure liquid. The absolute pressure of the discharge port must not exceed 2 bar (29 ps). The end of the tube must be below the liquid level. There must be no filters or check valves in the drain. | ||||||||||||
Drive type | Use coupled direct drive | ||||||||||||
Related Products
Packing&Shipping
In order to ensure that the product is not damaged during transportation, we will choose to use high-hardness cardboard boxes or wooden boxes to package the product according to the volume of the product, and adopt protective measures such as foam anti-collision and wooden frame fixing to ensure the safe and non-destructive delivery of the goods to the greatest extent.
