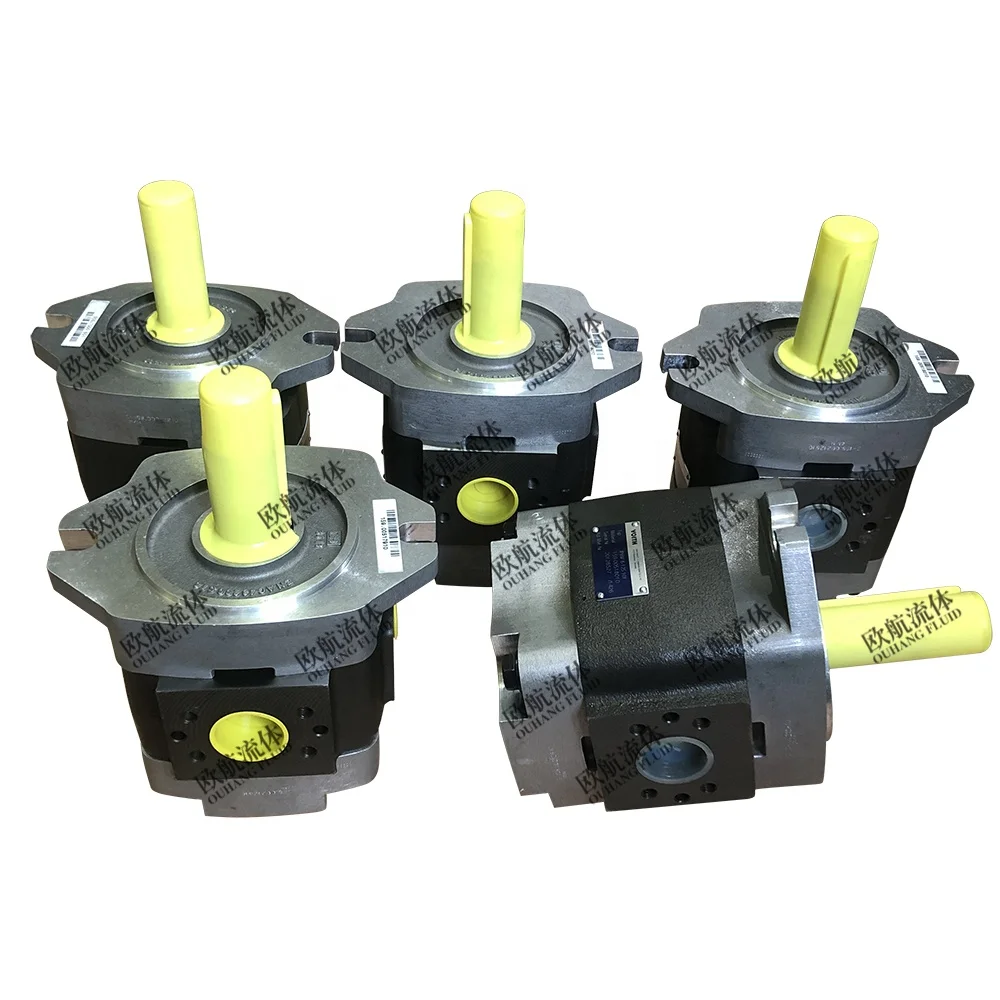

Low Noise Gear Pump IPV IPVP IPC IPVAP Internal Gear Pump
US$ 4,600 - 40,000
/ Set
1 Set(Min. Order)
- Any port
- T/T Credit Card
You May Like
-
CML Servo Variable Piston Pump CM-38-S-21-00 Replace Yuken Series Piston Pump
-
Taiwan CML CM-59-X-2109-00 Servo Variable Piston Pump Replace Yuken Series Hydraulic Pump
-
D957 Series Radial Piston Pump or Hydraulic Pump D957-0001/D D957-0035
-
For Nissei Injection Molding Machine Daikin Axial Piston Variable Displacement Pump HV166SAES-LX-11-30N05
-
Kawasaki Variable Plunger Pump K4V270-119L-EPC-11E Hydraulic Pump
-
Radial Piston Pump Parts D951/D952D/D953/D954/D955/D956/D957series
Product Details
| Brand Name | / | Place of Origin | Germany | |
| Model Number | IPV/IPVP/IPC/IPVAP | |||
| Structure | Gear Pump |
Product Description
Product Description
Features
gear pumps IPVP, IPV, IPC IPVAP series products, its high-pressure internal gear pump is used for variable speed transmission. As the pump rotates, oil (usually hydraulic oil) is drawn between the external gear and the internal gear. The smooth meshing of the two gears of the gear pump ensures excellent self-priming capability. Radially sealed by meshing teeth and crescent blocks. In the axial direction, an axial support disc is used to form a nearly gapless seal to form a pressure cavity.
gear pump features:
--long lasting;
-High volumetric efficiency;
-High overall efficiency;
-Minimal flow and pressure fluctuations;
-Low noise;
-Compact structure;
-Light weight;
-Wide speed range;
-Good oil absorption characteristics;
-Wide viscosity range;
-Simple maintenance;
-Can be combined with multiple pumps;
-Suitable for variable speed transmission (variable flow);
PS: can be used as hydraulic motor (energy recovery) in special cases;
Pump unit:
-IPVP gear pumps of the same size or different sizes can be combined into multiple pumps;
-All sizes of the relevant pump displacements have double or triple pumps; quad pumps must be designed by Turbo H + L Hydraulic;
--Pumps are arranged in increasing order of frame size and displacement.

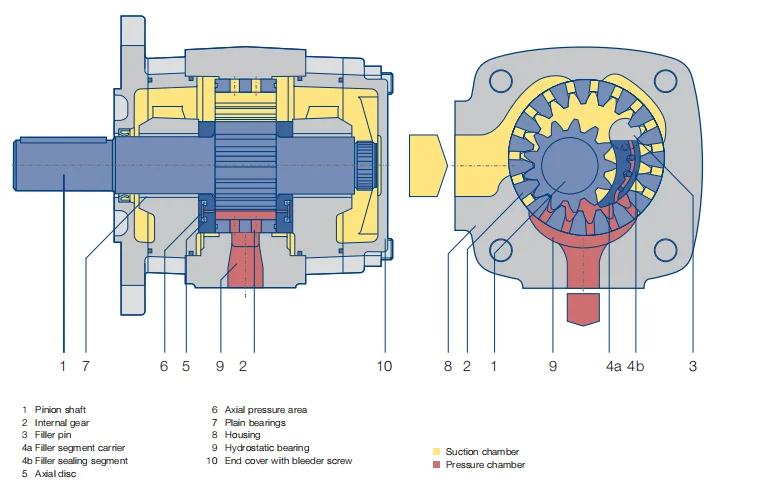

gear pump design
gear pumps IPVP, IPV, IPC IPVAP series，German gear pump is a type of hydraulic pump that not only has very low operating noise, low pressure fluctuations, but also high operating efficiency. The main features of gear pumps are the gap compensation device between the internal gear and the pinion and the capacity optimization. Involute gear.
Technical Parameters
Technical Data | ||
Design | internal gear pump with radial and axial sealing gap compensation | |
Type | IPV | |
Mounting types | SAE hole flange; ISO 3019/1 or VDMA hole flange; ISO 3019/2 | |
Line mounting | SAE suction and pressure flangeJ518 C Code61 | |
Sense of rotation | right or lft-hand rotation | |
Mounting position | any | |
Input pressure | 0.8...3 bar absolute pressure (at start short time 0.6 bar) | |
Pressure fluid | HLP mineral oils DIN 51524, part2or3 | |
Viscosity range | 10..300 mm's" (cS) | |
Pemissible start viscosity | max.2000 mm's-' (cSt) | |
Permissible temperature of the pressure fluld | -20... +80°C | |
Required purity of the pressure fluid | class 19/ 17/ 14 (ISO 4406), class 8 (NAS 1638) | |
Filtration | Filration quotientmin ≥75, recommendedBo≥100 longer Ife) | |
Permissible ambient temperature | -20... +60°C | |
Related Products
Packing&Shipping
In order to ensure that the product is not damaged during transportation, we will choose to use high-hardness cardboard boxes or wooden boxes to package the product according to the volume of the product, and adopt protective measures such as foam anti-collision and wooden frame fixing to ensure the safe and non-destructive delivery of the goods to the greatest extent.
