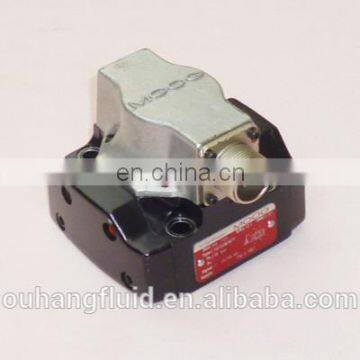

For MOOG servo valve 760-713A
USD $100 - $101
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- Any port
- T/T Credit Card
You May Like
Product Details
Brand Name: | MO-OG | Pressure: | High Pressure |
Product Description
Product Description
The 760 series flow control valves are three-way, preferably four-way, throttle valves. They are high-performance two-stage designs that cover a range of 1 to 15 GPM of rated flow at 1000 psi. The output stage is a closed center, the four pilot stages are symmetrical double nozzles and baffles, driven by double air gap, dry torque motor. The mechanical feedback of spool position is provided by cantilever spring. The valve is simple in design, durable and long in service life. These valves are suitable for electro-hydraulic position, speed, pressure or force control systems with high requirements for dynamic response.
Technical Parameters
Model.. Type | 760- ...... | ||||||||||||
Mounting pattern | ISO 10372-04-04-0-92 | ||||||||||||
Valve body version | 4-way | ||||||||||||
Pilot stage | 2-stage with spool-bushing assembly Nozzle / Flapper, Highflow | ||||||||||||
Pilot connection | optional, Intermnal or external | X | |||||||||||
Rated flow | (+ 10 %) at △PN,=1,000 psi | ||||||||||||
Standard | [gpm] | 1.0 | 2.5 | 5.0 | 4.0 | 5.0 | |||||||
High response | [gpm] | 1.0 | 2.5 | 5.0 | 5.0 | 6.0 | |||||||
Response time* | Standard | [ms] | 6.0 | 6.0 | 6.0 | 6.0 | 7.0 | ||||||
High Response | [ms] | 4.0 | 4.0 | 4.0 | 7.0 | 8.0 | |||||||
Threshold* | [%] | 0.5 | |||||||||||
Hysteresis* | [%] | 3.0 | |||||||||||
Null shift | at △T=100℉ | [%] | <2.0 | ||||||||||
Null leakage flow* | max | [gpm] | 0.4 to 0.61 | ||||||||||
Pilot leakage flow* | typical | [gpm] | 0.26 |
Related products
Packing&Shipping
In order to ensure that the product is not damaged during transportation, we will choose to use high-hardness cardboard boxes or wooden boxes to package the product according to the volume of the product, and adopt protective measures such as foamanti-collision and wooden frame fixing to ensure the safe and non-destructive delivery of the goods to the greatest extent.
