HONGJUN 800w Water Cooled Spindle Motor Dia 65mm With ER11 Collet

HONGJUN 800w Water Cooled Spindle Motor Dia 65mm With ER11 Collet thumbnail-1
HONGJUN 800w Water Cooled Spindle Motor Dia 65mm With ER11 Collet thumbnail-2
HONGJUN 800w Water Cooled Spindle Motor Dia 65mm With ER11 Collet thumbnail-3
HONGJUN 800w Water Cooled Spindle Motor Dia 65mm With ER11 Collet thumbnail-4
HONGJUN 800w Water Cooled Spindle Motor Dia 65mm With ER11 Collet photo-1
HONGJUN 800w Water Cooled Spindle Motor Dia 65mm With ER11 Collet photo-2
HONGJUN 800w Water Cooled Spindle Motor Dia 65mm With ER11 Collet photo-3
HONGJUN 800w Water Cooled Spindle Motor Dia 65mm With ER11 Collet photo-4
US$ 70 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HONGJUN
Place of Origin:
Sichuan, China
Model Number:
GDZ65-800, 800w Water Cooled Spindle Motor
Contact Supplier Request Quote Chat Now
Sichuan Hongjun Science And Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HONGJUN
Place of Origin Sichuan, China
Model Number GDZ65-800, 800w Water Cooled Spindle Motor
Weight 5KG

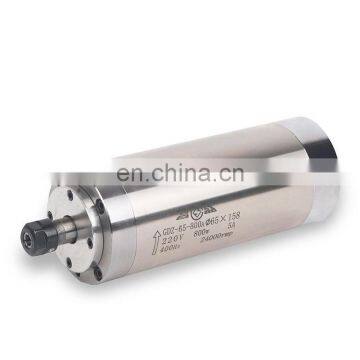

HONGJUN 800w Water Cooling Spindle Motor Dia 65mm with ER11 Collet

Tip
This kit is AC220V input voltage, if need AC380V input, pls contact seller before order!

HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet

ATT : AC220V is ok,but need use inverter for output,can`t use household electricity directly

Material : spindle cover is 304 stainless steel,water jet is high pressure casting aluminum pipe,copper coil

Power connection

GX16 waterproof aviation plug,(1/2/3)connect inverter(U/V/W)in turn,4 connect inverter earth wire

Brand

Changsheng

Model

GDZ-65-800

Spindle power

0.8KW

Spindle speed

0-24000rpm

Working voltage

AC220V

Torque

0.62Nm

Frequency

400HZ

Cooling type

Water cooling

Spindle diameter

65mm

Collet

ER11

Concentricity

0.0025mm(2.5 micron)

Taper runout

0.01mm

Bearing

7004*2  7002*2

Current

5A

Size

65*125M

HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet
HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet
HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet
HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet

  HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet

HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet

HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet

HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet

HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet

HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet

HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet



VFD Connection

HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet

Certificates

HONGJUN 800w Water Cooled Spindle Motor Dia 65mm with ER11 Collet







Custom Duty

1. Import duties,taxes and charge
We don't accept return the goods ,because of  Import duties,taxes and chargee are not included in the price or shipping charge.There charges are the buyer's responsibity.
2. High risk cost
Delivery by DHL to Afghanistan, Burundi, Iraq, Libya, Mali, Niger, Syria, South Sultan, Yemen,need to
pay high risk cost
3. Please check with your country's customs office to determine what these additional costs will be prior to buying.
4. We usually mark the goods for a low cost on the customs declaration ,but we can't guarance no tax charge
as it is depends on your country's policy

Return

1. All items sold are brand new.

2. Received a wrong item/Defective item : please give us photo and email us within 7 days from the date
you receive the product.
3. Exchange item : pls returned within 7 days from the date you receive the product,the buyer pays shipping fees.
Items must be in their original condition, not worn, or altered. We will not reimburse the return shipping.
4.We don't accept return : if you refused the goods because of import duties,taxes and charge

Feedback

Once you have received your item, please leave feedback for us as this will inform us that you have received your items.

Your positive feedback and 5 Star ratings: after you receive your order, we will give you a positive feedback.
BEFORE give Neutral or negative feedback : pls contact us immediately,so that we can satisfactorily address  your concerns.



Contact

Phone: +86 028 86646871

Mobile/WhatsApp/Wechat: +86-17608018607(Jack yan)

Email: jacky(at)

Skype: jacky_3119

QQ: 2170298168
Working time: EST 9:00am ~ 6:00pm
