1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor

1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor thumbnail-1
1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor thumbnail-2
1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor thumbnail-3
1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor thumbnail-4
1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor thumbnail-5
1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor photo-1
1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor photo-2
1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor photo-3
1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor photo-4
1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor photo-5
US$ 85 - 95 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HONGJUN
Place of Origin:
Sichuan, China
Model Number:
GDZ80F-1.5, 1.5kw Air Cooled Spindle Kit
Contact Supplier Request Quote Chat Now
Sichuan Hongjun Science And Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HONGJUN
Place of Origin Sichuan, China
Model Number GDZ80F-1.5, 1.5kw Air Cooled Spindle Kit

1.5KW ER16 Electric AC Spindle Synchronous Air Cooling Spindle Motor

Tip
This kit is AC220V input voltage, if need AC380V input, pls contact seller before order!


1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor



Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)

Brand

Changsheng

Model

GDZ-80-1.5F

Spindle power

1.5KW

Spindle speed

0-24000rpm

Working voltage

AC220V

Torque

0.62Nm

Frequency

400HZ

Cooling type

Air cooling

Spindle diameter

80mm

Collet

ER16

Concentricity

0.0025mm(2.5 micron)

Taper runout

0.01mm

Bearing

7004*2  7002*2

Current

8A

Size

80*195MM

1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor

1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor

1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor

1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor


  1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor

 1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor







1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor

1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor

1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor

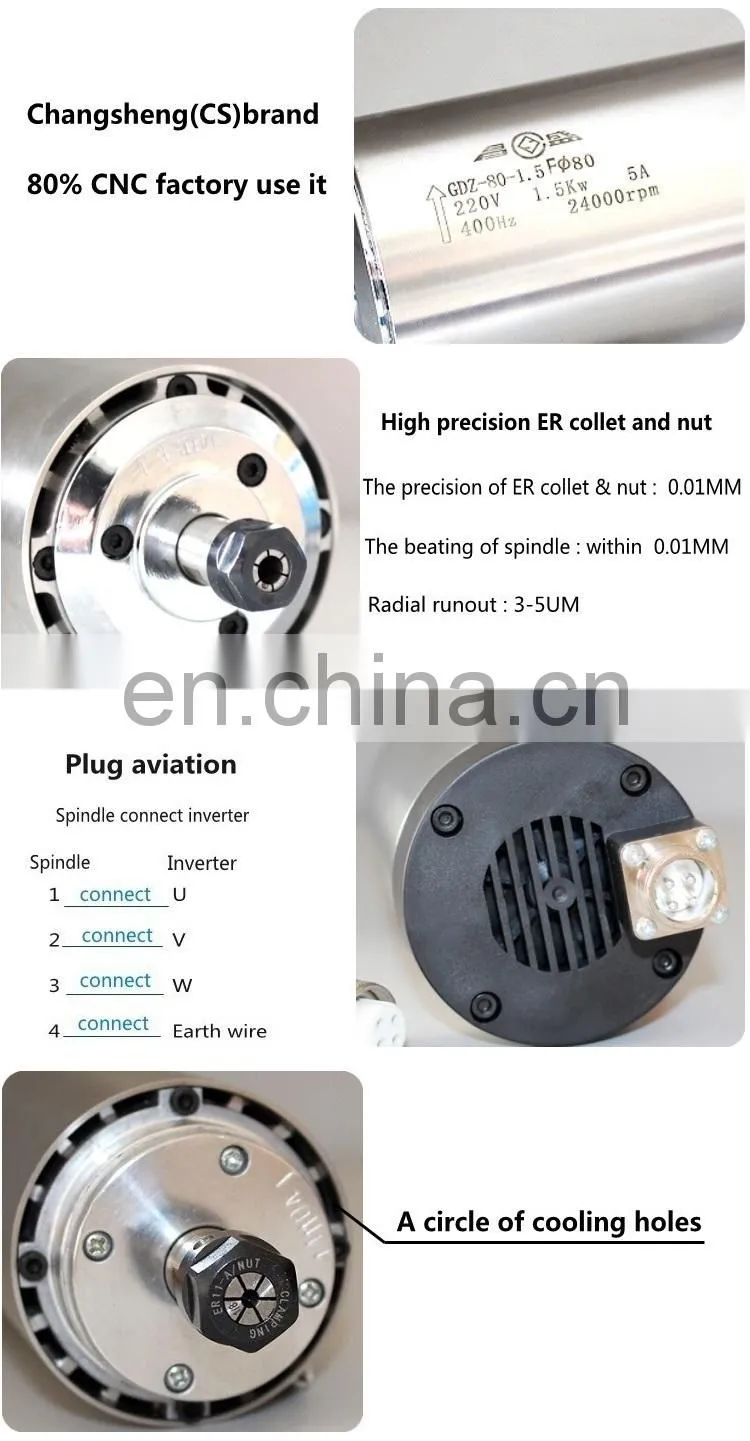

VFD Connection

1.5KW ER11 Electric AC Spindle Synchronous Air Cooling Spindle Motor
