Chinese Made Spindle Motor 1.5kw ER11 Round Air Cooled Electric AC Spindle Motor and 220V 1.5KW Inverter

Chinese Made Spindle Motor 1.5kw ER11 Round Air Cooled Electric AC Spindle Motor and 220V 1.5KW Inverter thumbnail-1
Chinese Made Spindle Motor 1.5kw ER11 Round Air Cooled Electric AC Spindle Motor and 220V 1.5KW Inverter thumbnail-2
Chinese Made Spindle Motor 1.5kw ER11 Round Air Cooled Electric AC Spindle Motor and 220V 1.5KW Inverter thumbnail-3
Chinese Made Spindle Motor 1.5kw ER11 Round Air Cooled Electric AC Spindle Motor and 220V 1.5KW Inverter thumbnail-4
Chinese Made Spindle Motor 1.5kw ER11 Round Air Cooled Electric AC Spindle Motor and 220V 1.5KW Inverter thumbnail-5
Chinese Made Spindle Motor 1.5kw ER11 Round Air Cooled Electric AC Spindle Motor and 220V 1.5KW Inverter photo-1
Chinese Made Spindle Motor 1.5kw ER11 Round Air Cooled Electric AC Spindle Motor and 220V 1.5KW Inverter photo-2
Chinese Made Spindle Motor 1.5kw ER11 Round Air Cooled Electric AC Spindle Motor and 220V 1.5KW Inverter photo-3
Chinese Made Spindle Motor 1.5kw ER11 Round Air Cooled Electric AC Spindle Motor and 220V 1.5KW Inverter photo-4
Chinese Made Spindle Motor 1.5kw ER11 Round Air Cooled Electric AC Spindle Motor and 220V 1.5KW Inverter photo-5
US$ 220 - 230 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HONGJUN
Place of Origin:
Sichuan, China
Model Number:
GDZ80F-1.5, 1.5kw Air Cooled Spindle Kit
Contact Supplier Request Quote Chat Now
Sichuan Hongjun Science And Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any china port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HONGJUN
Place of Origin Sichuan, China
Model Number GDZ80F-1.5, 1.5kw Air Cooled Spindle Kit

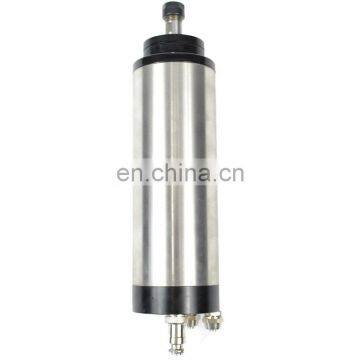

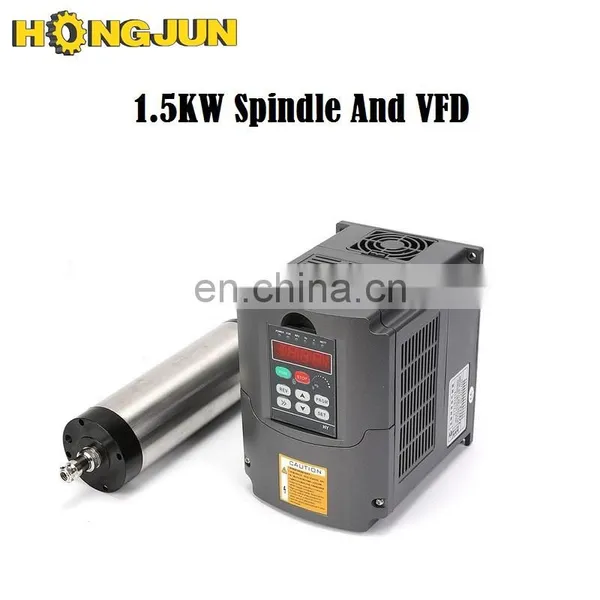

Chinese made spindle motor 1.5kw ER11 round air cooling electric AC spindle motor and 220V 1.5KW inverter

Tip
This kit is AC220V input voltage, if need AC380V input, pls contact seller before order!

Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter

1 x 1.5KW CNC Spindle Motor

1 x 1.5KW Inverter




Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter



Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)

Brand

Changsheng

Model

GDZ-80-1.5F

Spindle power

1.5KW

Spindle speed

0-24000rpm

Working voltage

AC220V

Torque

0.62Nm

Frequency

400HZ

Cooling type

Air cooling

Spindle diameter

80mm

Collet

ER16

Concentricity

0.0025mm(2.5 micron)

Taper runout

0.01mm

Bearing

7004*2  7002*2

Current

8A

Size

80*195MM

Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter

Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter

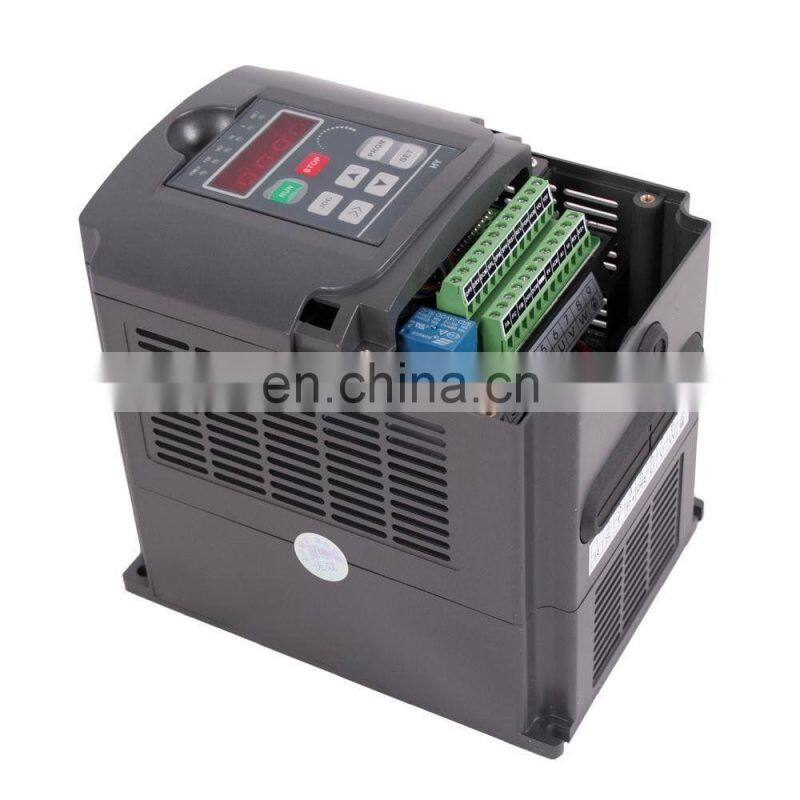

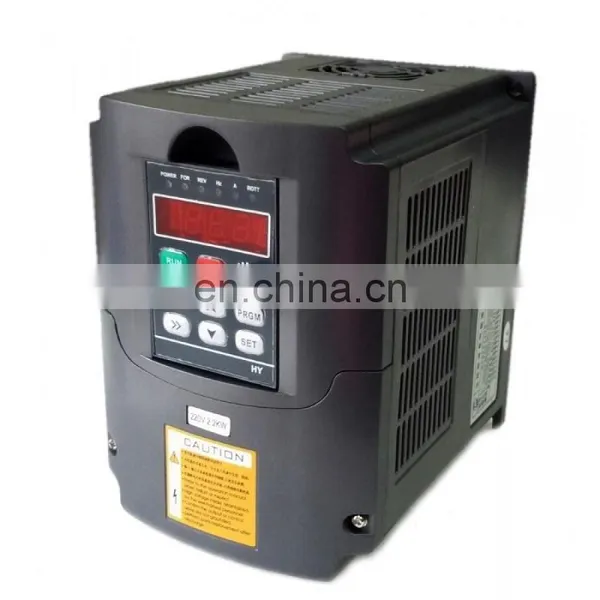

2.Frequency inverter 1.5KW AC 220V
Brand : BEST brand
1) Input Voltage: 220V
2) Output Voltage: 0-220V
3) Input Frequency: 50-60Hz
4) Output Frequency: 0-1000 Hz
5) Input Phase:  single phase
6) Output Phase: 3 phase
7) Warranty: 1 year
8) Output currency:11A
Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter

Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter






  Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter

 Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter







Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter

Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter

Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter







VFD Connection

Chinese made spindle motor 1.5kw ER11 round air cooled electric AC spindle motor and 220V 1.5KW inverter





Custom Duty

1. Import duties,taxes and charge
We don't accept return the goods ,because of  Import duties,taxes and chargee are not included in the price or shipping charge.There charges are the buyer's responsibity.
2. High risk cost
Delivery by DHL to Afghanistan, Burundi, Iraq, Libya, Mali, Niger, Syria, South Sultan, Yemen,need to
pay high risk cost
3. Please check with your country's customs office to determine what these additional costs will be prior to buying.
4. We usually mark the goods for a low cost on the customs declaration ,but we can't guarance no tax charge
as it is depends on your country's policy

Return

1. All items sold are brand new.

2. Received a wrong item/Defective item : please give us photo and email us within 7 days from the date
you receive the product.
3. Exchange item : pls returned within 7 days from the date you receive the product,the buyer pays shipping fees.
Items must be in their original condition, not worn, or altered. We will not reimburse the return shipping.
4.We don't accept return : if you refused the goods because of import duties,taxes and charge
