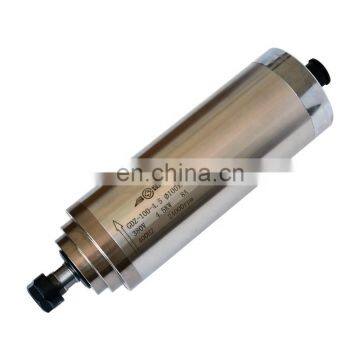

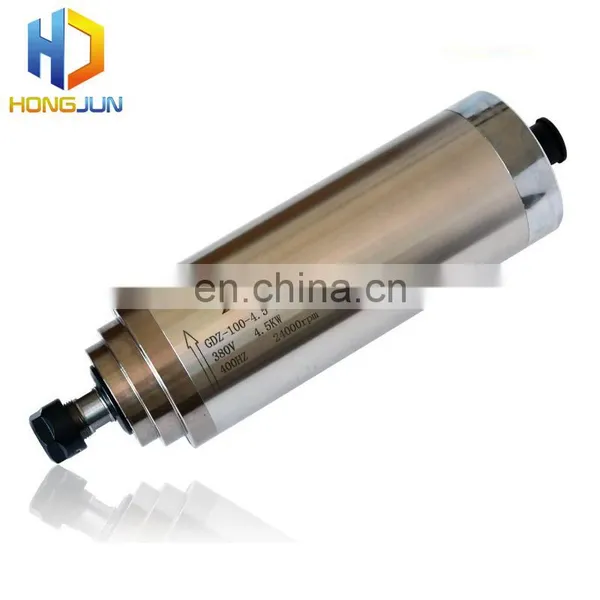

GDZ-100-4.5 water cooling 4.5KW spindle motor 380V 100MM diameter ER20 for cnc router
Material : spindle cover is 304 stainless steel,water jet is high pressure casting aluminum pipe,copper coil

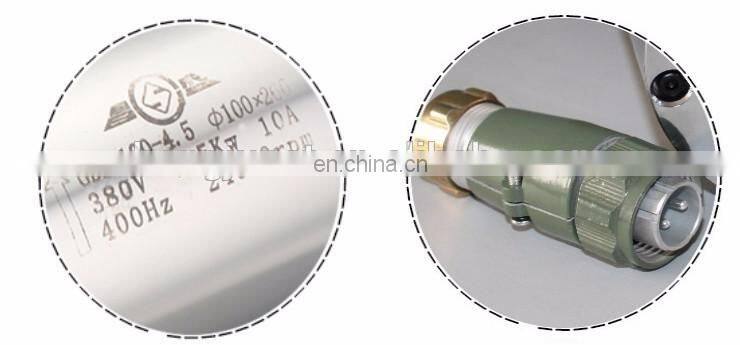

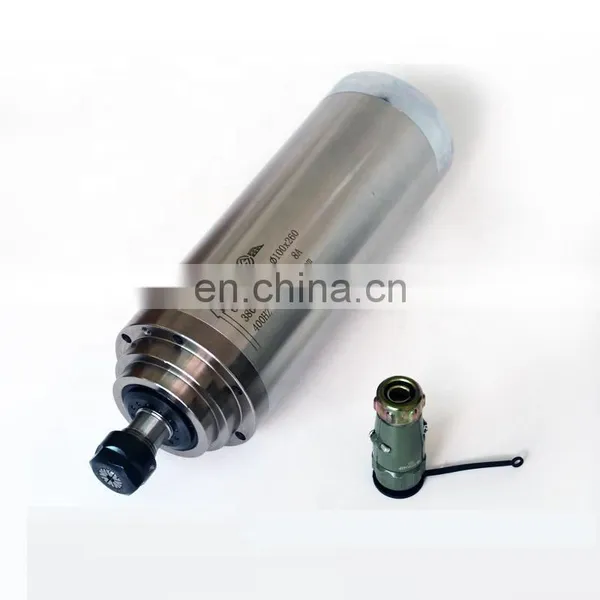

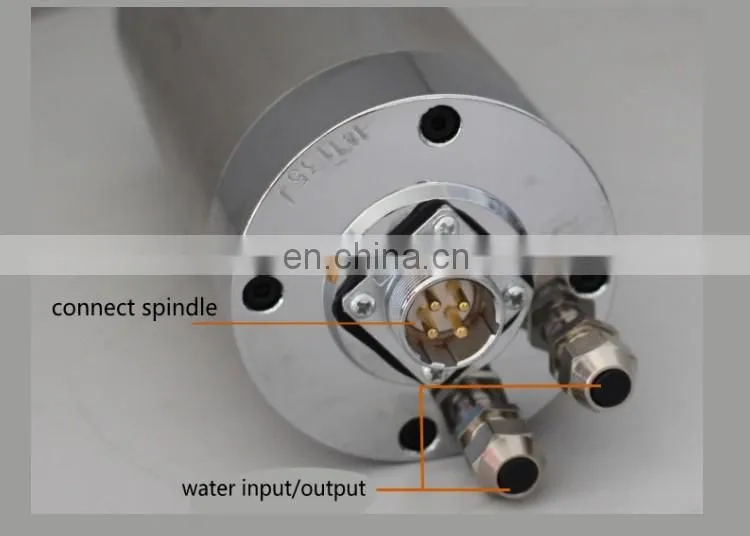

Power connection

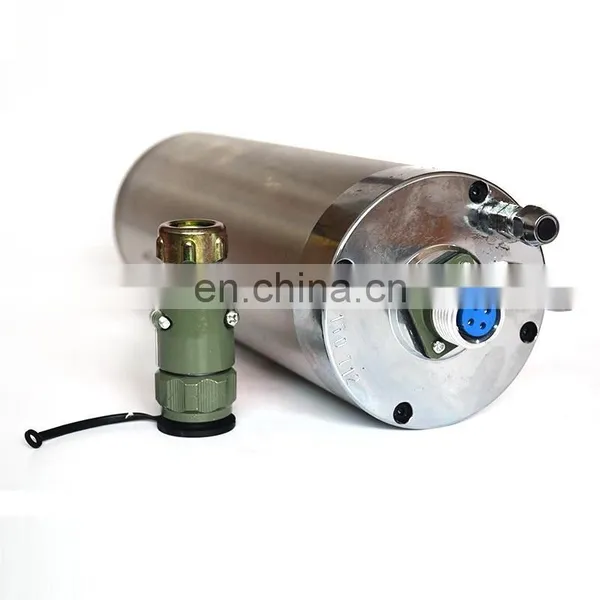

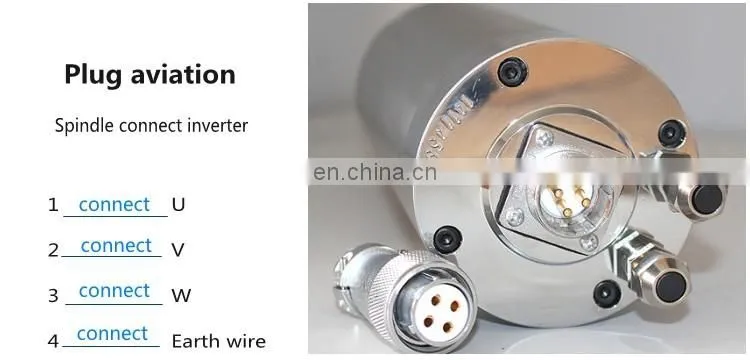

GX16 waterproof aviation plug,(1/2/3)connect inverter(U/V/W)in turn,4 connect inverter earth wire
Model |
GDZ-100-4.5 |
Rev(rpm) |
24000 |
Power(kw) |
4.5 |
Voltage(V) |
380(2200V is optional) |
Current(A) |
10A |
Frequency(HZ) |
400 |
Cool type |
water cooling |
Diameter(mm) |
100 |
Lubricate |
Grease |

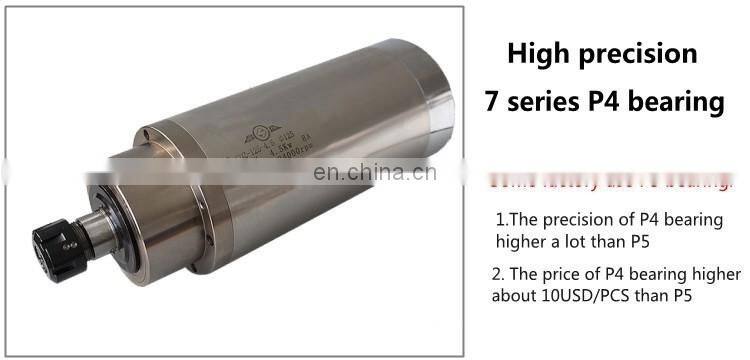

Bearing |
7005C P4*2 7003C P4*2 |

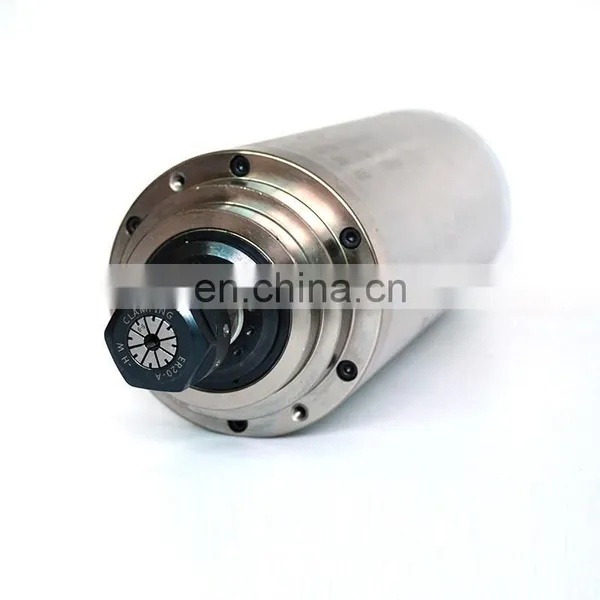

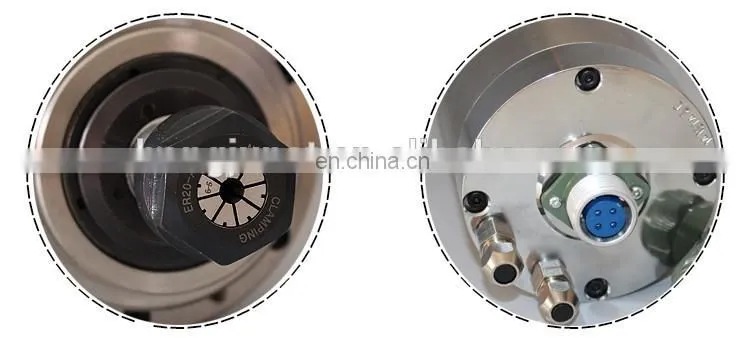

Collet(mm) |
ER20(standard size 6MM diameter) |
Repair time |
Bearing(half year), spindle(one year) |

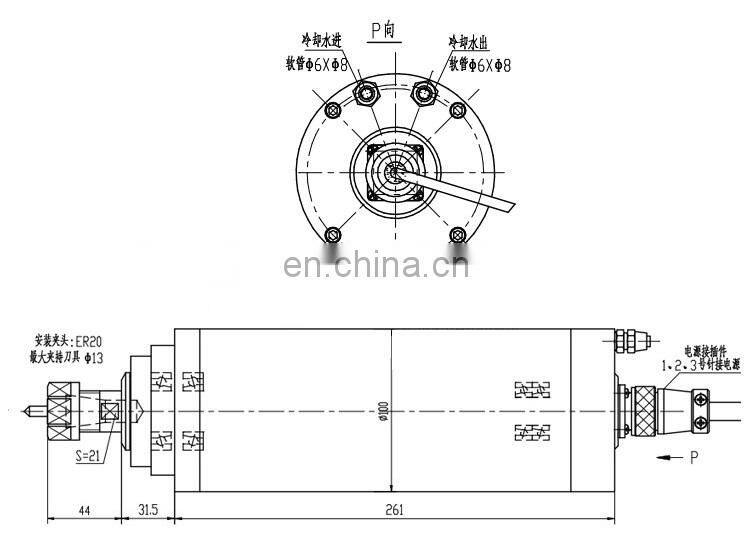

Size |
125mmx260mm |
VFD Connection
Main spindle motor,So if u need other spindle motor.you also buy them from me.
1.water cooled spindle motor:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooled spindle motor: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.air cooled ATC spindle motor:4.5kw,7.5kw,9kw
4.water cooled ATC spindle motor:1.5kw,2.2kw,5.5kw,6kw,7.5kw
We can provide all the spindle motor parts if you have more needs. We can give you more advice

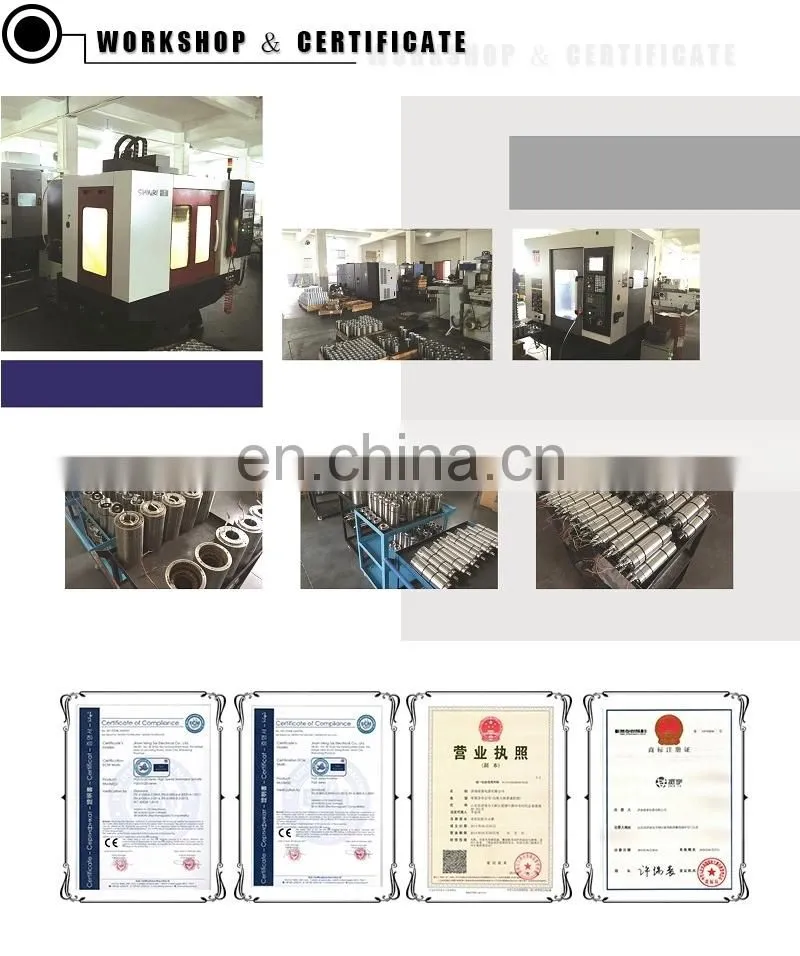

SICHUAN HONGJUN SCIENCE AND TECHNOLOGY CO., LTD.
SICHUAN HONGJUN SCIENCE AND TECHNOLOGY CO., LTD is pressional and technology manfacture of high speedspindle motor. with 20 years production experience.
Our main spindle motor are water cooled spindles, air cooled spindles, ATC spindles, and edge bander spindles. Our products are widely used in grinding, Engraving, CNC drilling machine.
We welcome your coming at any time for bussiness cooperation.
For more than a decade, it has been well received by all supporting users. The products have been exported to many countries in Europe and America. In particular, the air-cooled spindle motor series is the company's patented product. In 2007, it has applied for and registered as a patent to the national patent office.
How about the warrantly about your company?
bearings=half a year, other parts a year
Which kinds of bearing you are using?
It will according to your order. We have different price range for you with different bearing.

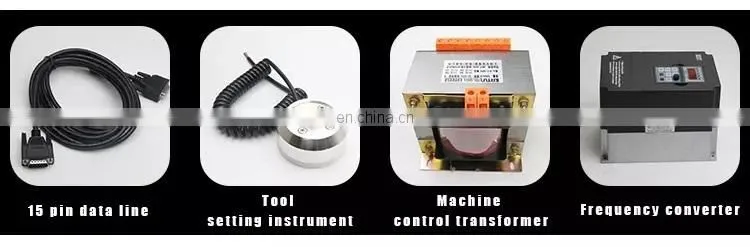

Do you have other spare parts for spindle motor, just like gripper, VFD, collet ?
We have all kits.And we can let engineers help you to program them.
Can I visit your factory?
Yes, welcome to our factory.
Do you have installation page?
Yes,we have.
Can you show me the inspection report ?
Yes We will send you inspection report of spindle after you send me full money before despatch.
The reasen is that I'm not sure which spindle will be sent to you.Every spindle have it's inspection report .And they are different in details.Only if you pay the money,we can decide which spindle to deliver you.
