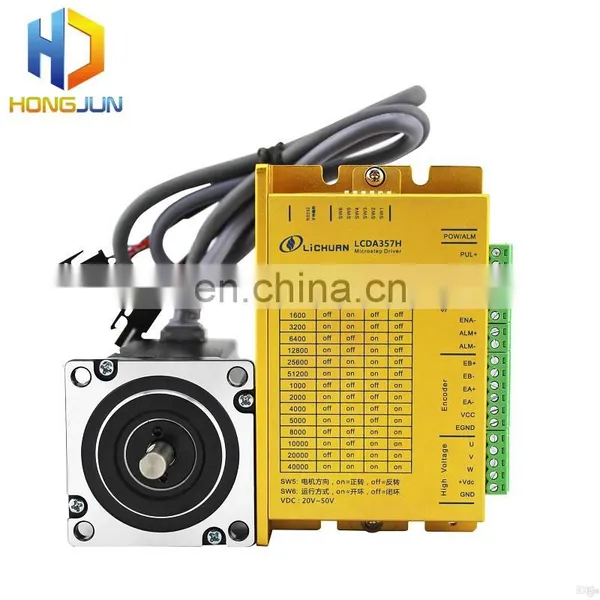

HONGJUN 3N.m 57mm 3phase DC20-50V Nema23 closed loop stepper motor driver
Product Name: 57 Nema23 closed loop hybrid motor
Three-phase 57 series closed-loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance. To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 77mm ~ 122mm between the torque range: 1N.m ~ 3N.m, motor shaft diameter 8mm.
1.Electrical Specifications
| Motor Model | LC57H3100 | Brand | Hongjun |
| Frame Size | 57mm * 57mm | Highest speed | 1200 rpm |
| Motor Length | 100mm | No of encoder | 1000 |
| Holding Torque | 3 N.M | Shaft Diameter | 8 mm |
| Weight | 1.8 kg | Matched Driver | LCDA357H |
Notes: The above is only for representative products, We can according to customer requirements to remake.
2.Dimensions
3.Product Image
4.Wiring Method
Product Name: LCDA357H 3 Phase Nema23 closed-loop
LCDA357H using the latest dedicated motor control DSP chip and vector closed-loop control technology, completely overcome the open-loop stepper motor stepped the problem, while significantly enhance the motor high-speed performance, reduce motor heating and reduce motor vibration, improve machine processing speed and accuracy, Machine energy consumption. This drive is suitable for installation of the motor size is fully compatible with 57 series stepper motor to facilitate the traditional step-by-step drive program upgrade, the cost of a great drop.
1.Electrical Specifications
Features:
1. Voltage input range: 18V ~ 50VDC
2. Maximum peak current: 7A
3. Subdivision range: 200 ~ 51200ppr
4. Signal input: differential / single-ended, pulse / direction
5. Impulse response limit frequency: 200KHZ
6. Power-on parameter auto-tuning function
7. Closed-loop vector control to ensure that the motor high-speed high-torque output, while ensuring that the motor does not lose step
8. With over-voltage, over-current, tracking error tolerance and other protection
2.Product Image
3.Wiring Method
Suitable for all kinds of motion control automation equipment and instruments, such as: electronic processing and testing, semiconductor packaging, laser cutting and welding, laser phototypesetting, packaging machinery, engraving machine, marking machine, cutting machine, garment plotter, CNC machine tools, automation Assembly equipment and so on. Is the user expect low noise, high-speed performance and cost-effective competition in the field of choice
Lichuan was founded in 2009, is a high-tech enterprise engaged in industrial automation and control product development, production and selling ,sale-after service .
We are committed to R & D and produces about 100 varieties of servo motor and drivers, stepper motor and drivers, precision planetary reducer, five series of products with powerful software, excellent quality performance for many years to maintain the forefront of industry production and sales, selling at home and abroad market. At present, the company has developed into one of the leading manufacturers of China motion control industry.
Our servo products have been the majority of machine tool manufacturing industry customers’ use, the field of mass use are: CNC machine tools, textile machinery, packaging machinery, printing machinery, winding machine, spring machine, bending machine, etc. With the help of the company's strong sales and service network, more and more machine tools and mechanical equipment manufacturers choose Lichuan servo stepper as their designated ancillary products, to establish a long-term and stable cooperative relationship with our company.
We adhering to the "ultimate requirements of products, the pursuit of excellence concept, adhere to the times, pioneering and innovative style; the pursuit of quality first, service first" philosophy, provides the most economical, exquisite and stable products to create efficient and high-quality customer service team, to create the greatest value for the majority of equipment manufacturers and end customers.
