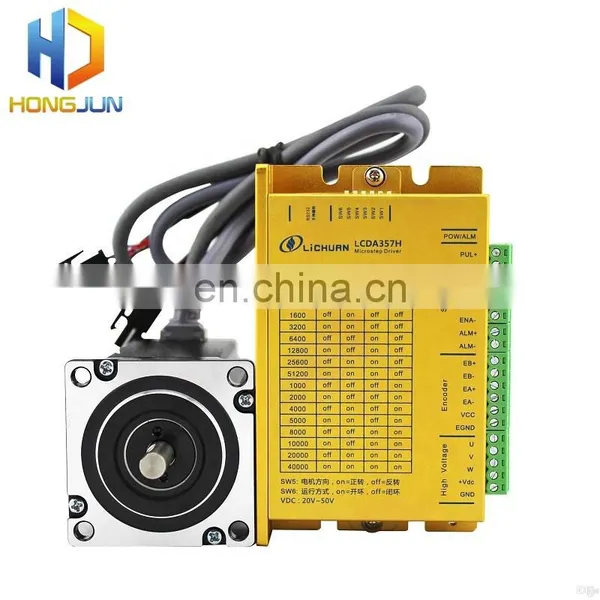

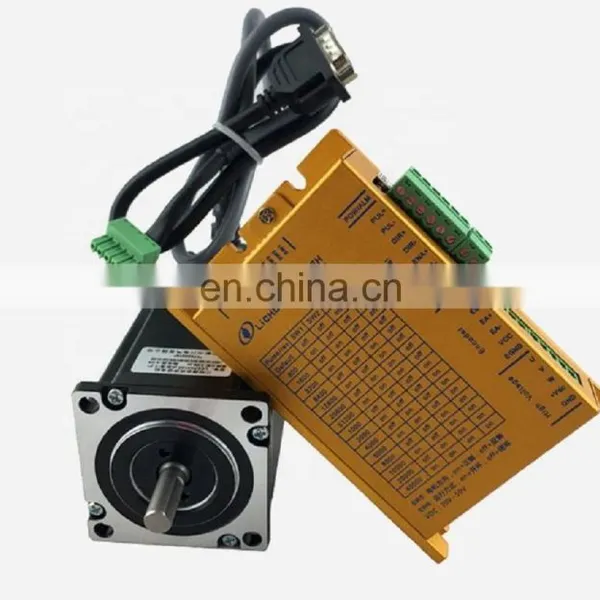

HOT HONGJUN 3phase 1Nm NEMA23 Closed Loop Stepper Servo Motor Driver Kit LCDA357H+LC57H355

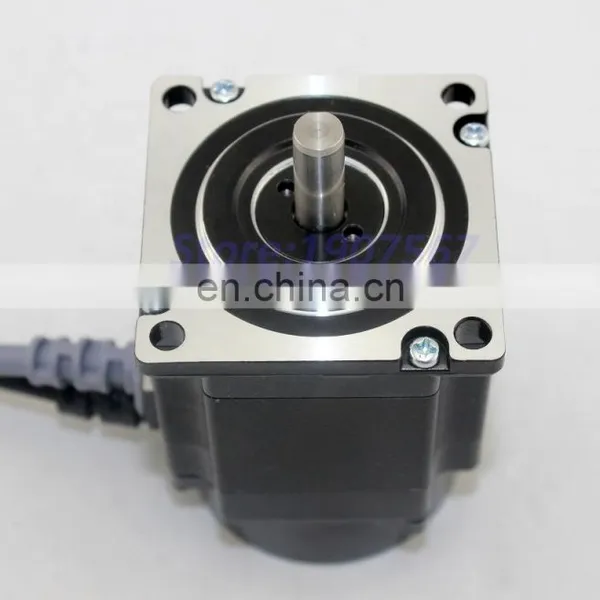

Product Name: 57 Nema23 closed loop hybrid motor

Three-phase 57 series closed-loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance. To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 77mm ~ 122mm between the torque range: 1N.m ~ 3N.m, motor shaft diameter 8mm.

1.Electrical Specifications

Notes: The above is only for representative products, We can according to customer requirements to remake.

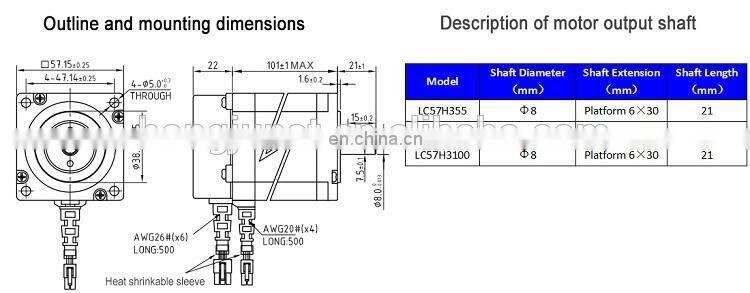

2.Dimensions

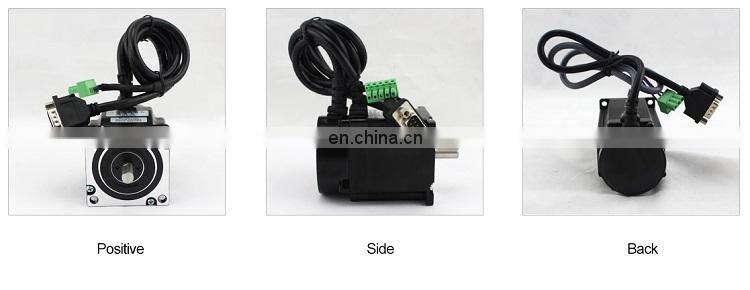

3.Product Image

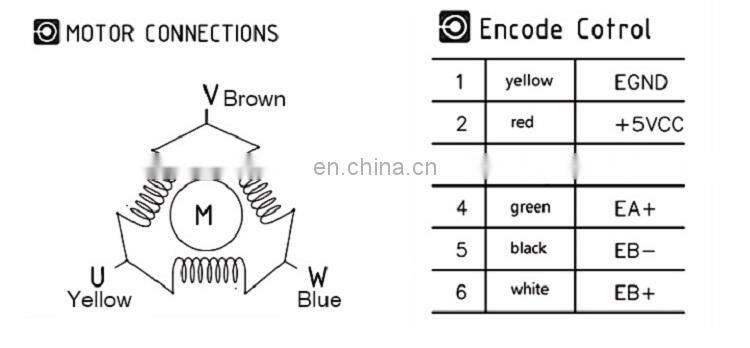

4.Wiring Method

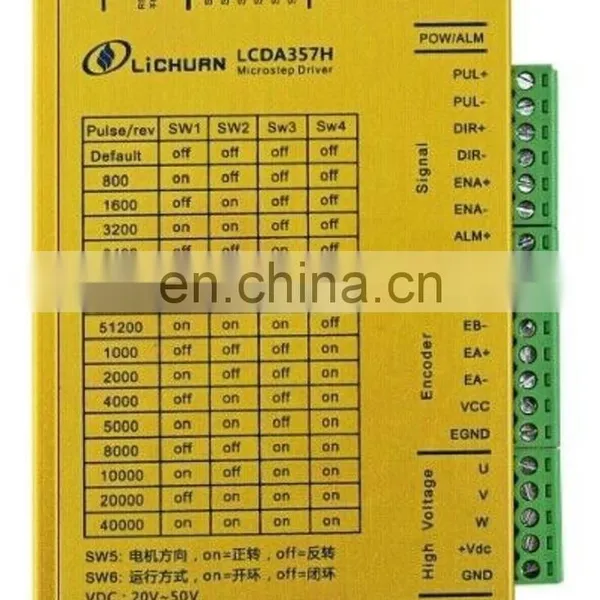

Product Name: LCDA357H 3 Phase Nema23 closed-loop

LCDA357H using the latest dedicated motor control DSP chip and vector closed-loop control technology, completely overcome the open-loop stepper motor stepped the problem, while significantly enhance the motor high-speed performance, reduce motor heating and reduce motor vibration, improve machine processing speed and accuracy, Machine energy consumption. This drive is suitable for installation of the motor size is fully compatible with 57 series stepper motor to facilitate the traditional step-by-step drive program upgrade, the cost of a great drop.

1.Electrical Specifications

Features:

1. Voltage input range: 18V ~ 50VDC
2. Maximum peak current: 7A
3. Subdivision range: 200 ~ 51200ppr
4. Signal input: differential / single-ended, pulse / direction
5. Impulse response limit frequency: 200KHZ
6. Power-on parameter auto-tuning function
7. Closed-loop vector control to ensure that the motor high-speed high-torque output, while ensuring that the motor does not lose step
8. With over-voltage, over-current, tracking error tolerance and other protection

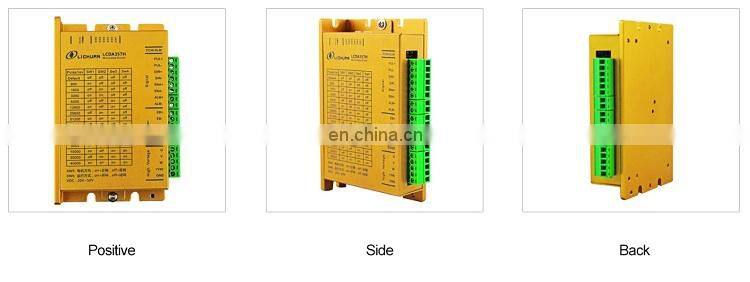

2.Product Image

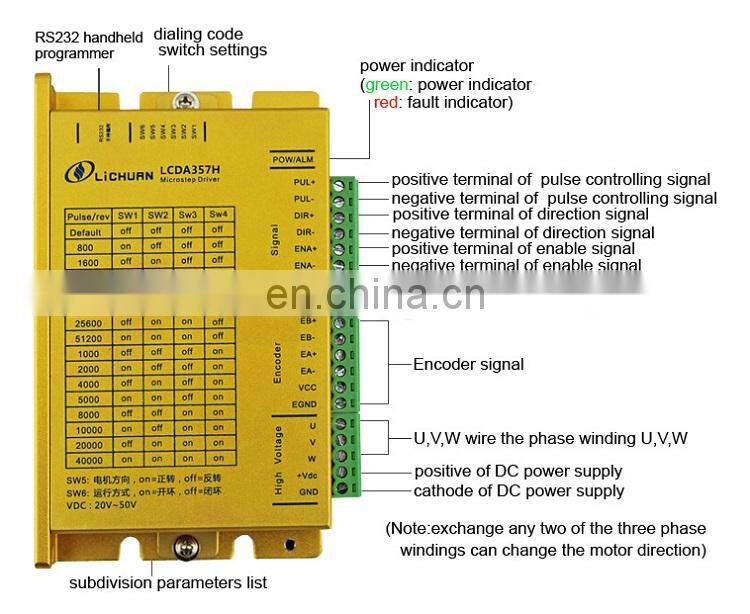

3.Wiring Method

  Suitable for all kinds of motion control automation equipment and instruments, such as: electronic processing and testing, semiconductor packaging, laser cutting and welding, laser phototypesetting, packaging machinery, engraving machine, marking machine, cutting machine, garment plotter, CNC machine tools, automation Assembly equipment and so on. Is the user expect low noise, high-speed performance and cost-effective competition in the field of choice
