Leadshine NEMA 11 stepper motor 28CM010
2 phase, NEMA 11 frame size
41 mm (1.26 inch) long
1.2 A phase current
0.1 N.m (9 oz-in) holding torque
4.5 mm (0.177 inch) shaft size
Built with high quality materials including bearings and shaft made by Japanese manufacturers
High precision, low motor heating, and low vibration
The 28CM010 is a 2 phase NEMA 11 stepper motor with 0.06 N.m (9 oz-in) holding torque. It can be implemented in many Industrial motion control applications. Built with premium quality materials including bearings and shaft made by Japanese manufacturers, this 28CM006 stepper motor can move the attached load at high precision and with very low motor heating & vibration.
The 20CM003 is a 2 phase NEMA 8 stepper motor with 0.05 N.m (7 oz-in) holding torque. It can be implemented in many Industrial motion control applications. Built with premium quality materials including bearings and shaft made by Japanese manufacturers, this 20CM005 stepper motor can move the attached load at high precision and with very low motor heating & vibration.
1, General specifications
Step angle | 1.8° |
Step angle accuracy | ±0.09° (no load, full step) |
Temperature rise | MAX 85K |
Use environment | Temperature: -10~+50°C; Humidity: 85% max |
Insulation grade | B |
Insulation resistance | MIN 100 MΩ,500 V DC |
Withstand voltage | 500 VAC,1 min |
Radial runout | 0.025 mm MAX (load 5N) |
Axial runout | 0.075 mm MAX (load 10N) |
Radial maximum load | 50N (10mm from the flange surface) |
Axial maximum load | Motor weight |
2.Technical specifications
Length mm | model | Static moment | Rated current | Resistance/phase | Inductance / phase | Rotor inertia |
N.m | A | Ω | mH | g.cm2 | ||
32 | 28CM006 | 0.06 | 0.9 | 1.4 | 1.0 | 9 |
41 | 28CM010 | 0.1 | 0.9 | 1.8 | 1.6 | 13 |
51 | 28CM013 | 0.13 | 0.9 | 2.2 | 2.3 | 18 |

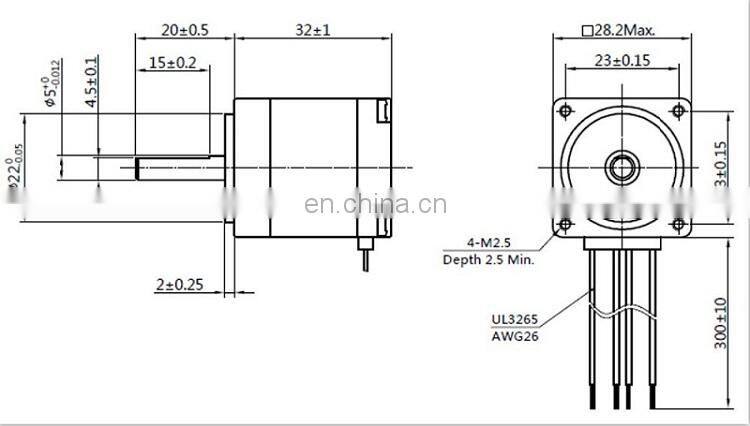

4.Dimension

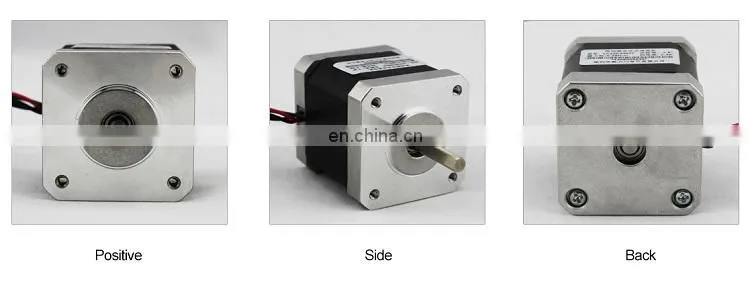

3.Product Image
4.Wiring Method
Suitable for all kinds of motion control automation equipment and instruments, such as: electronic processing and testing, semiconductor packaging, laser cutting and welding, laser phototypesetting, packaging machinery, engraving machine, marking machine, cutting machine, garment plotter, CNC machine tools, automation Assembly equipment and so on. Is the user expect low noise, high-speed performance and cost-effective competition in the field of choice
Lichuan was founded in 2009, is a high-tech enterprise engaged in industrial automation and control product development, production and selling ,sale-after service .
We are committed to R & D and produces about 100 varieties of servo motor and drivers, stepper motor and drivers, precision planetary reducer, five series of products with powerful software, excellent quality performance for many years to maintain the forefront of industry production and sales, selling at home and abroad market. At present, the company has developed into one of the leading manufacturers of China motion control industry.
Our servo products have been the majority of machine tool manufacturing industry customers’ use, the field of mass use are: CNC machine tools, textile machinery, packaging machinery, printing machinery, winding machine, spring machine, bending machine, etc. With the help of the company's strong sales and service network, more and more machine tools and mechanical equipment manufacturers choose Lichuan servo stepper as their designated ancillary products, to establish a long-term and stable cooperative relationship with our company.
We adhering to the "ultimate requirements of products, the pursuit of excellence concept, adhere to the times, pioneering and innovative style; the pursuit of quality first, service first" philosophy, provides the most economical, exquisite and stable products to create efficient and high-quality customer service team, to create the greatest value for the majority of equipment manufacturers and end customers.
