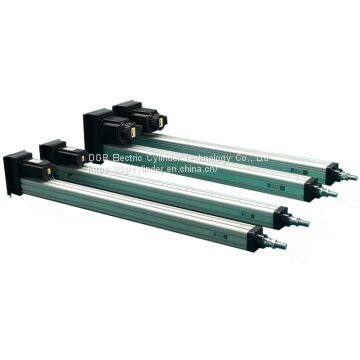

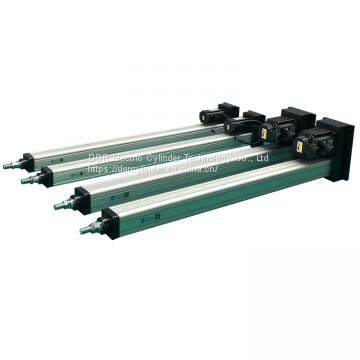

waterproof high IP grade telescopic linear actuator

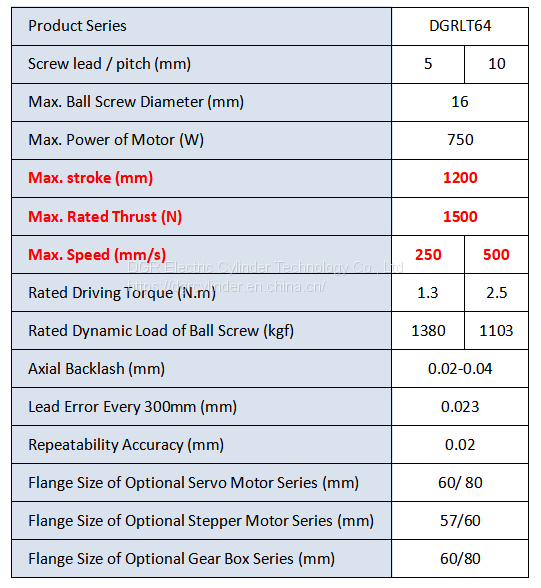

Technical Data

Note:

1.If you need to know the ball screw life, please contact customer service for detailed consultation;

2.The max. thrust and the max. speed can not be reached at the same time. Different motor and gearboxes will be used.

3.If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;

Note: If the above parameters can not meet your needs, please contact us, we can customize according to your requirements with NO MOQ.

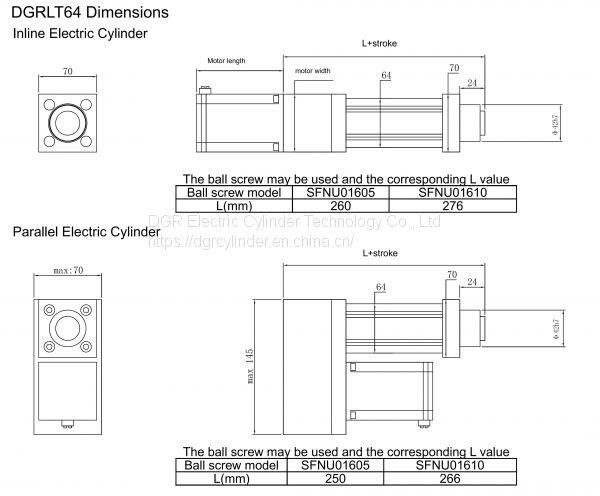

Dimension

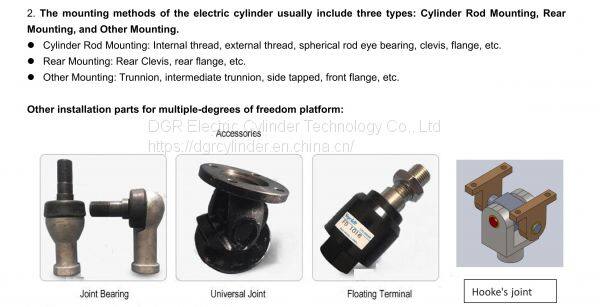

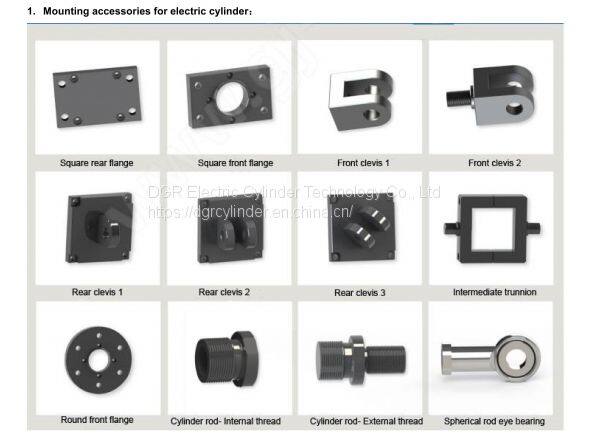

Mounting Methods and Accessories

Features

High Accuracy

Precise position control with repeatability of up to 0.02mm.

High Reliability

Multiple, multiple security measures

Long Life

Run over a distance of 100,000km

Wide Thrust Range

Select famous branded rollerball screws, ball screws, and lead screws which are made of high-quality materials for our electric cylinders in order to reach double the theoretical rated push-pull force.

Careful Material Selection

1. Use round carbon steel as the cylinder material

2. Select sensor components of internationally famous brands.

3. Key components are made of high-quality materials and processed with vacuum heat treatment or surface treatment (including coating, azotizing, oxidation)

4. Select branded bearings and gears to achieve the best mechanical performance in mechanical structure

5. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.

Refined Design and Processing

1. The connection between the screw nut and the piston rod is rigid

2. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.

3. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.

4. Adopt domestic ball screw and bearing products, light load output, high-cost performance

5. All heavy-duty cylinders use sliding key guides. (The square cylinders are using guided rod)

Duty Cycle

Ball screws are used for the frequent operation of electric cylinders, the duty cycle is ensured to be greater than 50% or continuous operation.

Complete Testing

Professional and detailed factory testing: appearance, stroke, noise decibel.

Excellent Service

1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including handling product failure, providing spare parts and technical support)

2. DGR Electric cylinder can be custom engineered for the customer’s particular application.

3. All customer requirements will be responded to within 12 hours

Wide Selection of Motors

Can choose AC motor, DC motor, stepper motor, servo motor.

Company Profile

Shenzhen Dagongren Electric Cylinder Technology Co., Ltd is a high-tech innovative private enterprise specialized in designing and manufacturing linear motion products, including servo motor electric cylinders, stepper motor electric cylinders, linear actuators, multidegree of freedom platforms, synchronization lifting platforms, VR simulators, etc. Since January 2014, Shenzhen Dagongren Electric Cylinder Technology Co., Ltd has introduced advanced technology and hired senior mechanical motion engineers for researching and developing linear motion system, the electric cylinder developed by the company featured high positioning accuracy, low noise, and long life. Our products have been widely used for industries like automated warehousing, robotics, automation equipment, medical equipment, and AGV, vehicles, etc. It has received compliments from many famous enterprises worldwide.

Packing&Shipping

FAQ

Q1. What are your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown wooden cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before shipping. We'll show you the photos of the products and packages before

you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?

A: Generally, it will take 10-25 days to produce the products, and 5days by air, 25 days of the ship by sea. The specific delivery time depends on the items and the quantity of your order.

Q5: How is the warranty system?

A: 1~5 years. (upon the deal)

Q6. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?

A: We can supply the sample, but the customers have to pay the sample cost and the courier cost.

Q8. Do you test all your goods before delivery?

A: Yes, we have a 100% test before delivery.
