Manufacturers of High Quality for Fleet Management of the 7-inch Vehicle GPS Display Android 9.0 4G Navigation and Positioning Terminal Tablet

Shenzhen Saintway Technology CO., LTD.,
Manufacturers of High Quality for Fleet Management of the 7-inch Vehicle GPS Display Android 9.0 4G Navigation and Positioning Terminal Tablet thumbnail-1
Manufacturers of High Quality for Fleet Management of the 7-inch Vehicle GPS Display Android 9.0 4G Navigation and Positioning Terminal Tablet thumbnail-2
Manufacturers of High Quality for Fleet Management of the 7-inch Vehicle GPS Display Android 9.0 4G Navigation and Positioning Terminal Tablet thumbnail-3
Manufacturers of High Quality for Fleet Management of the 7-inch Vehicle GPS Display Android 9.0 4G Navigation and Positioning Terminal Tablet thumbnail-4
Manufacturers of High Quality for Fleet Management of the 7-inch Vehicle GPS Display Android 9.0 4G Navigation and Positioning Terminal Tablet thumbnail-5
Manufacturers of High Quality for Fleet Management of the 7-inch Vehicle GPS Display Android 9.0 4G Navigation and Positioning Terminal Tablet photo-1
Manufacturers of High Quality for Fleet Management of the 7-inch Vehicle GPS Display Android 9.0 4G Navigation and Positioning Terminal Tablet photo-2
Manufacturers of High Quality for Fleet Management of the 7-inch Vehicle GPS Display Android 9.0 4G Navigation and Positioning Terminal Tablet photo-3
Manufacturers of High Quality for Fleet Management of the 7-inch Vehicle GPS Display Android 9.0 4G Navigation and Positioning Terminal Tablet photo-4
Manufacturers of High Quality for Fleet Management of the 7-inch Vehicle GPS Display Android 9.0 4G Navigation and Positioning Terminal Tablet photo-5
US$ 214.56 - 286.08 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Saintway
Place of Origin:
China
Model Number:
Q77
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Saintway
Place of Origin China
Model Number Q77

Introduction

Q77 is an IP65 grade Android-based 7-inch mobile data terminal which is powered by Qualcomm Octa-core ARM Cortex-A53 with processing speeds up to 1.8 GHz. This device integrates a variety of wireless communication modules such as WIFI, Bluetooth, 4G cellular and GPS. For more peripheral devices, it has a pigtail cable to meet various I/O interfaces, like GPIO, OBD, RS232, RS422/RS485, etc. It is also a suitable terminal for more customized applications: fleet management, taxi dispatch, intelligent industrial control, HMI (Human Machine Interface) terminals, etc.


Features

• Qualcomm Octa-core ARM Cortex-A53 64-bit CPU @1.8GHz

• Integrated Adreno 506GPU, up to 600MHz

• 7 inch TFRLCD screen with capacitive multi-touch panel

• Android 9.0 operating system

• Built-in WiFi, Bluetooth, NFC and 4G cellular modules

• Built-in GPS+GLONASS+BEIDOU module for positioning

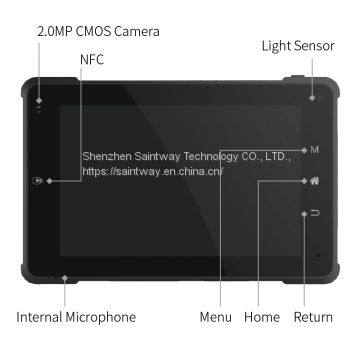

• Built-in 2.0MP CMOS front camera, 5.0MP CMOS back camera

• Built-in 3.7V 5000mAH Poly-lion battery

• Extended I/O interfaces DC in with OTG, GPIO, OBD, RS232, RS422/RS485

• Flexible mounting with Portable vehicle mounted Bracket or 75mm VESA

Bracket

Specification


Processor

Octa-core ARM Cortex-A53 64-bit CPU @ 1.8GHz

Graphics
Integrated Adreno 304 GPU, up to 400MHz
RAM
2GB DDR3 (2GB optional)
ROM
16GB eMMC Flash (32GB optional)
OS
Android 9.0
LCD Panel
7-inch TFT-LCD, LED backlight
Resolution
1280 x 800
Brightness
300nits (typical)
Contrast Ratio
800:1
View Angle (º)
80/80(L/R), 80/80(U/D)
Touch Panel
G+G multi-touch capacitive touch panel
WiFi
IEEE 802.11a/b/g/n, 2.4GHz & 5GHz
Bluetooth
Class 2, Ver 4.0
Cellular
4G Full Netcom, SC20-E/-A/-AU/-J (optional, different versions support different bands)
Positioning
Integrated GPS + GLONASS + BEIDOU
Camera
2.0MP CMOS front camera + 5.0MP CMOS back camera
NFC
Built-in
G-sensor
Built-in
Light Sensor
Built-in
Compass
Built-in
Gyroscope
Built-in
Speaker
Built-in stereo speaker
Video
Encode: 30fps 720P (H.264), 30fps WVGA (MPEG-4/VP8)
Audio
MP3/AAC/AAC+/eAAC/AMR-NB/-WB/G.711/WMA 9/10 Pro

Onboard I/O Ports
1 x TF card slot,
1 x SIM card slot,
1 x OTG (YTPE-C ),
1 x Combo Audio Jack (audio+mic)


Extended I/O Ports
1 x POGO PIN (optional),
1 x RS422 (RS485 optional),
1 x OBD-II (Share the same interface with RS232, serial port will be occupied),

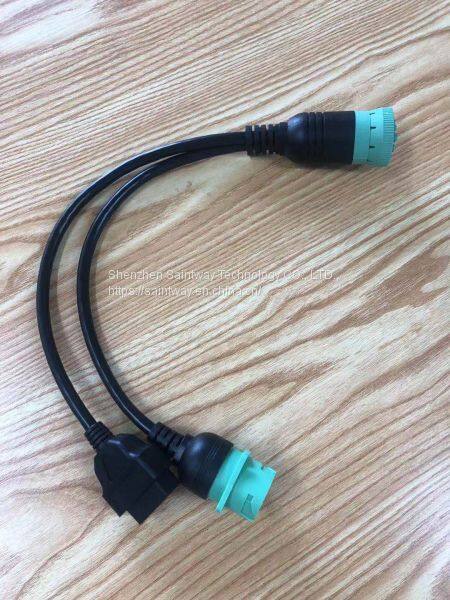

1 x J1939(optional),
4 x GPIO (input*2, output*2),
1 x DC in (9~36V),
1 x ACC Input
Function Key
Power, Menu, Home, Return
Power Light
LED light
Power Supply
12V DC (9~36V) (DC in)
Battery
3.7V 5000mAh, Poly-lion (run-time up to 3 hours)
Power Consumption
≤6W (normal mode), ≤8W (charging mode)
Operating Temp.
-10° C ~ 60° C
Storage Temp.
-20° C ~ 70° C
IP Rating
IP65
Dimensions
200W x 130H x 20D mm
Weight
0.47kg

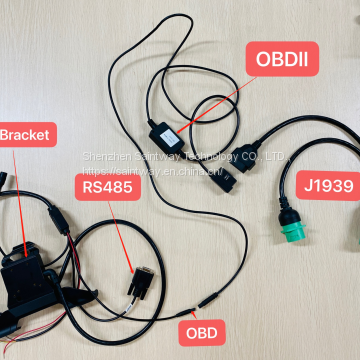

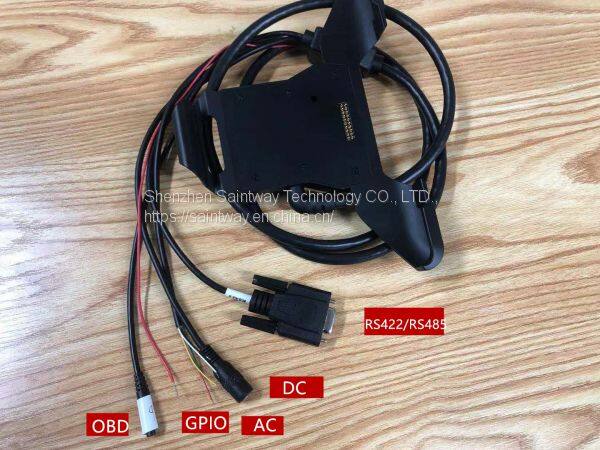

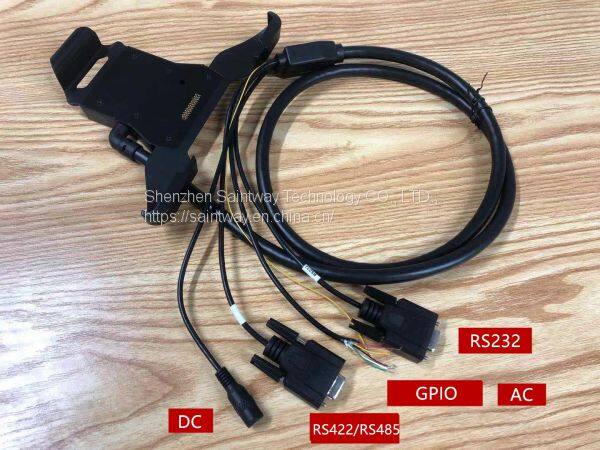

Pigtail Cable
DC in,
ACC,GPIO x 4,
OBD x 1,
RS232 x 1 (optional),
RS422/RS485 x 1
Charger
AC adaptor or car power adaptor

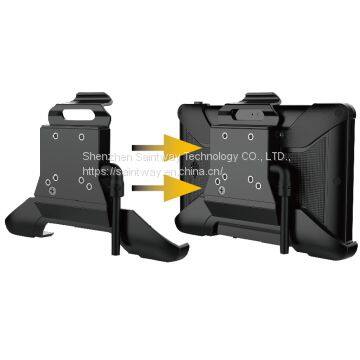

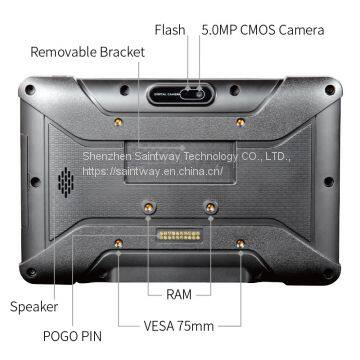

Mounting
RAM or 75mm VESA bracket
